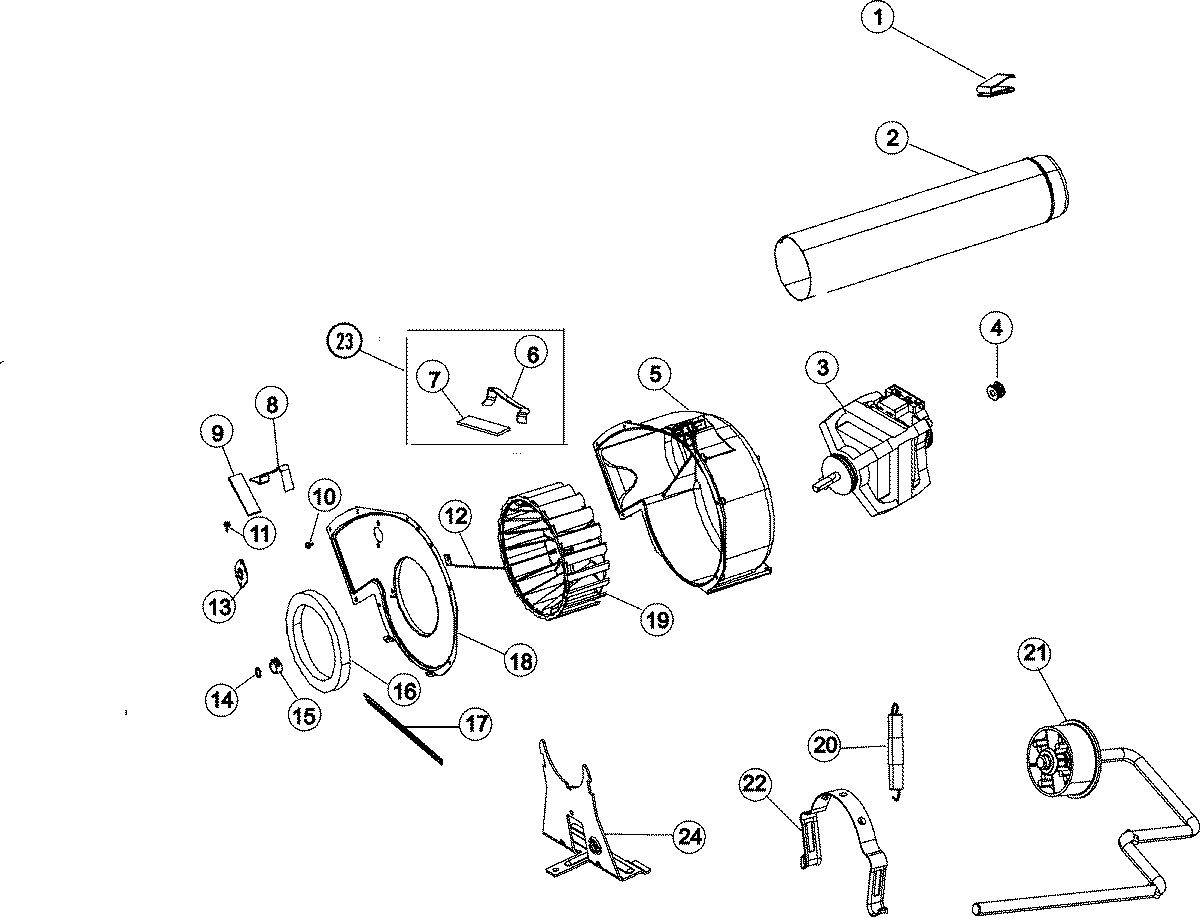

CDE8500AZW 06 – MOTOR & DRIVE

Products

Position	Product
1	MAY 31001572
2	MAY 53-0134
3	W10410996 Whirlpool Dryer Drive Motor
4	WP31001535 Whirlpool Pulley Motor
5	MAY 53-1801
6	WP31001470 Whirlpool Glide Assembly
8	WP31001469 Whirlpool Glide Assembly
9	WP31001356 Whirlpool Glide Pad
10	MAY 31001267
11	MAY 25-7890
12	MAY 53-1026
13	MAY 31001088
13	THERMOSTAT
14	MAY 25-7855
15	MAY 25-7823
16	MAY 31001541
17	MAY 53-1625
18	MAY 53-1934
19	WHEEL
20	31001465 Whirlpool Idler Spring
21	MAY 31001710
22	WP660658 Whirlpool Clamp
23	LA-1006 Whirlpool Dryer Right Hand Glide Kit
24	MAY 31001570
