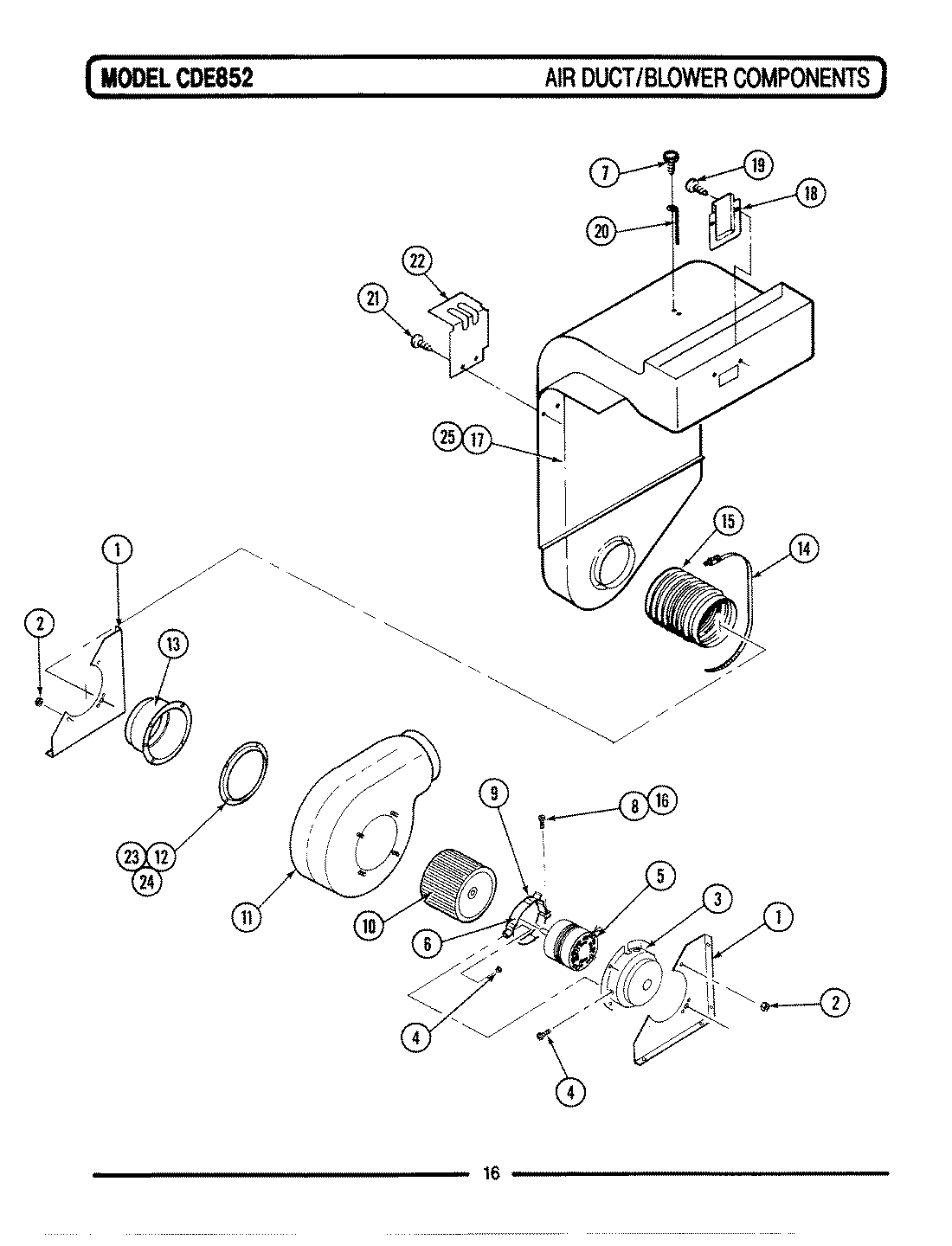

CDE852 02 – AIR DUCT/BLOWER COMPONENTS

Products

Position	Product
1	WP3801F631-51 Whirlpool Mounting Bracket
2	WPY707702 Whirlpool Locknut
3	MAY Y704760
5	MAY Y704759
5	MAY Y715957
6	MAY Y707393
7	WP90767 Whirlpool Screw
8	MAY Y707402
9	MAY Y708926
10	WPY707985 Whirlpool Wheel Assembly
11	MAY 712008
12	MAY Y704758
13	MAY Y702296
14	MAY Y702331
15	MAY Y702326
16	MAY 707161
17	MAY 712025
18	MAY Y702475
19	MAY Y707347
20	MAY Y702656
22	MAY Y702733
22	MAY Y702696
22	MAY 702735
22	MAY 702183
22	MAY Y715290
23	MAY Y704761
24	8038P003-60 Whirlpool Retainer
25	MAY Y700556
