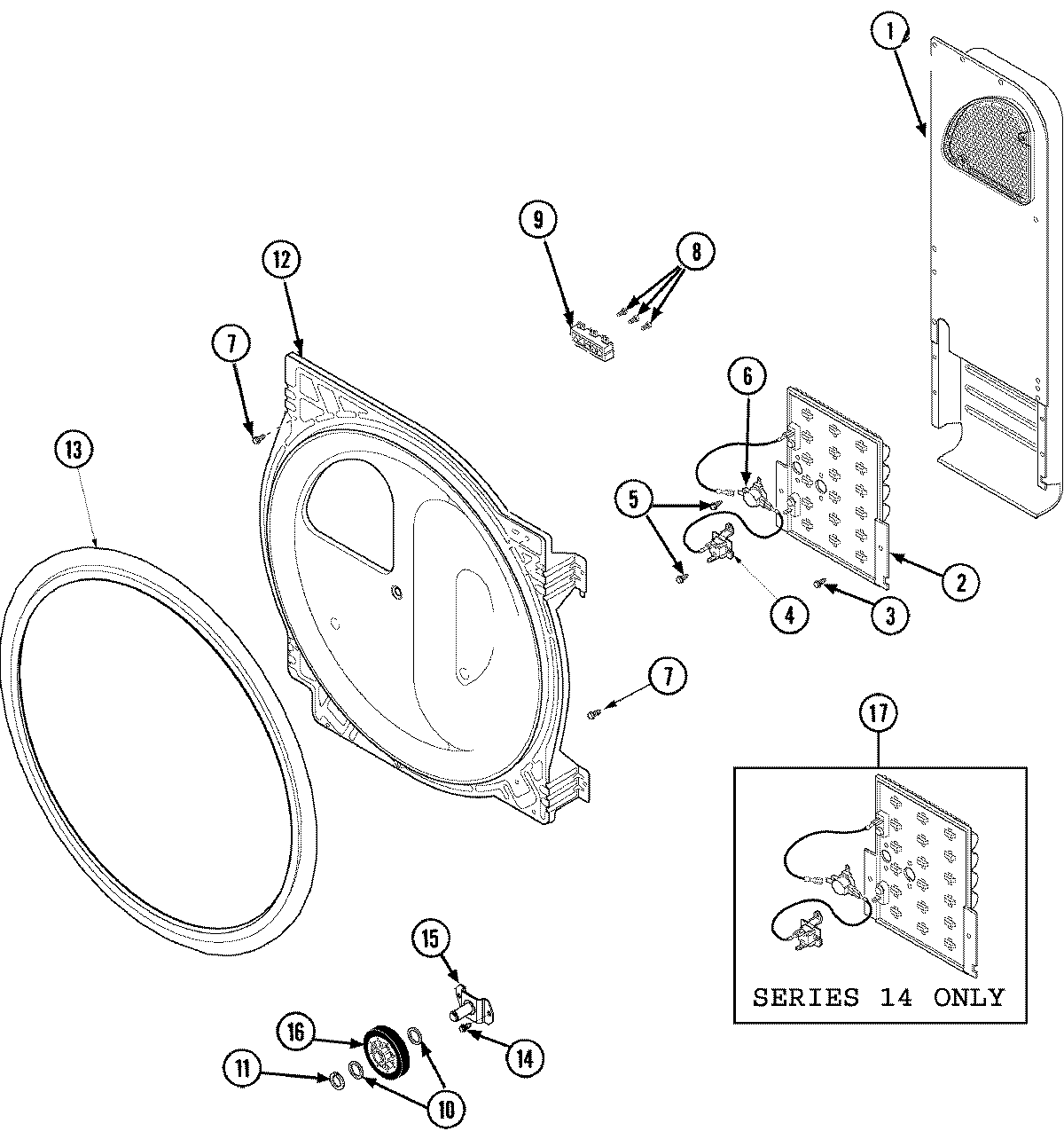

CDE9500W 06 – REAR BLKHD, AIR DUCT, ROLLER&HTR (ELE)

Products

Position	Product
1	MAY 503605
2	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
2	WPY503978 Whirlpool Heating Element
4	MAY 40113801
5	WP3177991 Whirlpool Screw
6	WPW10116735 Whirlpool Dryer High Limit Thermostat
6	37001139 Whirlpool Element Repair Kit 5300W
7	MAY 20530
8	MAY Y61199
9	MAY 61923
10	MAY 52549
11	MAY 23748
12	MAY 502614WP
13	WP37001132 Whirlpool Felt Seal
14	WP3390631 Whirlpool Screw
15	WP40113601 Whirlpool Dishwasher Roller Bracket
16	WP37001042 Whirlpool Dryer Drum Support Roller
