CDE9505AZW 02 – CABINET & FRONT PANEL – Aparts

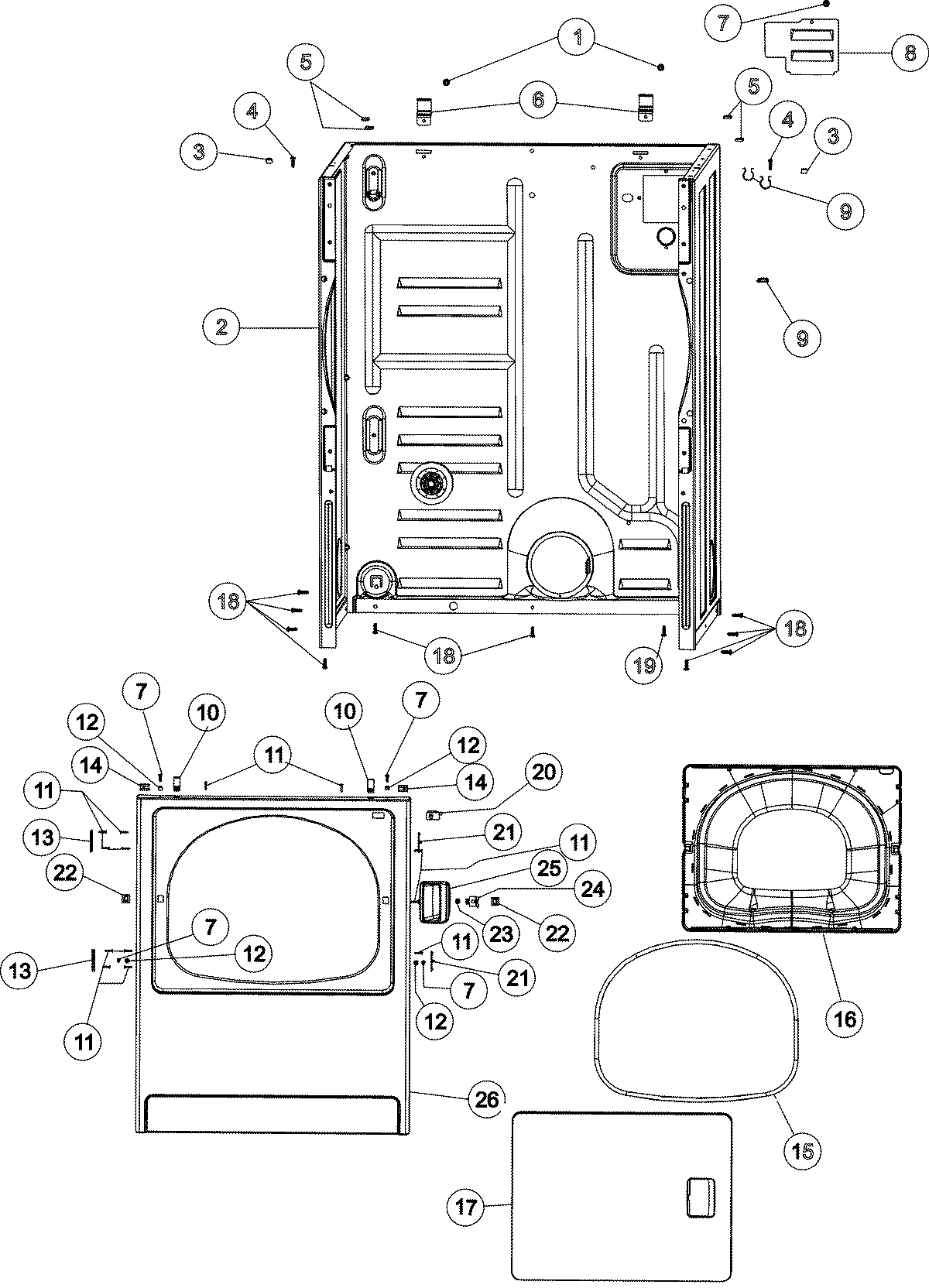

CDE9505AZW 02 – CABINET & FRONT PANEL

Products

Position	Product
1	WP3390631 Whirlpool Screw
2	MAY 37001155
5	MAY Y56128
6	MAY 500003
7	MAY 32671
8	MAY 503293
9	MAY 504034
10	WP25-7220 Whirlpool Cabinet Clip
11	MAY 37001030
12	MAY 505187
14	MAY 213280
15	MAY 504005
16	MAY 37001028
17	MAY 37001029
18	WP27001200 Whirlpool Screw
19	MAY 20530
20	W10169313 Whirlpool Door Switch Kit
21	MAY 503126
22	MAY 54660
23	MAY 500039
24	MAY 40116201
26	MAY 37001154
