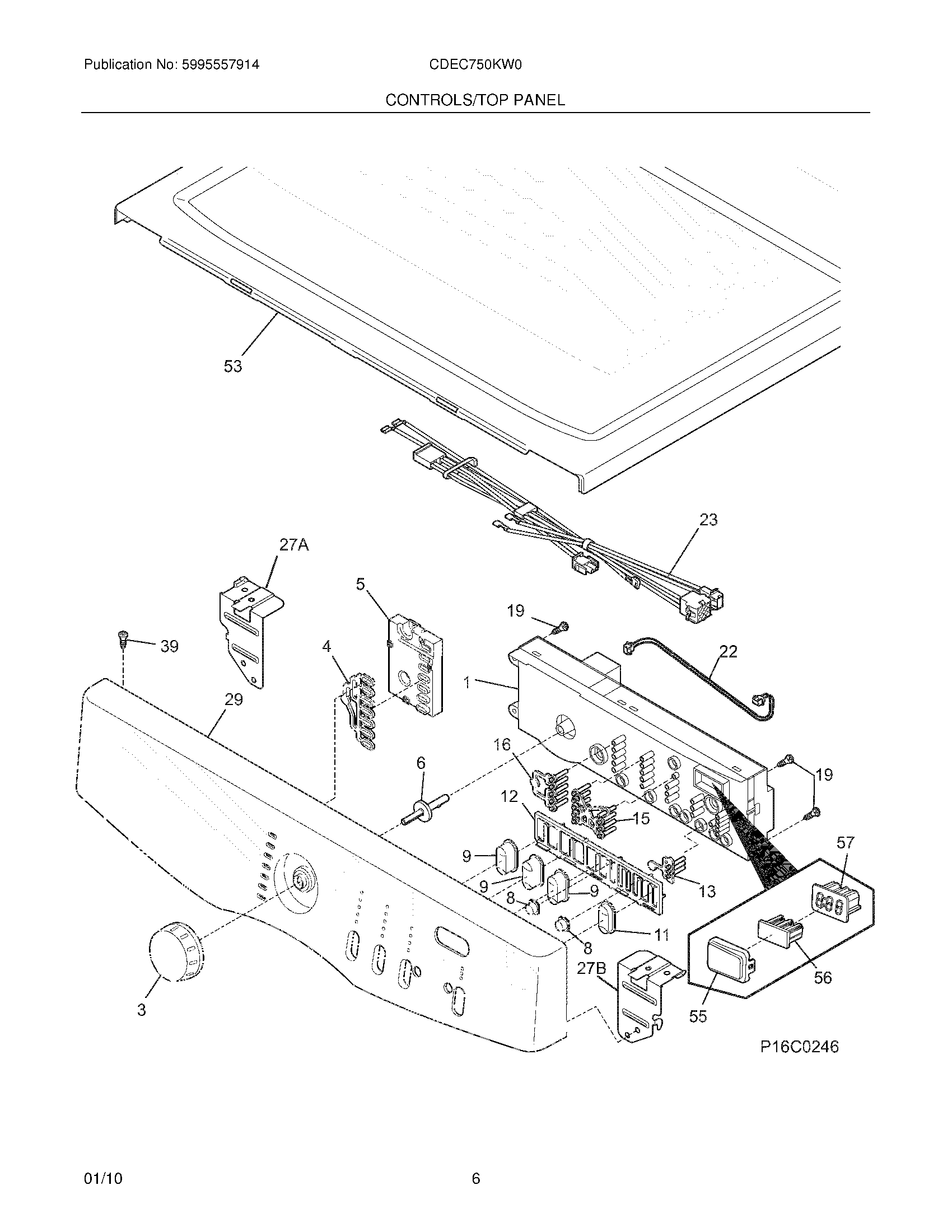

CDEC750KW0 07 – CONTROLS/TOP PANEL

Products

Position	Product
NI	WCI 137223700
NI	WCI 137112100
NI	137150200 Frigidaire Terminal
NI	WCI 134910200
1	137070800 Frigidaire Electrical Control Net
3	WCI 134551225
4	WCI 134553100
5	134556500NH Frigidaire UIB
6	WCI 134347700
8	WCI 134555525
9	WCI 134553425
11	WCI 134864400
12	WCI 134884900
13	WCI 134557501
15	WCI 134552800
16	WCI 134600000
19	134402900 Frigidaire Screw
22	WCI 134602100
23	WCI 137033500
27A	134710900 Frigidaire Bracket Assembly
27B	134711000 Frigidaire Bracket
29	WCI 137234200
39	131205100 Frigidaire Screw
53	137371700 Frigidaire Panel
55	WCI 134553200
56	WCI 134557300
57	WCI 134503300
