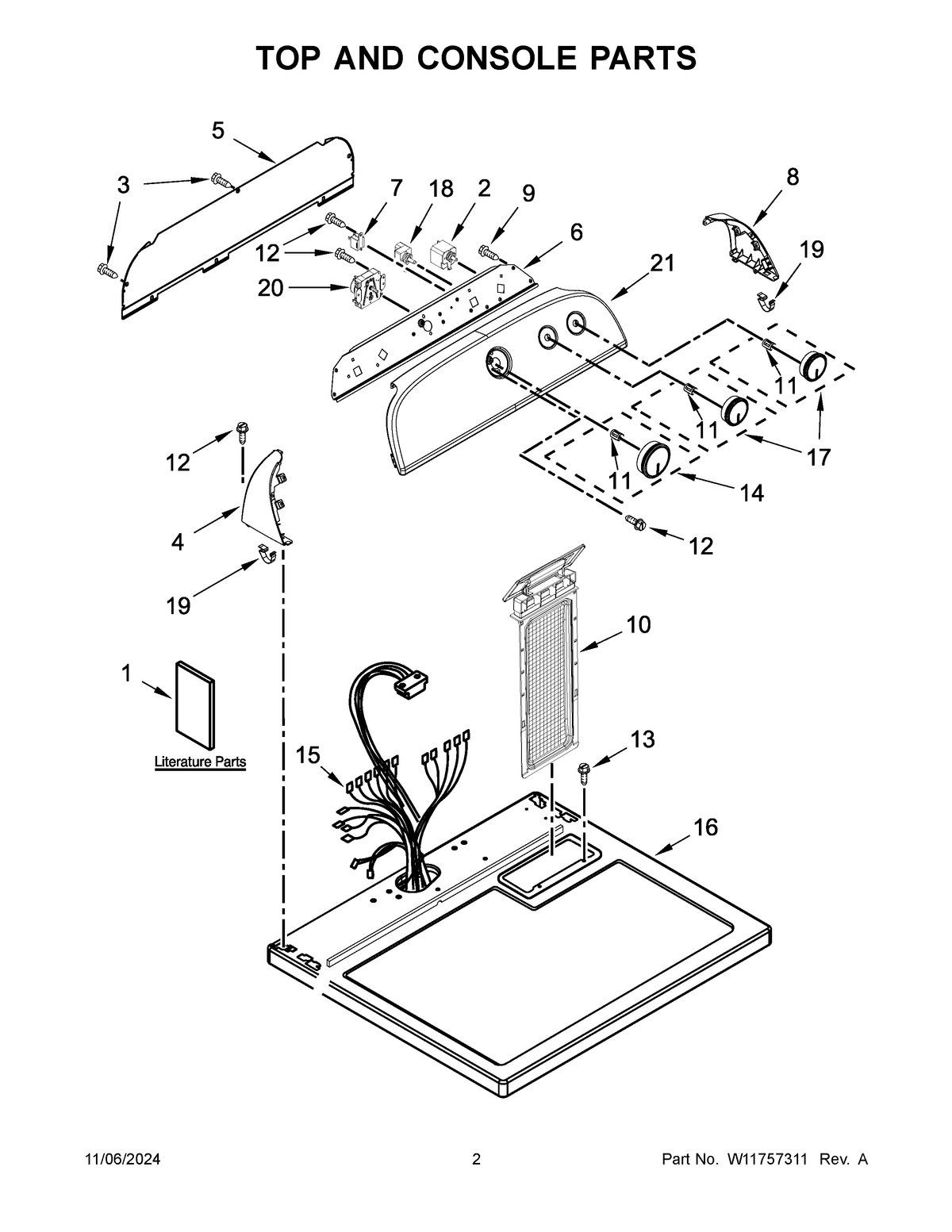

CDEW7110RW0 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1B	TECH SHEET
1	OWNERS MANUAL
1A	QUICK START GUIDE
2	WPW10117655 Whirlpool Dryer Start Switch
3	WP693995 Whirlpool Screw
4	WPW10520782 Whirlpool Panel
5	W10556829 Whirlpool Rear Panel
6	CONTROL BRACKET
7	WP694419 Whirlpool Buzzer Adjuster
8	WPW10520780 Whirlpool Panel
9	WP3400818 Whirlpool Screw
10	W11607443 Whirlpool Dryer Screen
11	WP8536939 Whirlpool Spring Clip
12	WP90767 Whirlpool Screw
13	W11693756 Whirlpool Screw Assembly
14	W11501455 Whirlpool Knob Assembly
15	W11747574 Whirlpool Wire Harness
16	WP8563663 Whirlpool Top Assembly
17	W11176265 Whirlpool Knob
18	W11050715 Whirlpool Switch
19	WP8312709 Whirlpool Endcap Clip
20	WPW10185982 Whirlpool Timer
21	ASSEMBLY, CONSOLE (WHITE)
