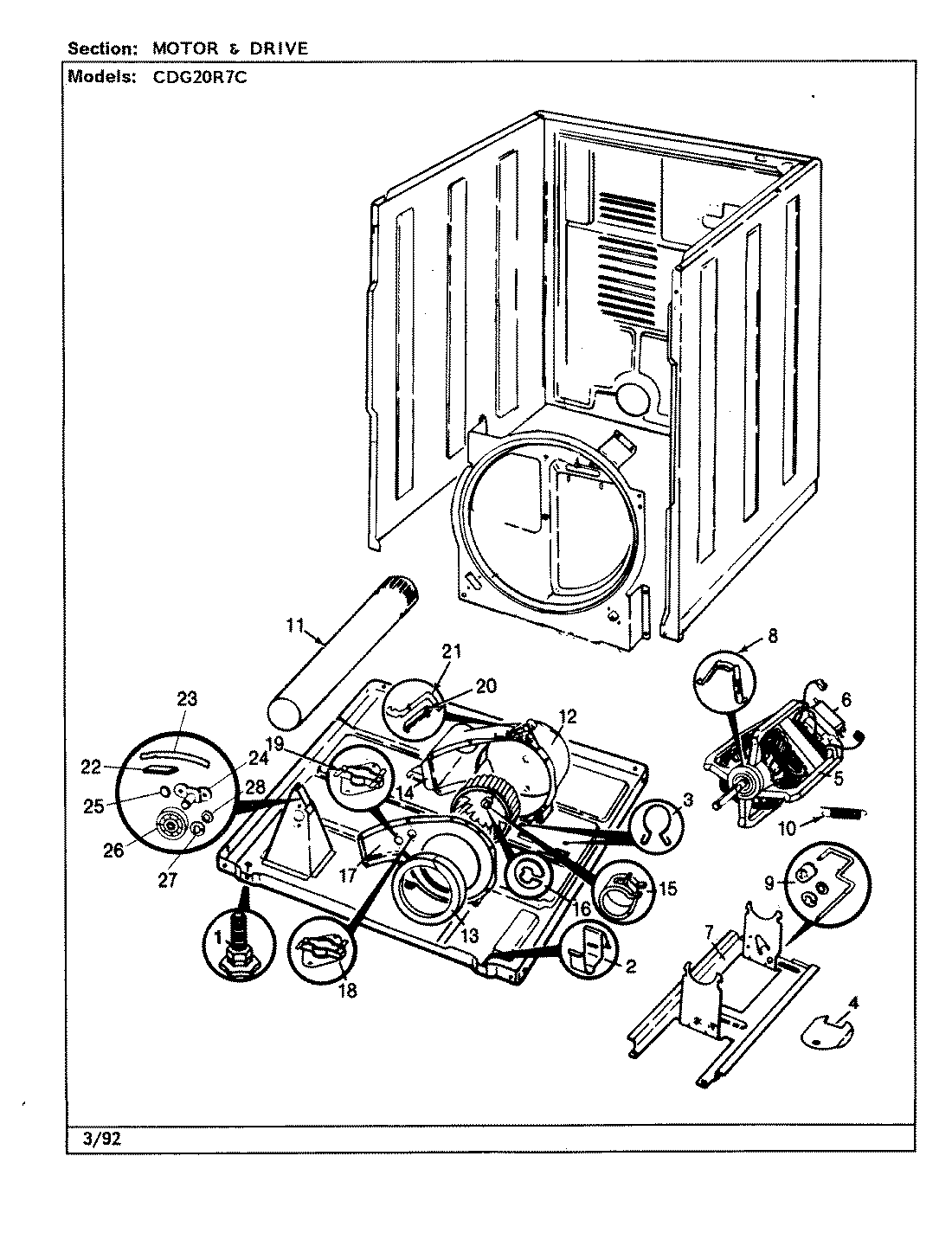

CDG20R7AC 04 – MOTOR & DRIVE

Products

Position	Product
1	W11117769 Whirlpool Refrigerator Leveler
2	WP53-0120 Whirlpool Clip
3	MAY 25-7027
4	MAY 25-7741
4	MAY 53-0153
5	MAY 53-1041
6	MAY 53-0936
7	MAY 25-7811
7	MAY 53-0852
8	WP660658 Whirlpool Clamp
8	MAY 25-7674
9	MAY 53-1650
10	MAY 53-1648
11	MAY 53-0134
12	MAY 53-0774
13	12001324 Whirlpool Collector Duct
14	MAY 53-0106
15	MAY 25-7823
16	MAY 25-7855
17	MAY 53-1026
17	MAY 25-7807
17	MAY 53-1023
18	WP53-1107 Whirlpool Thermostat
19	MAY 25-2134
20	MAY 53-0182
21	MAY 53-0183
23	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
23	MAY LA-1008
24	MAY 53-0198
25	MAY 25-7813
26	MAY 53-0642
27	WP25-7854 Whirlpool Clip
28	MAY 25-7814
