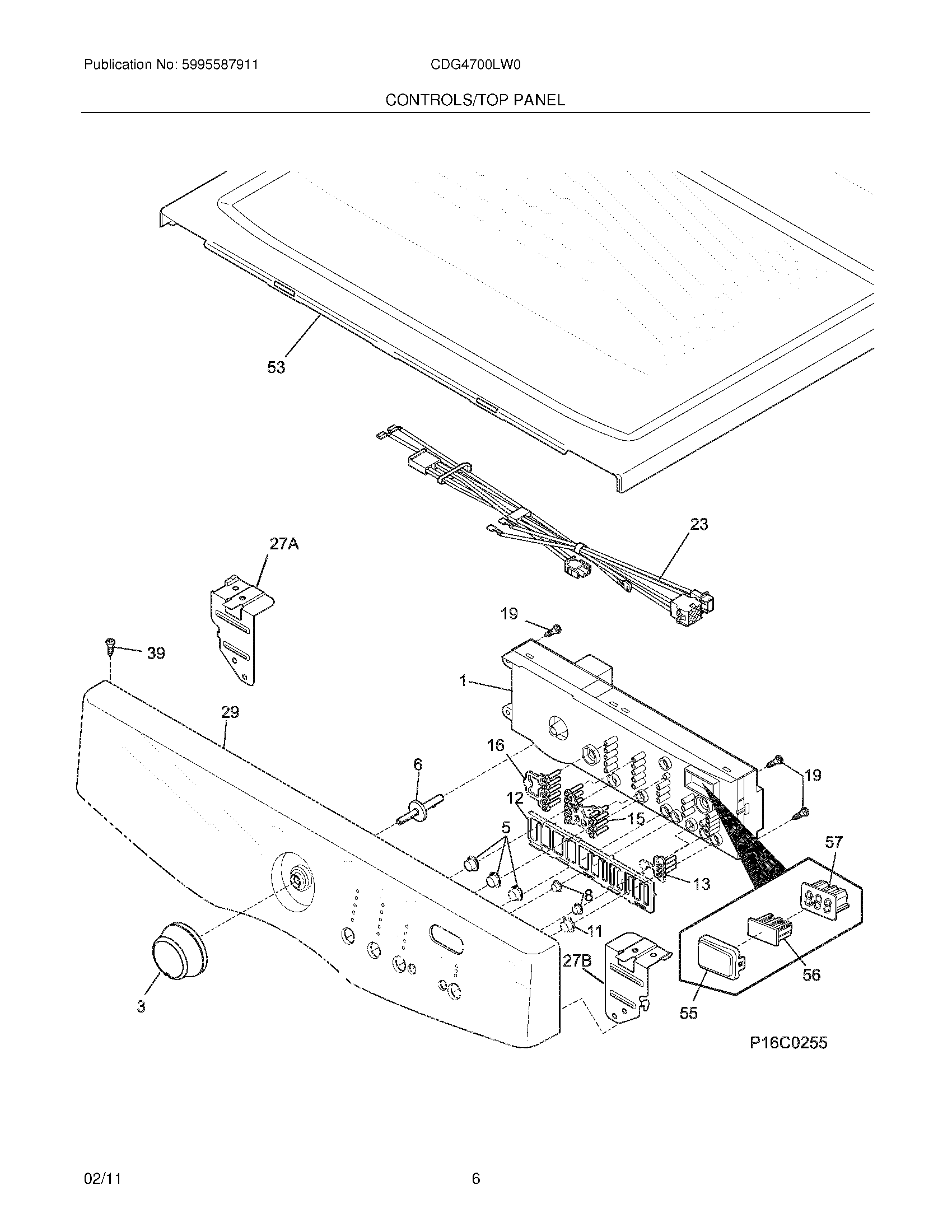

CDG4700LW0 07 – CONTROLS/TOP PANEL

CDG4700LW0 07 – CONTROLS/TOP PANEL

Written by

in

CDG4700LW0 07 – CONTROLS/TOP PANEL

Products

PositionProduct
NI134926600 Frigidaire Damper
NIWCI 134910200
1No.WCI 137070870
3WCI 137314625
5WCI 137314725
6WCI 134347700
8WCI 137320825
11WCI 137314825
12WCI 137320500
13WCI 134557501
15WCI 134552800
16WCI 134600000
19134402900 Frigidaire Screw
23WCI 134710300
27A134710900 Frigidaire Bracket Assembly
27B134711000 Frigidaire Bracket
29PANEL, CONTROL CONSOLE
39131205100 Frigidaire Screw
53134638510 Frigidaire Washer Dryer Top Panel
55WCI 137320700
56WCI 134557300
57WCI 134503300
