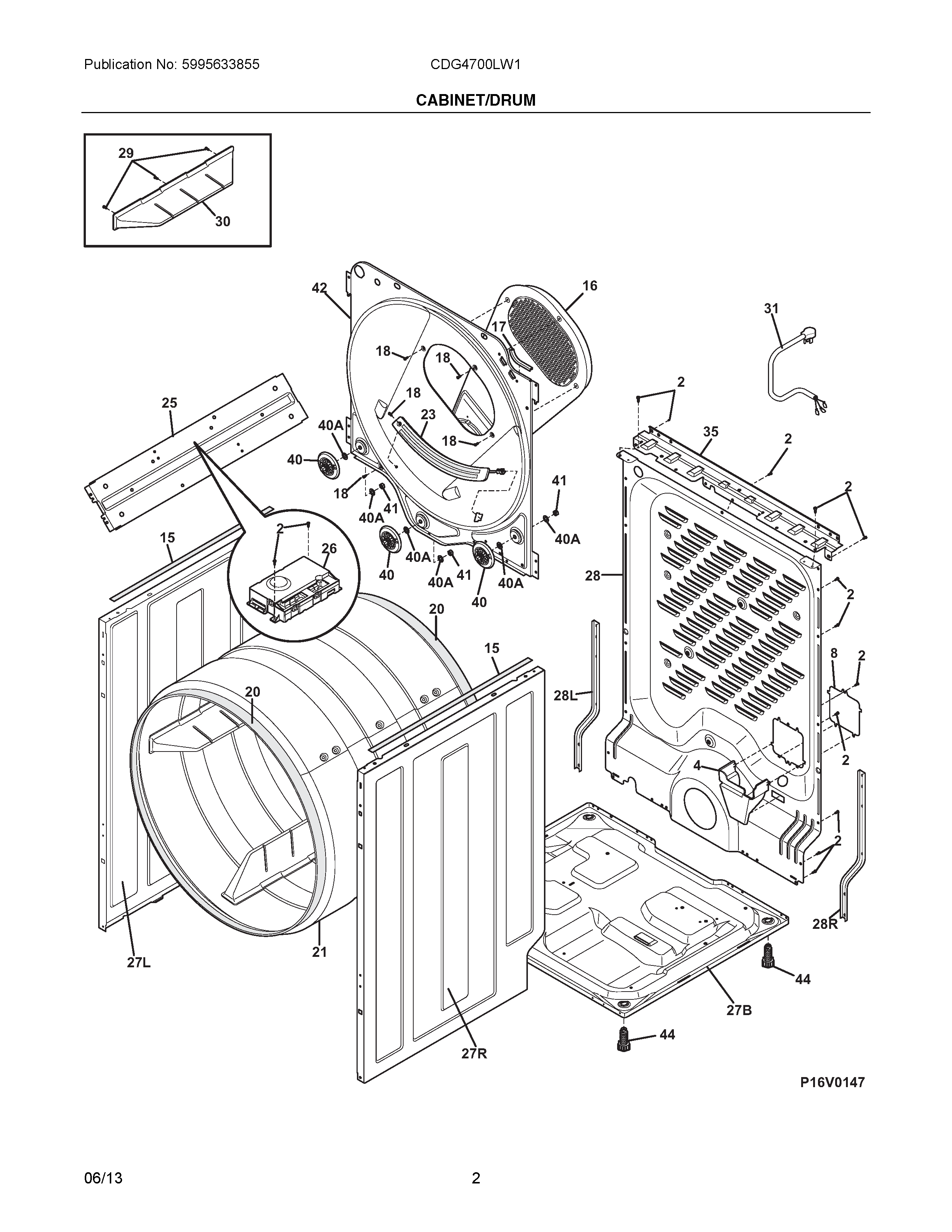

CDG4700LW1 02 – CABINET/DRUM

Products

Position	Product
NIA	134930800 Frigidaire Harness
NIA	134716200 Frigidaire Retainer
NIA	WCI 137240400
NI	134926600 Frigidaire Damper
NIA	5308027429 Frigidaire Dryer High Temperature Adhesive
NIA	5304438633 Frigidaire Dishwasher Romex Connector
4	WCI 134792200
8	134694400 Frigidaire Cover
15	137031800 Frigidaire Cushion
16	5304509715 Frigidaire Duct
17	134792900 Frigidaire Protector
18	131168200 Frigidaire Dryer Screw
20	137565300 Frigidaire Seal
21	WCI 134711900
23	134786110 Frigidaire Moisture Sensor
25	WCI 134912100
27B	134690203 Frigidaire Base
27L	WCI 134690310
27R	WCI 134690410
28L	WCI 137029900
28R	WCI 137066800
28	WCI 137560300
29	131205100 Frigidaire Screw
30	VANE, DRUM
31	5304505407 Frigidaire Cord
35	WCI 134959000
40A	134716700 Frigidaire Washer
40	5304523155 Frigidaire Washer Kit
41	134716800 Frigidaire Nut
42	137556623 Frigidaire Bulkhead
44	216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
