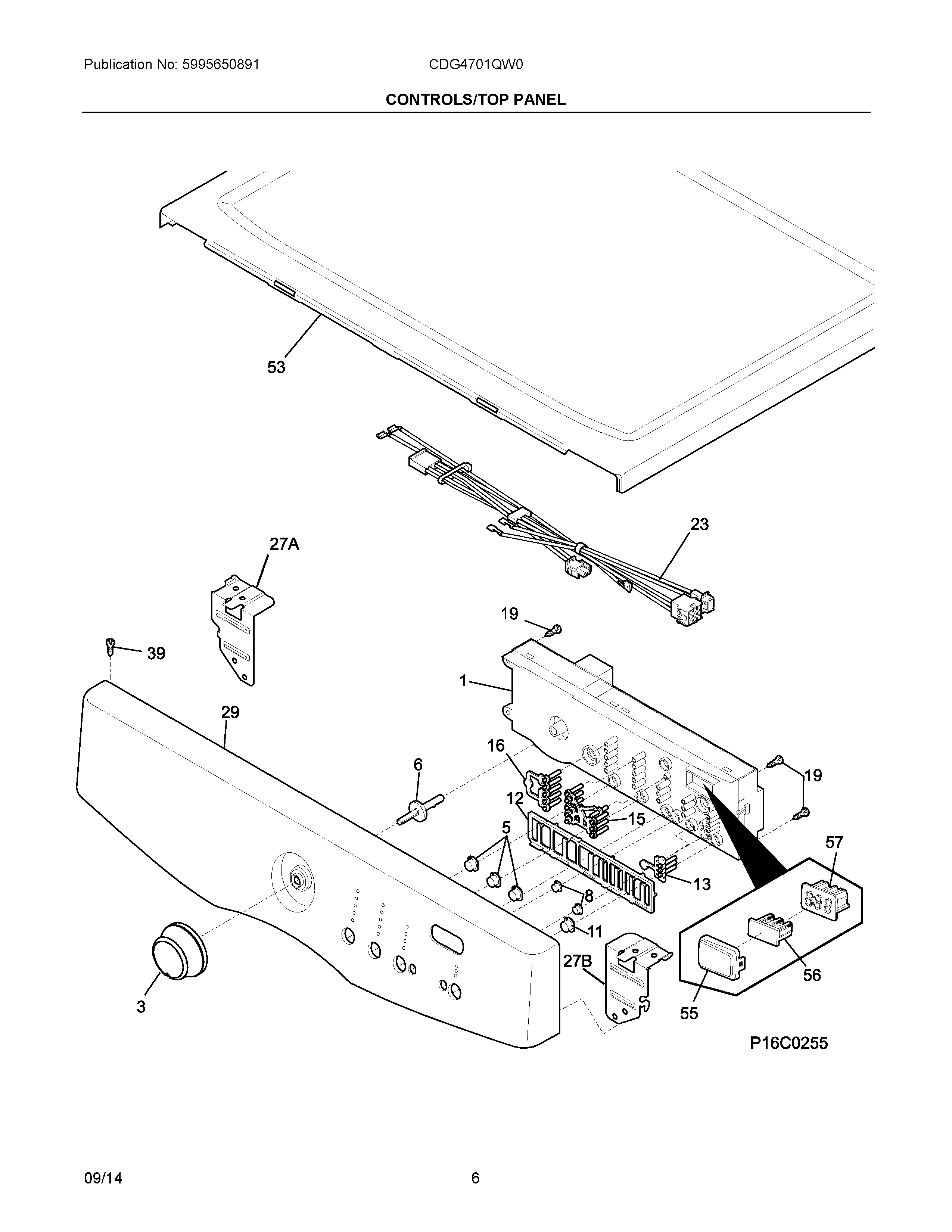

CDG4701QW0 04 – CONTROLS/TOP PANEL

CDG4701QW0 04 – CONTROLS/TOP PANEL

Written by

in

CDG4701QW0 04 – CONTROLS/TOP PANEL

Products

PositionProduct
NIAWCI 134710300
NIA134926600 Frigidaire Damper
1137070890NH Frigidaire Dryer Main Control Board (No Housing)
3KNOB, CONTROL, WHITE
5PUSH BUTTON, ROUND #3
6WCI 134347700
8PUSH BUTTON, ROUND #1
11PUSH BUTTON, ROUND #4
12WCI 137320500
13WCI 134557501
15WCI 134552800
16WCI 134600000
19134402900 Frigidaire Screw
23WCI 134910205
27B134711000 Frigidaire Bracket
27A134710900 Frigidaire Bracket Assembly
29WCI 137345461
39131205100 Frigidaire Screw
53137371700 Frigidaire Panel
55WCI 137320700
56WCI 134557300
57WCI 134503300
