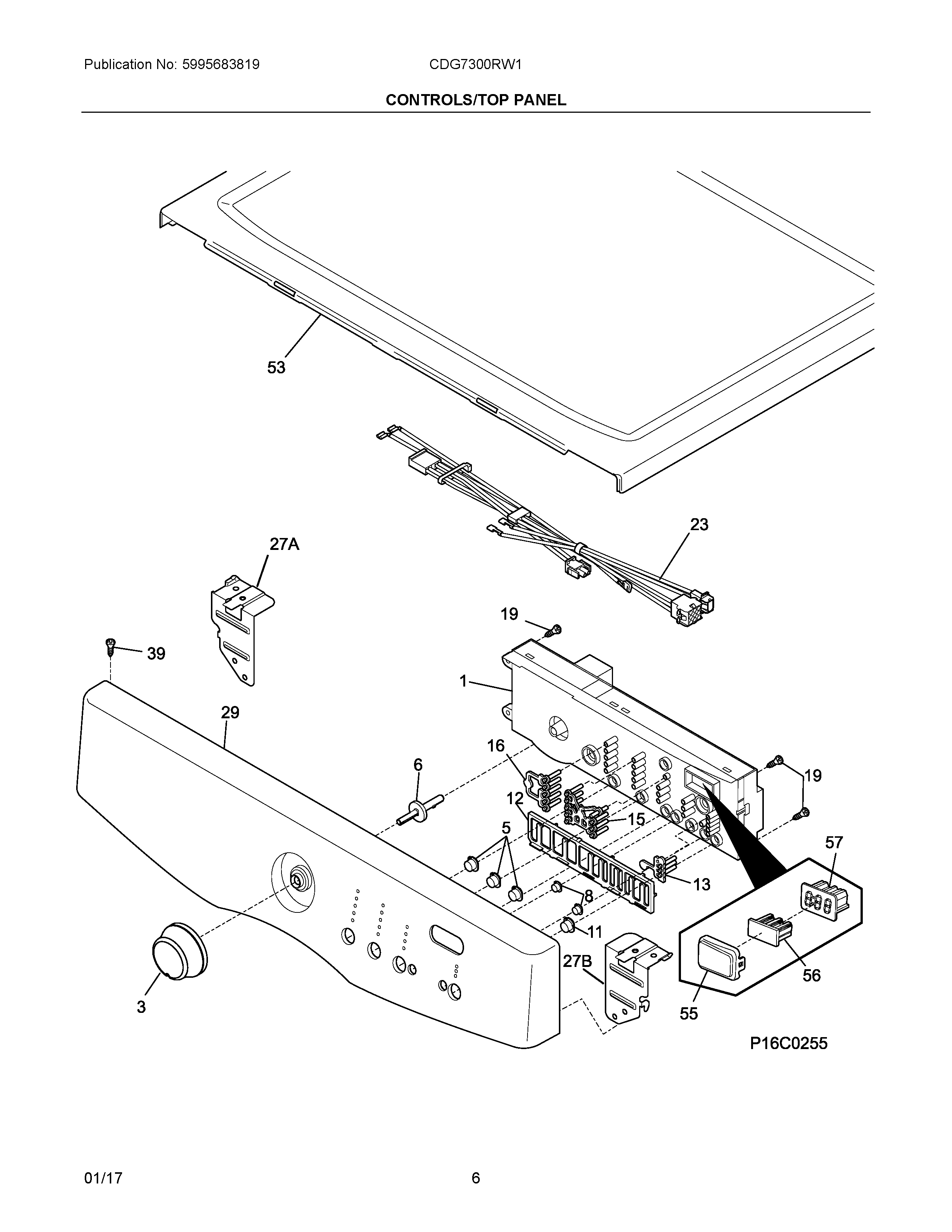

CDG7300RW1 04 – CONTROLS/TOP PANEL

CDG7300RW1 04 – CONTROLS/TOP PANEL

Written by

in

CDG7300RW1 04 – CONTROLS/TOP PANEL

Products

PositionProduct
NIA5304506374 Frigidaire Harness
NIB137150200 Frigidaire Terminal
NI131168200 Frigidaire Dryer Screw
NIA134926600 Frigidaire Damper
1137070890NH Frigidaire Dryer Main Control Board (No Housing)
3KNOB, CONTROL, WHITE
5PUSH BUTTON, ROUND #3
6WCI 134347700
8PUSH BUTTON, ROUND #1
11PUSH BUTTON, ROUND #4
12WCI 137320500
13WCI 134557501
15WCI 134552800
16WCI 134600000
19134402900 Frigidaire Screw
23WCI 134910205
27A134710900 Frigidaire Bracket Assembly
27B134711000 Frigidaire Bracket
29PANEL, CONTROL CONSOLE
39131205100 Frigidaire Screw
53134638510 Frigidaire Washer Dryer Top Panel
55WCI 137320700
56WCI 134557300
57WCI 134503300
