CDG8990XW1 02 – TOP AND CONSOLE PARTS

CDG8990XW1 02 – TOP AND CONSOLE PARTS

Written by

in

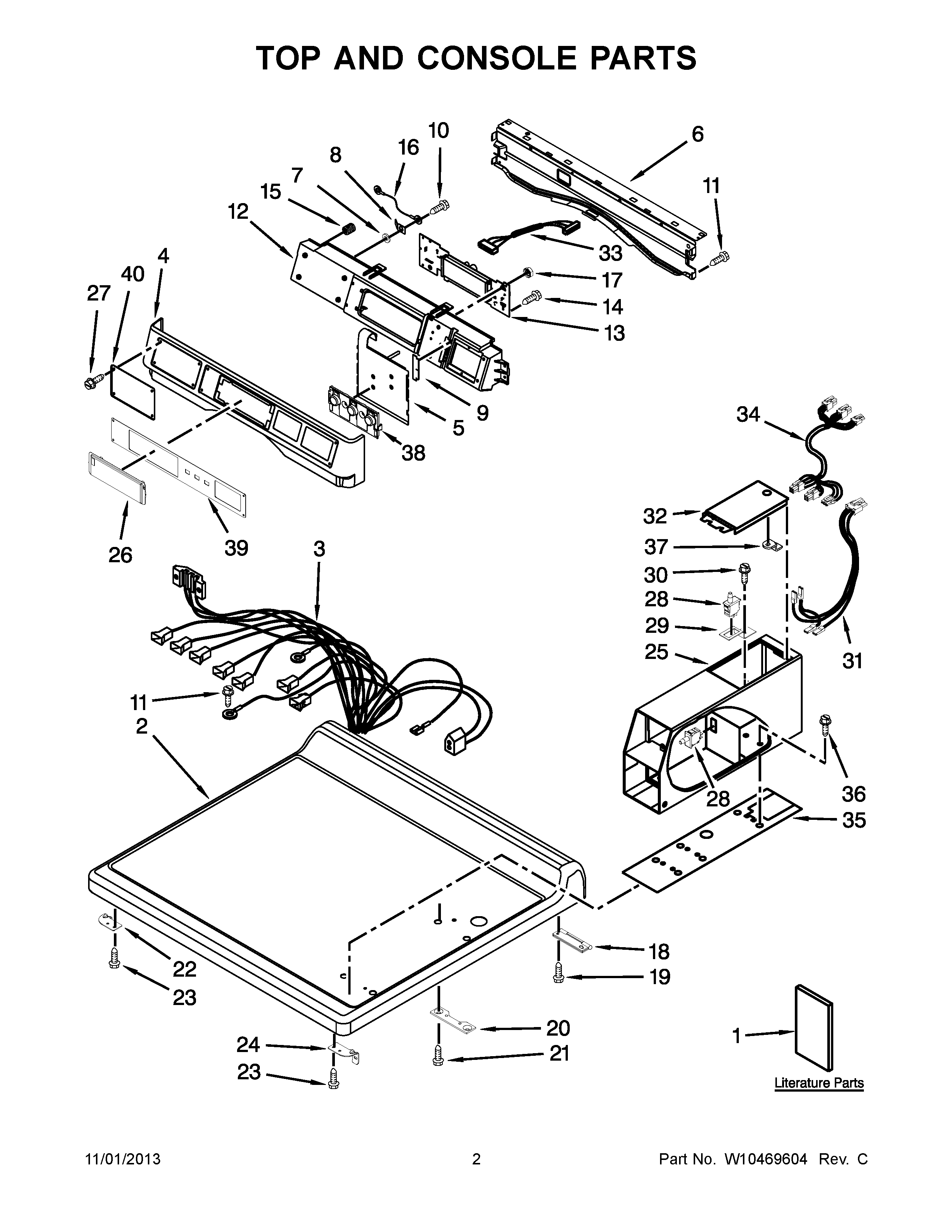

CDG8990XW1 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1TECH SHEET
1INSTALLATION INSTRUCTION
2WPW10137411 Whirlpool Top
3HARNESS, MAIN
4W10779120 Whirlpool Console
5WPW10135255 Whirlpool Switch
6WP8565237 Whirlpool Bracket Assembly
7W10189075 Whirlpool Washer
8TAB, GROUNDING
9W10187276 Whirlpool Gasket
10WP488234 Whirlpool Air Conditioner Screw
12W10137427 Whirlpool Console
14489136 Whirlpool Refrigerator Screw
15WPW10189313 Whirlpool Insert
16Ground Wire Assembly
17WPW10139046 Whirlpool Nut
18WP8565018 Whirlpool Hinge
19WP488627 Whirlpool Refrigerator Screw
203347825 Whirlpool Plate
21W10841059 Whirlpool Screw
22W10137445 Whirlpool Bracket Assembly
23WP488729 Whirlpool Refrigerator Door Screw
24W10137444 Whirlpool Bracket
25WPW10171132 Whirlpool Case
26WPW10267645 Whirlpool Cover Assembly
27WPW10137457 Whirlpool Screw
28WPW10131838 Whirlpool Voltage Switch
30WPW10139210 Whirlpool Screw
31W11096090 Whirlpool Wire Harness
32W11283272 Whirlpool Washer Dryer Meter Case Access Door
33W10166307 Whirlpool Wire Harness
34W10166308 Whirlpool Harness Wire
35W10137448 Whirlpool Cushion
36W11715721 Whirlpool Screw Assembly
38PUSH BUTTON
39W10334890 Whirlpool Dryer Overlay
40W10137462 Whirlpool Cover
