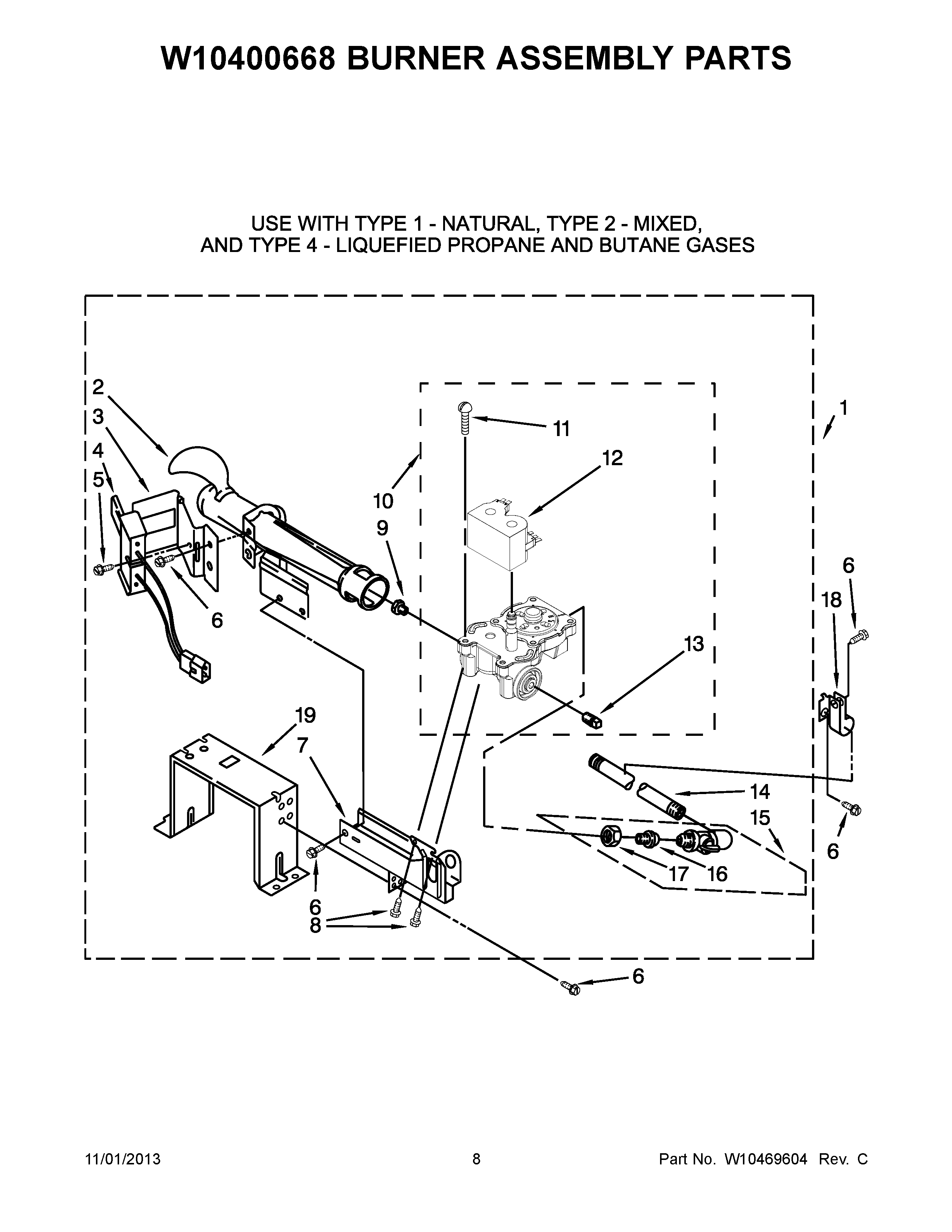

CDG8990XW1 05 – W10400668 BURNER ASSEMBLY PARTS

CDG8990XW1 05 – W10400668 BURNER ASSEMBLY PARTS

Written by

in

CDG8990XW1 05 – W10400668 BURNER ASSEMBLY PARTS

Products

PositionProduct
NIW10402145 Whirlpool LP Gas Connection
NICABINET (NOT A SERVICEABLE PART)
2WP693140 Whirlpool Burner
3WP694298 Whirlpool Bracket
4279311 Whirlpool Dryer Flat Igniter with Bracket
5WPW10366705 Whirlpool Screw
6SCREW
7Base, Burner
8WP693995 Whirlpool Screw
9WP234868 Whirlpool Gas Orifice
9Orifice, Burner (Type 1)
10W11676916 Whirlpool Gas Burner
11326049536 Whirlpool Screw
12WPW10328463 Whirlpool Valve Coil
13W10295523 Whirlpool Plug
14W10110395 Whirlpool Pipe
15697441 Whirlpool Valve
163393767 Whirlpool Pipe
17Nut, Compression
183387561 Whirlpool Clamp
19Bracket, Support
