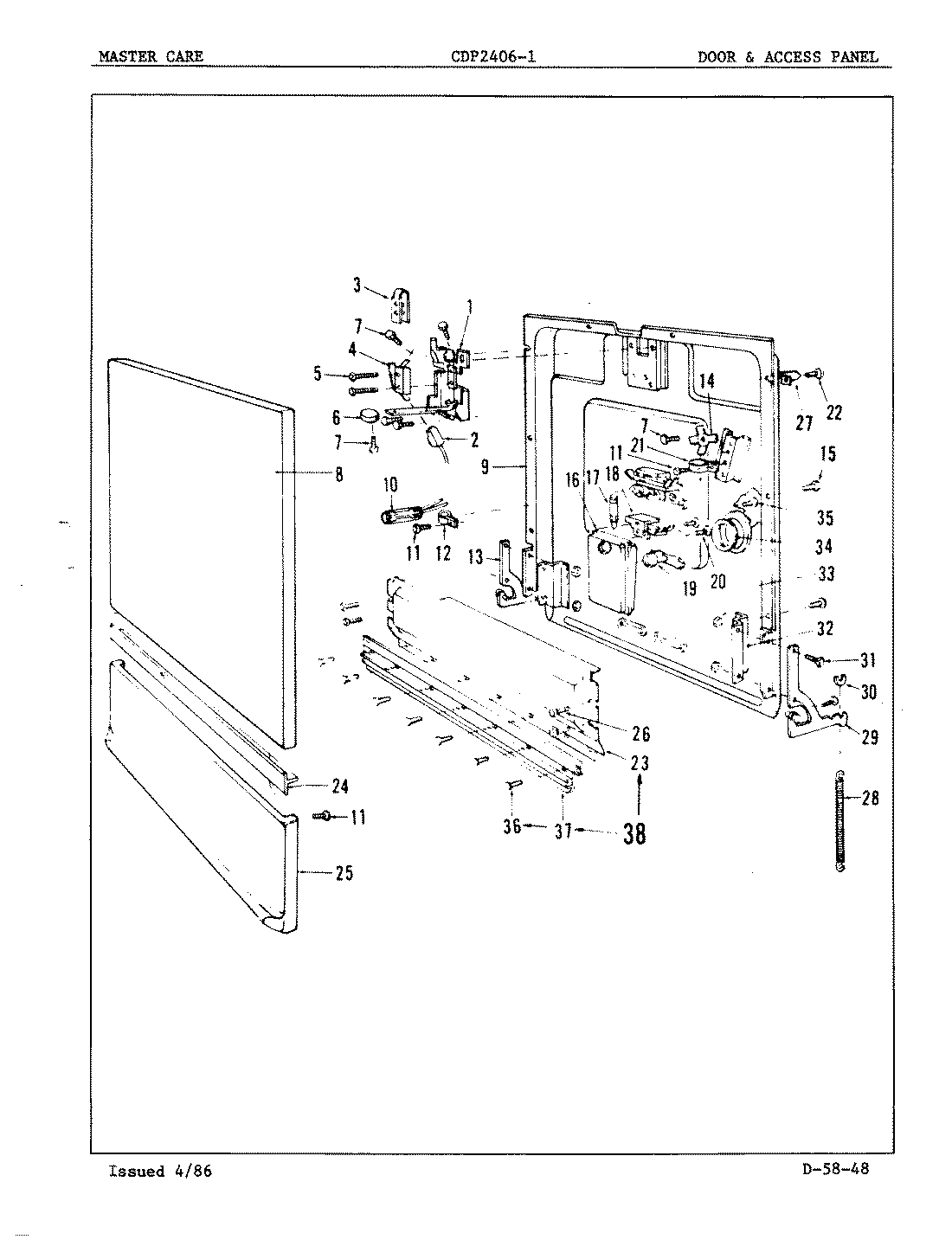

CDP2406-1 03 – DOOR & ACCESS PANEL

Products

Position	Product
1	LATCH ASM
2	INSULATOR
3	SWITCH COVER
4	MAY 807043
5	MAY 803051–
6	MAY 806398
7	SCREW
8	OUTER PANEL
8	MAY 807595
8	MAY 807643
9	INNER PANEL
10	MAY 807462
11	SCREW
12	MAY 805340
13	LH ARM
14	GROUND TERMINAL
15	SCREW
16	DISPENSER
17	MAY 806757
18	BRACKET
19	MAY 806843
20	MAY 805063
21	MAY 807212
22	MAY 806976
23	MAY 808329
24	MAY 806912
25	MAY 808084
25	MAY 808069
25	MAY 808081
26	SCREW
27	DOOR GUIDE
28	DOOR SPRING
29	RH ARM
30	SPRING PAD
31	MAY 803311
32	ARM BRACKET
33	MAY 800928
34	GROMMET
35	SCREW
36	MAY 808330
37	MAY 808331
38	VENT BAFFLE
