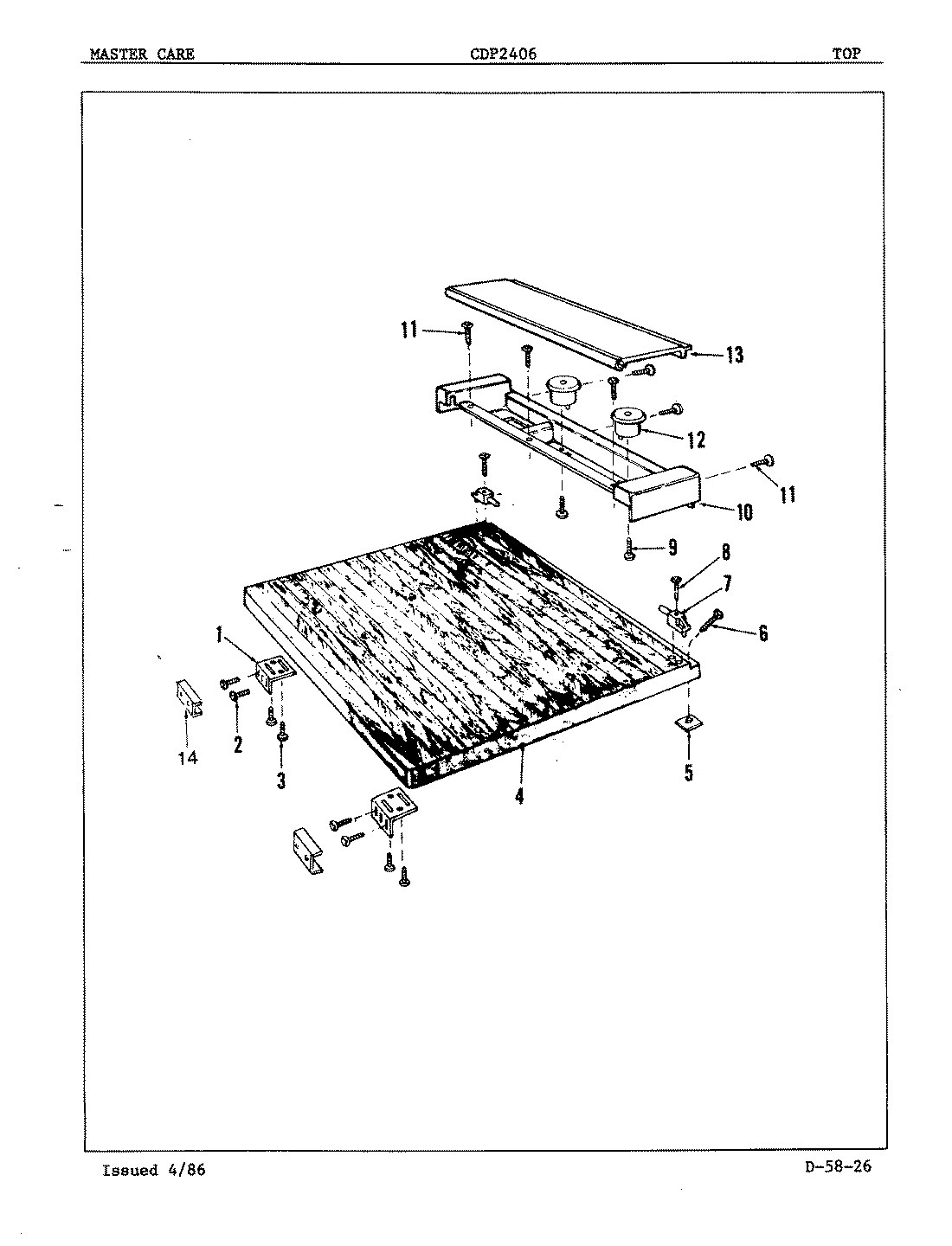

CDP2406A 07 – TOP ASSEMBLY
Products
| Position | Product |
|---|---|
| 1 | CLIP |
| 2 | SCREW |
| 3 | MAY 807270 |
| 4 | MAY 808191 |
| 5 | MAY 807819 |
| 6 | MAY 807817 |
| 7 | HINGE |
| 8 | SCREW |
| 9 | MAY 807268 |
| 10 | LID BASE |
| 11 | MAY 807501 |
| 12 | MAY 808195 |
| 13 | MAY 808194 |
| 14 | COVER, TOP CLIP |
CDP2406A 07 – TOP ASSEMBLY
| Position | Product |
|---|---|
| 1 | CLIP |
| 2 | SCREW |
| 3 | MAY 807270 |
| 4 | MAY 808191 |
| 5 | MAY 807819 |
| 6 | MAY 807817 |
| 7 | HINGE |
| 8 | SCREW |
| 9 | MAY 807268 |
| 10 | LID BASE |
| 11 | MAY 807501 |
| 12 | MAY 808195 |
| 13 | MAY 808194 |
| 14 | COVER, TOP CLIP |
