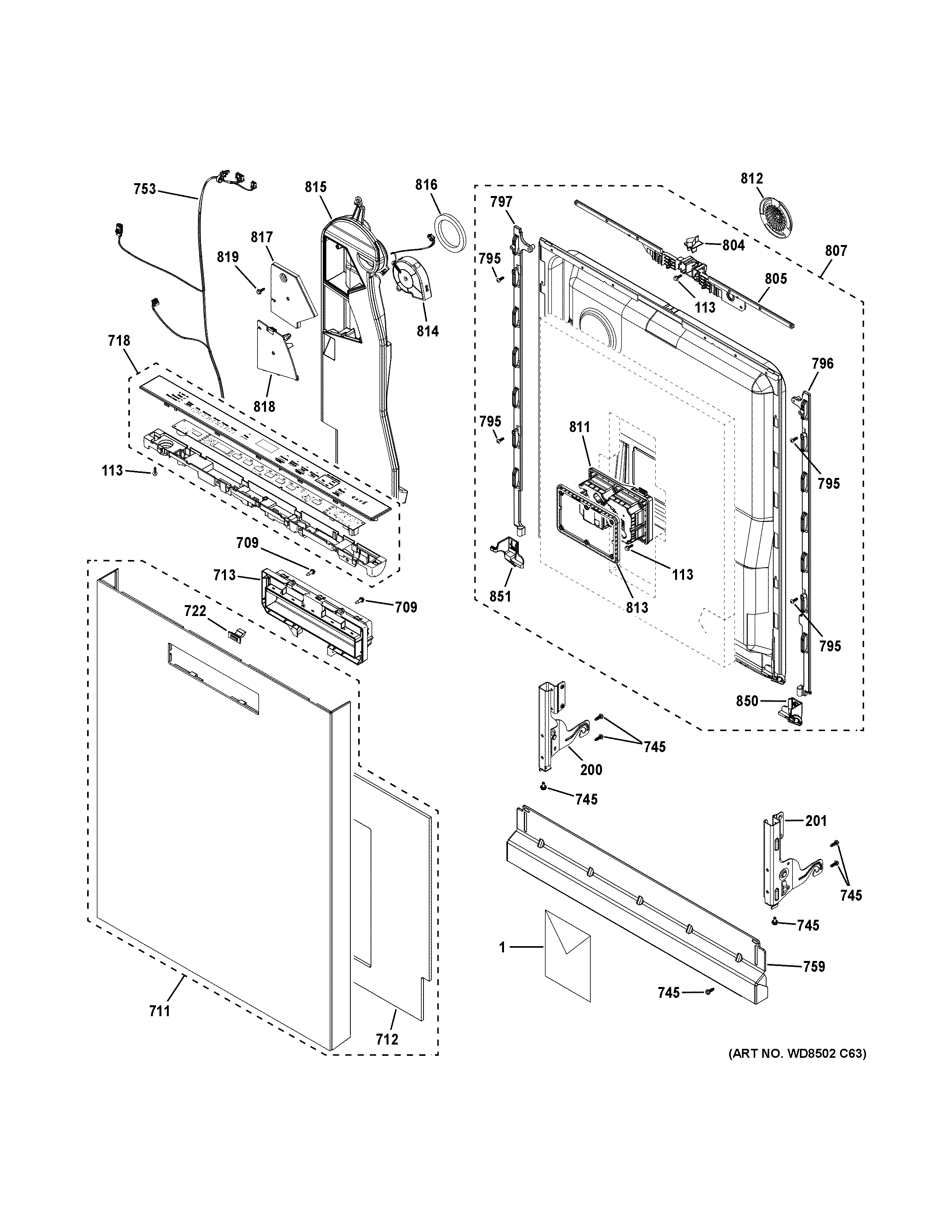

CDP888M5V1S5 ESCUTCHEON & DOOR ASSEMBLY

CDP888M5V1S5 ESCUTCHEON & DOOR ASSEMBLY

Written by

in

CDP888M5V1S5 ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1PM OWNERS AND INSTALL
1PRINTED ONLY MINI MANUAL AND WIRING
1PM ATTENTION INSTALLER
113WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW
200WD01X27721 GE Dishwasher Door Hinge Assembly Left
201WD01X27720 GE Dishwasher Door Hinge Assembly Right
709WR01X11012 GE Refrigerator Screw 8-18 AB HXW 9/16"
711GLASS CAF OUTER DOORPANEL
712OUTER DOOR INSULATION
713CAF DOOR POCKET HANDLE
718CONFIGURED UI CONTROL WITH COVER
722DOOR LENS
745WD01X22514 GE Dishwasher Screw 10-32 GX IHXW 9/16 S
753UI HARNESS
759TOE KICK
795WD02X22628 GE Dishwasher Plastite Screw T15 8-16
796WD01X22836 GE Dishwasher Right Hand Attach Strip
797ATTACHMENT STRIP LH
804WD13X10071 GE Dishwasher Door Strike
805WD13X22837 GE Dishwasher Top Strip Attachment
807INNER DOOR
811WD12X31658 GE Detergent Module
812VENT COVER
813WD12X10462 GE Dishwasher Detergent Plate
814DRY DOOR FAN AND HARNESS
815DOOR VENT CONDUIT
816DOOR VENT SEAL
817WET DOOR FAN COVER
818DRY DOOR FAN COVER
819WD01X27719 GE Screw PL HXW 8-18 1/2
850WD01X26418 GE Dishwasher Right Hand Door Trim
851WD01X26419 GE Dishwasher Door Trim Left Hand
