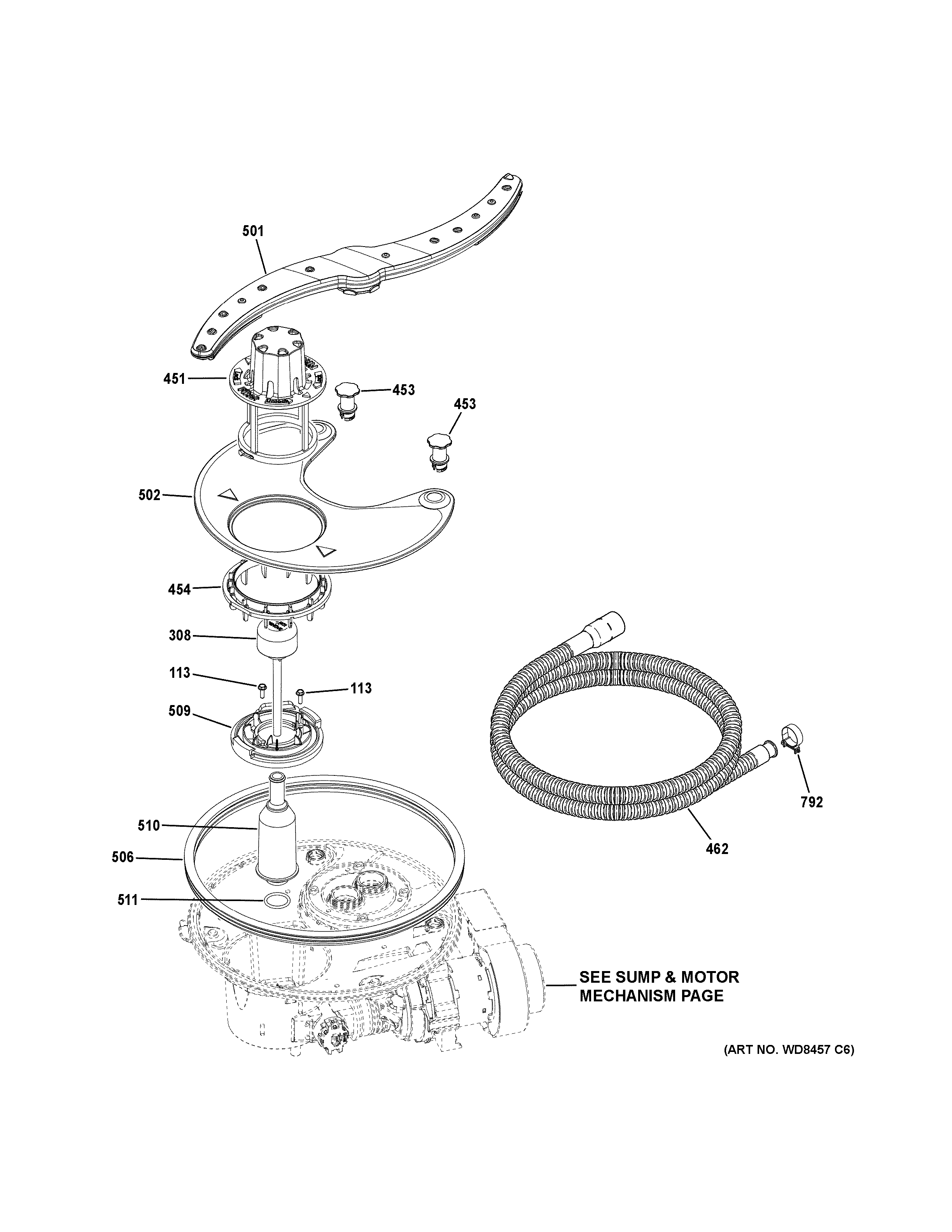

CDT706P2M5S1 SUMP & FILTER ASSEMBLY

CDT706P2M5S1 SUMP & FILTER ASSEMBLY

Written by

in

CDT706P2M5S1 SUMP & FILTER ASSEMBLY

Products

PositionProduct
113WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW
308WD21X22822 GE Dishwasher Flood Float
451WD22X25463 GE Dishwasher User Cleanable Fine Filter
453WD24X10057 GE Vent Filter Replacement
454WD12X10419 GE Dishwasher Adapter Filter
462DRAIN TUBE ASM
501WD22X33499 GE Dishwasher Lower Spray Arm – Heat Shield No Longer Required
502WD22X10093 GE Dishwasher Coarse Stainless Steel Filter
506WD08X22758 GE Dishwasher Gasket
509WD12X21677 GE Dishwasher Floor Plate Manual
510WD21X22838 GE Dishwasher Flood Stem
511WD01X22825 GE Dishwasher O-ring
792WD01X10104 GE Dishwasher Hose Clamp
