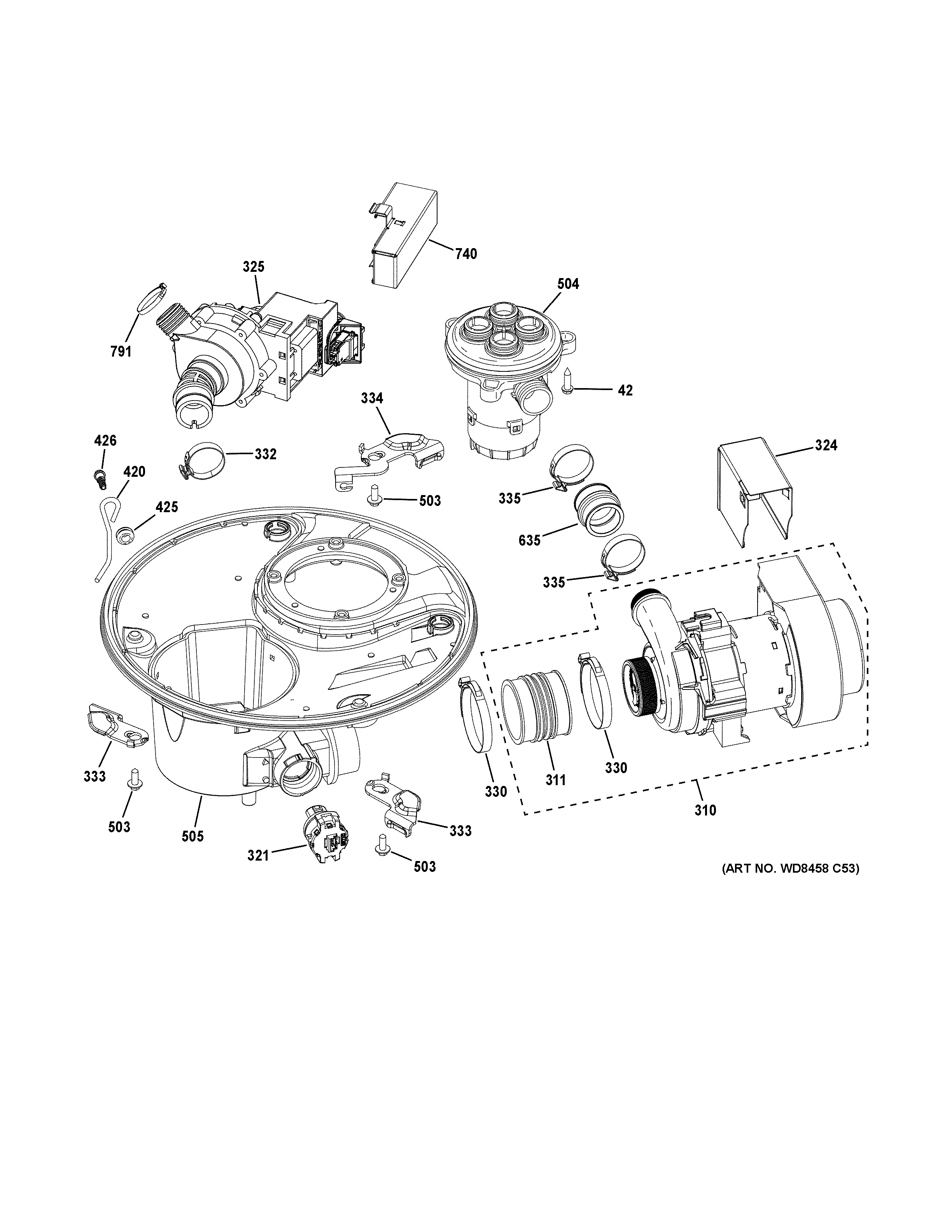

CDT725SSF6SS SUMP & MOTOR MECHANISM

CDT725SSF6SS SUMP & MOTOR MECHANISM

Written by

in

CDT725SSF6SS SUMP & MOTOR MECHANISM

Products

PositionProduct
42SCREW #8-3/4 L HX HD SS
310WD49X23781 GE Dishwasher Water Circulation Pump Assembly
311HOSE WASH PUMP INLET
321TURBIDITY SENSOR ASSY
324WD01X20212 GE Dishwasher Main Pump Shield
325SINGLE SPEED DRAIN PUMP KIT
330WD35X10382 GE Dishwasher Piranha Clamps Kit
333WD01X10632 GE Dishwasher Latch Cam
334WD01X10575 GE Dishwasher Latch Cam
420WD01X25218 GE Dishwasher Drain Pump Hanger
425WD01X10101 GE Dishwasher Pump Grommet
426WD02X10093 GE Dishwasher Screw 10-18 X 5/8
503WB01T10103 GE Oven Screw 10-16 AB HXW .532
504WD35X20598 GE Dishwasher Active Diverter Assembly Kit
505WD18X10055 GE Dishwasher Sump Manifold
635WD24X23177 GE Dishwasher Hose Assembly
740WD01X10584 GE Dishwasher Drain Pump Shield
791WD01X24246 GE Dishwasher Clamp
