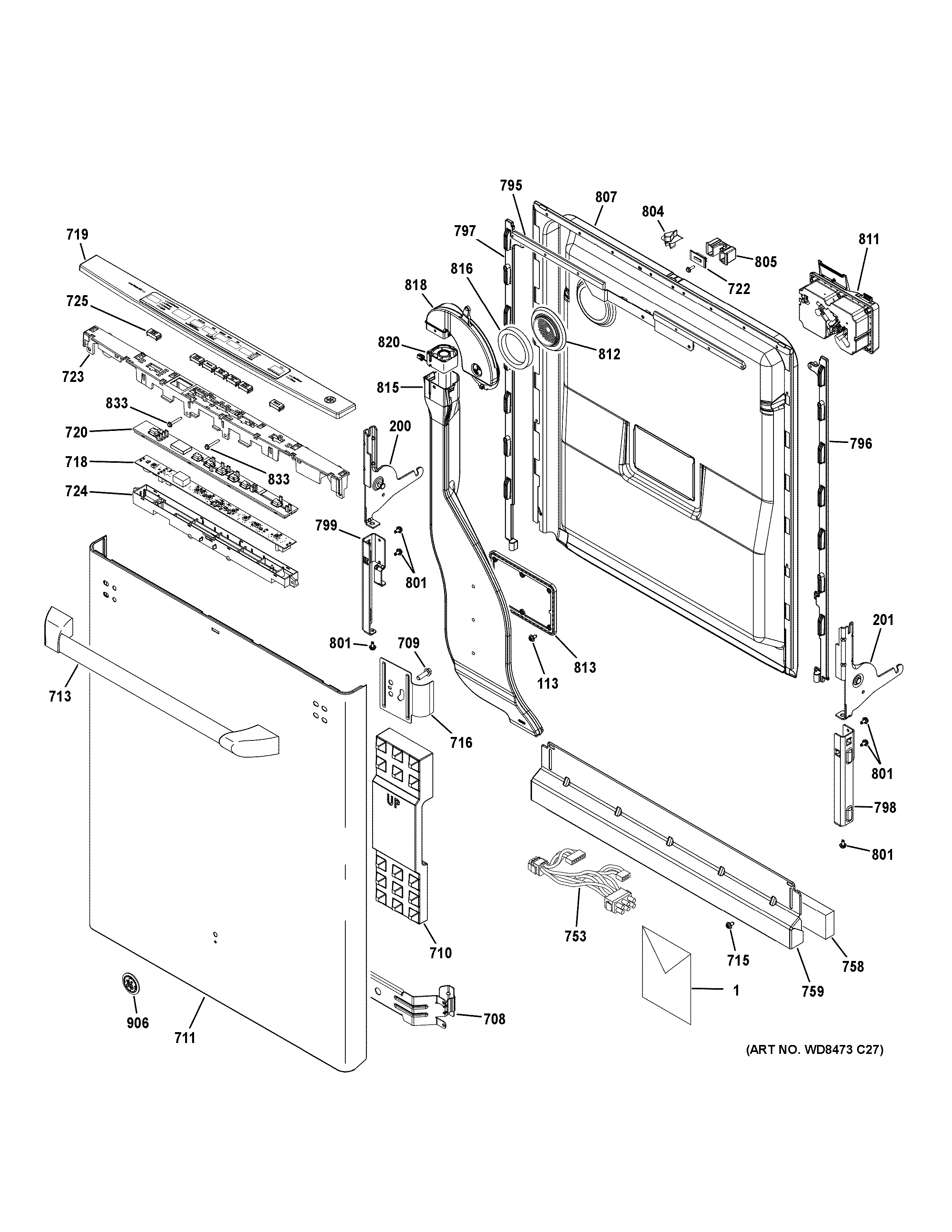

CDT725SSF7SS ESCUTCHEON & DOOR ASSEMBLY

CDT725SSF7SS ESCUTCHEON & DOOR ASSEMBLY

Written by

in

CDT725SSF7SS ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1PM MINI-MANUAL
1PM INSTALL INSTRUCTIONS
1PM OWNERS MANUAL
1INSERT MINI MANUAL
113WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW
200WD01X21475 GE Dishwasher Left Hand Hinge Friction Pad Assembly
201WD01X21435 GE Dishwasher Right Hand Hinge Friction Pad Assembly
708WD30X10045 GE Dishwasher Door Brace Assembly
709WD01X20934 GE Dishwasher Screw 1/4-28 FL IHXW 15/16
710WD01X10585 GE Dishwasher Door Foam Block
711KIT DOOR ASM OUTER
713HANDLE ASM
715WD02X10220 GE Dishwasher Hex Head 10-32 3/8" Screw
716WD01X20135 GE Dishwasher Handle Bracket
718CONFIGURED UI BOARD
719WD34X24946 GE Dishwasher Console Cover Assembly
720WD12X20246 GE Dishwasher Light Pipe Silicone
722WD09X20248 GE Dishwasher Lens and Adhesive Assembly
723WD12X20250 GE Dishwasher Top Control Console
724WD12X10470 GE Dishwasher Bottom Housing
725BUTTON AND GRAPHICS ASM
753WD21X20149 GE Dishwasher Door Harness Assembly
758WD27X21334 GE Insulation
759TOE KICK
795WD01X10639 GE Dishwasher Top Attachment Strip
796WD01X22836 GE Dishwasher Right Hand Attach Strip
797ATTACHMENT STRIP LH
798WD01X22513 GE Dishwasher Hinge Support Bracket
799WD01X22512 GE Dishwasher Hinge Support Bracket
801WD01X22514 GE Dishwasher Screw 10-32 GX IHXW 9/16 S
804WD13X20245 GE Dishwasher Strike Latch
805WD13X22837 GE Dishwasher Top Strip Attachment
807WD31X29639 GE Dishwasher Inner Door
811WD12X32799 GE Dishwasher Detergent Module
812WD12X10472 GE Dishwasher Dark Gray Vent
813WD12X10462 GE Dishwasher Detergent Plate
815WD12X20218 GE Dishwasher Vent Conduit Assembly
816DOOR VENT SEAL
818WD35X20856 GE Dishwasher Vent and Condenser Fan Models
820WD24X20256 GE Dishwasher Vent Fan Assembly
833WD02X20140 GE Dishwasher Screw 10-16 PL PNT 2.25"
906WR04X10181 GE Refrigerator Dishwasher Nameplate Badge
