CDT765SSF1SS UPPER RACK ASSEMBLY

CDT765SSF1SS UPPER RACK ASSEMBLY

Written by

in

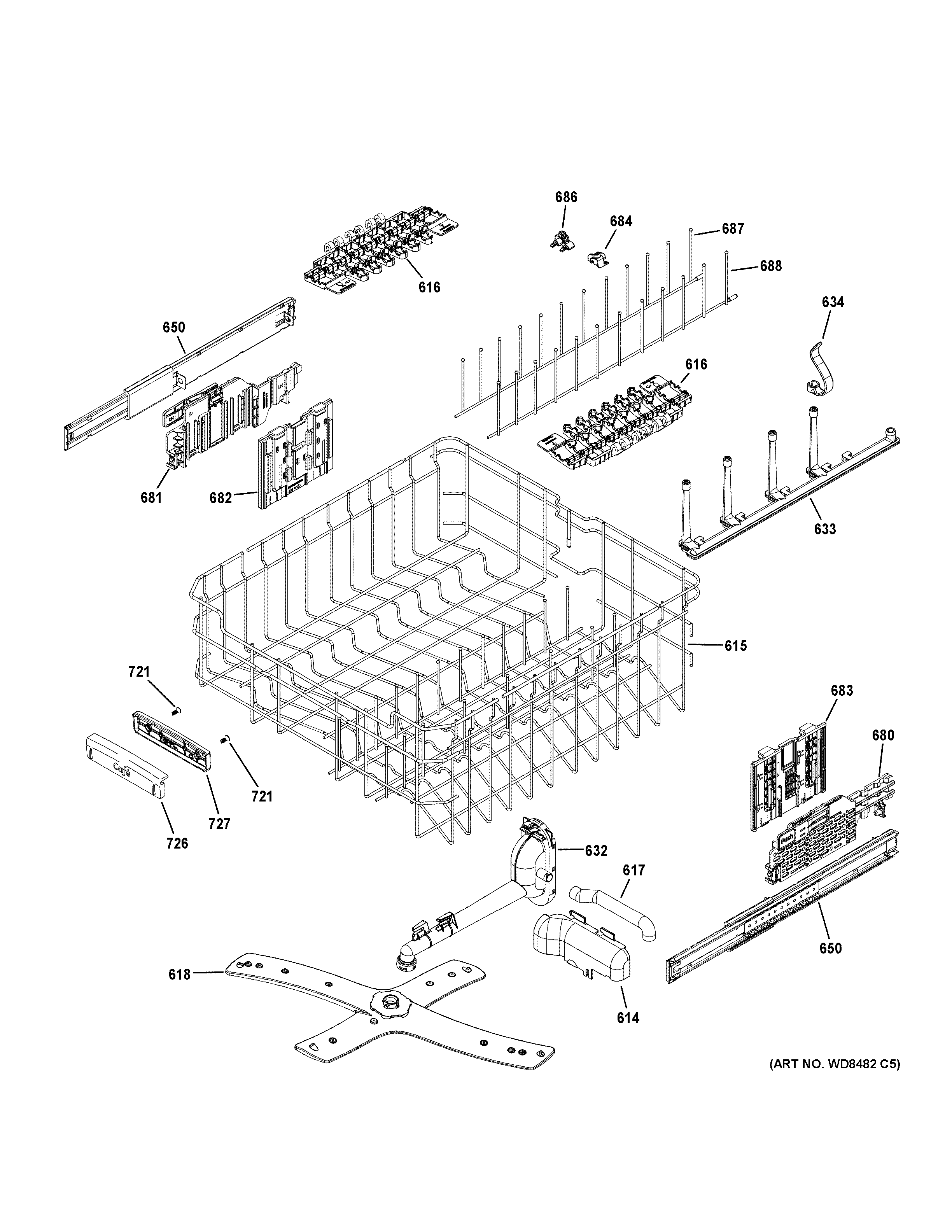

CDT765SSF1SS UPPER RACK ASSEMBLY

Products

PositionProduct
614WD24X20369 GE Bottle Blaster Cover
615WD28X30227 GE Dishwasher Upper Rack Assembly
616WD12X20408 GE Shelf Assembly
617WD24X20262 GE Dishwasher Hose Bottle Blaster
618WD22X20375 GE Dishwasher Arm Spray Middle Assembly
632WD12X34182 GE Dishwasher Mid Conduit Blaster
633WD22X25478 GE Dishwasher Bottle Blaster Assembly
634CLIP BOTTLE
650WD30X20361 GE Dishwasher Upper Rack Inner Rail
680WD12X20360 GE Dishwasher Bracket Assembly Upper Rack
681WD12X20362 GE Dishwasher Bracket Assembly Upper Rack
682WD12X20372 GE Dishwasher Fixed Bracket
683WD12X20373 GE Dishwasher Fixed Bracket
684WD28X20406 GE Dishwasher Flat Rack FDT Clip
686WD28X20407 GE Dishwasher Flat Rack FDT Clip
687WD28X20365 GE Dishwasher Upper Coated FDT Assembly
688WD28X20194 GE Dishwasher FDT Assembly Upper Coated
721WD02X20176 GE Dishwasher Stainless Steel 8-16 FLT Screw
726COVER HANDLE FRONT
727COVER HANDLE REAR
