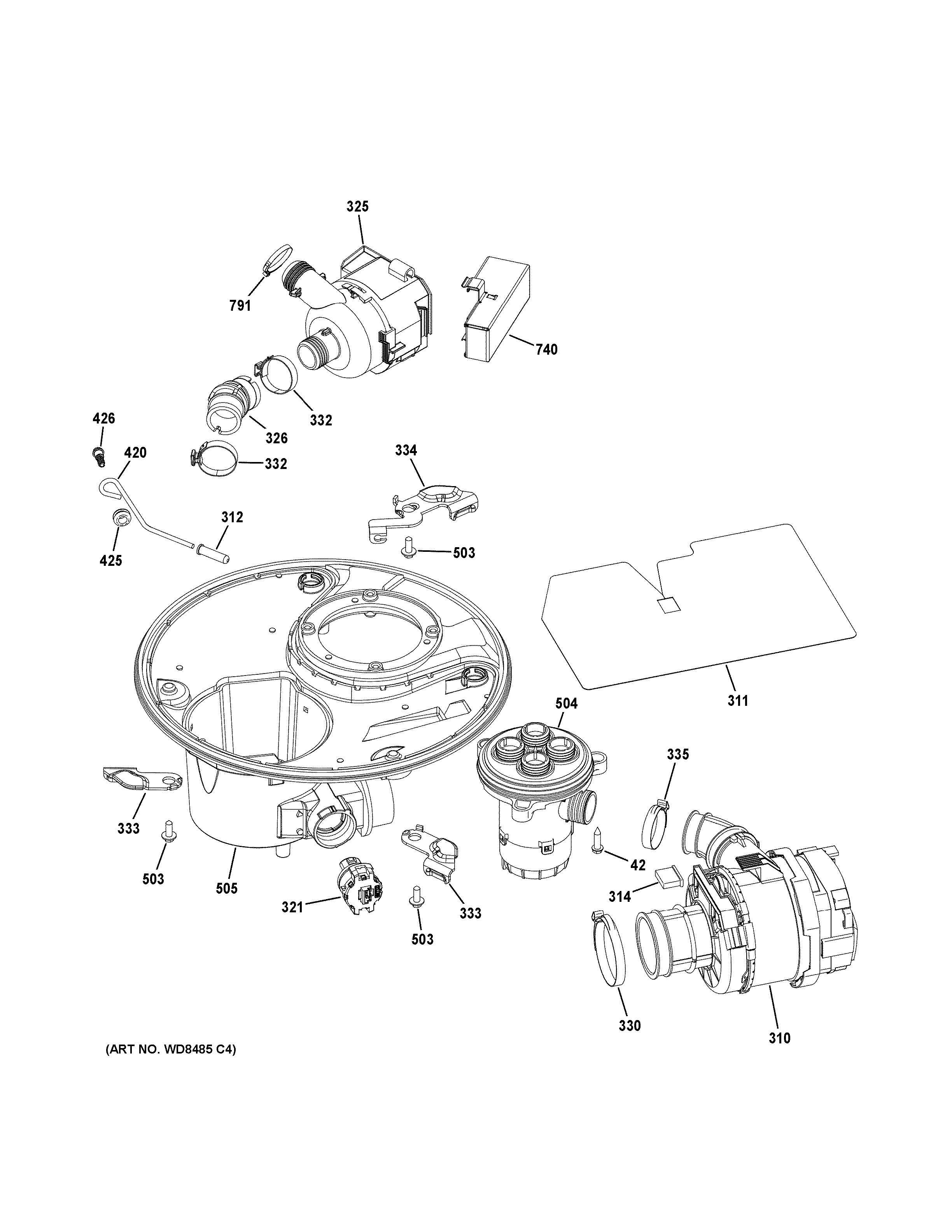

CDT765SSF7SS SUMP & MOTOR MECHANISM

CDT765SSF7SS SUMP & MOTOR MECHANISM

Written by

in

CDT765SSF7SS SUMP & MOTOR MECHANISM

Products

PositionProduct
42WD02X22736 GE Dishwasher Stainless Steel SCR10 16 AB HXW 3/4
310WD35X20599 GE Dishwasher Variable Speed Pump Assembly
311WD01X20212 GE Dishwasher Main Pump Shield
312WD01X22891 GE Grommet Pump Harness
314WD01X22890 GE Isolator Grommet
321SENSOR TURBIDITY ASM
325WD26X25104 GE Pump Drain
326WD24X20305 GE Dishwasher Drain Hose Elbow
330WD35X10382 GE Dishwasher Piranha Clamps Kit
333WD01X10632 GE Dishwasher Latch Cam
334WD01X10575 GE Dishwasher Latch Cam
420WD01X20595 GE Dishwasher Hanger & Grommet Assembly
425WD01X10101 GE Dishwasher Pump Grommet
426WD02X10093 GE Dishwasher Screw 10-18 X 5/8
503WB01T10103 GE Oven Screw 10-16 AB HXW .532
504DIVERTER ACTIVE ASM
505WD18X10055 GE Dishwasher Sump Manifold
740SHIELD PUMP DRAIN
791WD01X24246 GE Dishwasher Clamp
