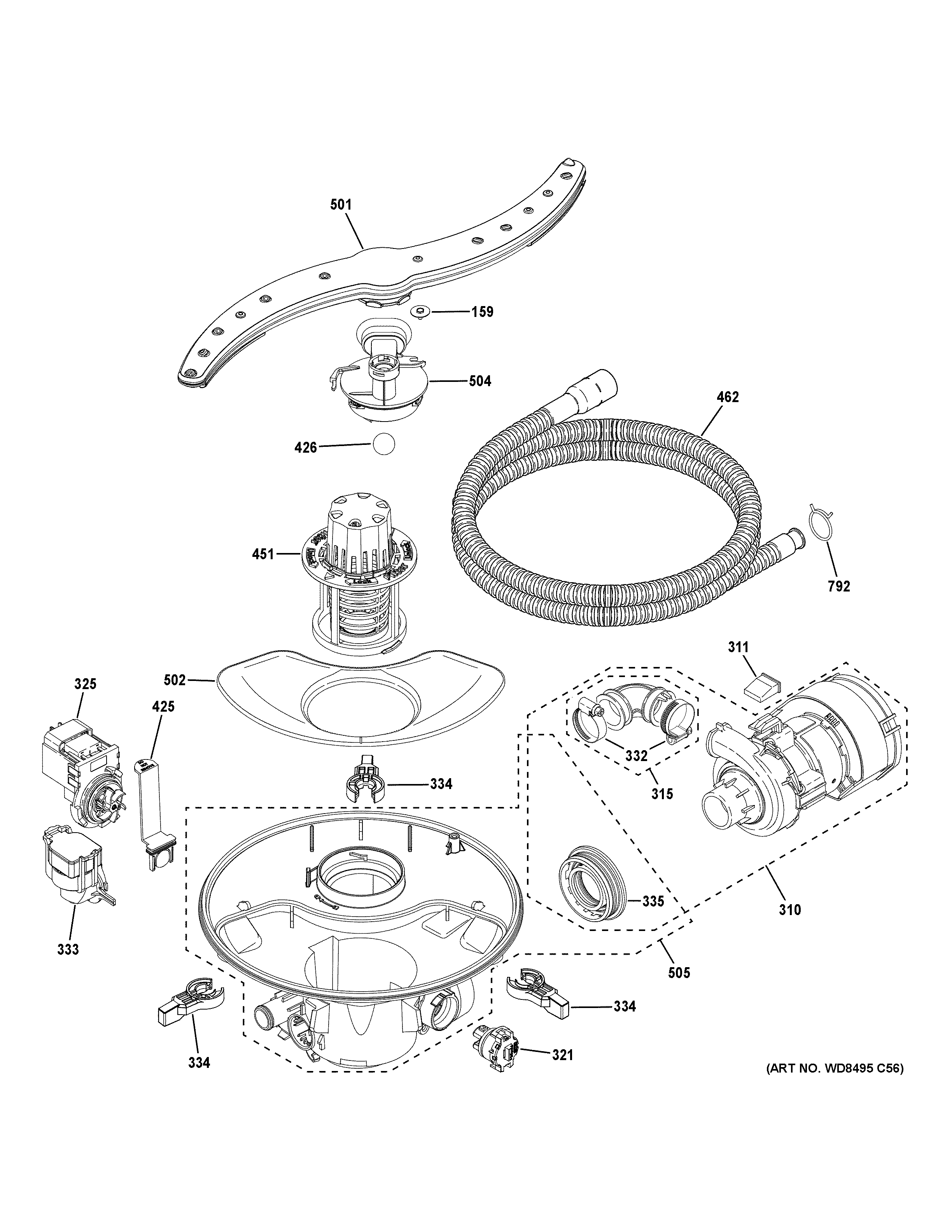

CDT800P2N2S1 MOTOR, SUMP & FILTER ASSEMBLY

CDT800P2N2S1 MOTOR, SUMP & FILTER ASSEMBLY

Written by

in

CDT800P2N2S1 MOTOR, SUMP & FILTER ASSEMBLY

Products

PositionProduct
159WD02X10169 GE Dishwasher Middle Spray Arm Bearing/Screw B-16 Hxw 1/2
310WD19X25700 GE Dishwasher Circulation Pump
311WD02X25462 GE Dishwasher Isolator Pump Hanger
315ELBOW HOSE AND CLAMPS KIT
321DISHWASHER SENSOR
325DRAIN PUMP ASM
332HOSE CLAMP
333PRESSURE SENSOR ASM
334WD01X28338 GE Dishwasher Sump Latch
335WD08X27458 GE Seal
425WD12X25476 GE Dishwasher Check Valve
426WD12X10408 GE Range Filter Cartridge
451WD12X25995 GE Fine Filter and Basket Assembly
462DRAIN TUBE ASM
501WD22X33499 GE Dishwasher Lower Spray Arm – Heat Shield No Longer Required
502WD22X25465 GE Dishwasher Plastic Course Filter
504DIVERTER ASM
505WD19X25867 GE Dishwasher Sump Overmold Service Kit
792WD01X10104 GE Dishwasher Hose Clamp
