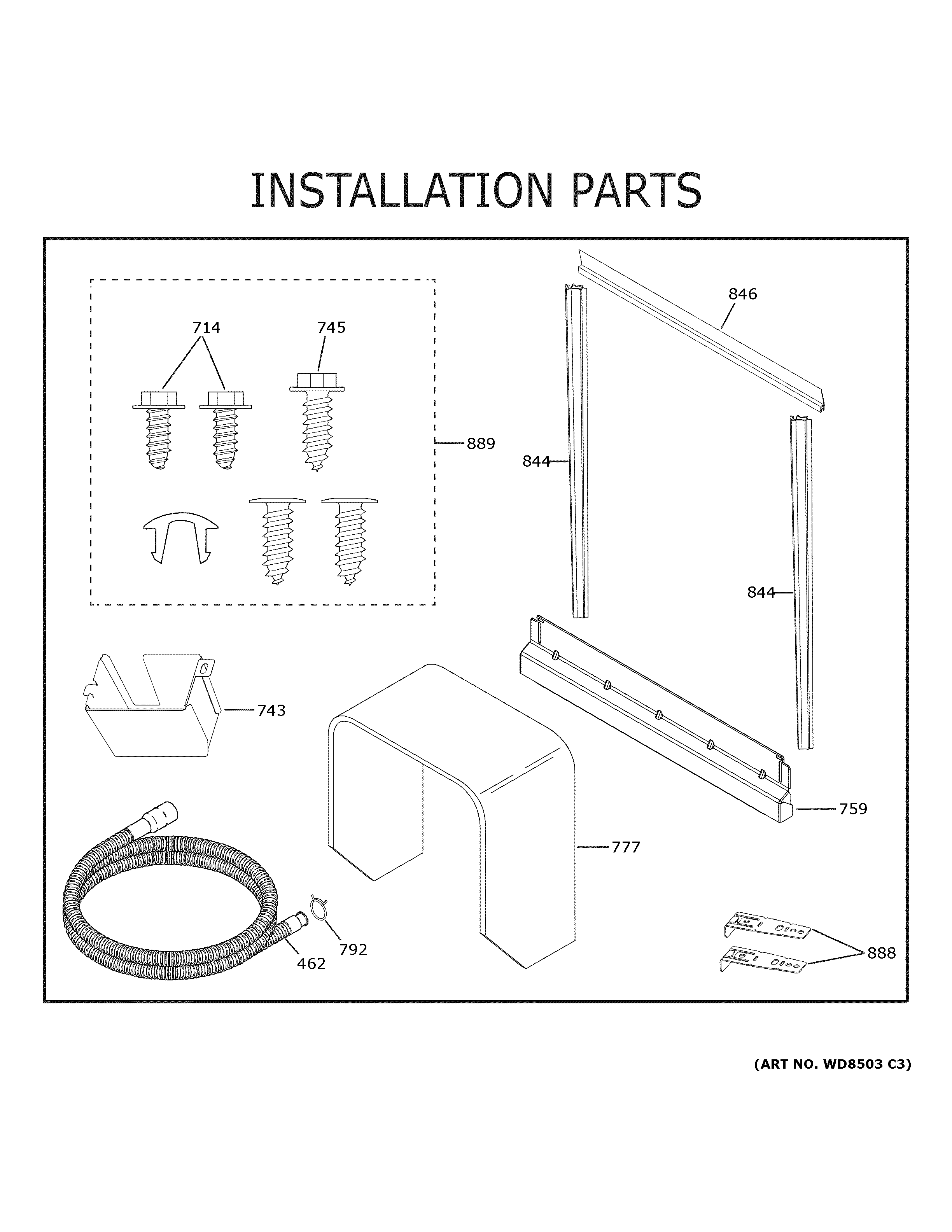

CDT800P2N5S1 INSTALLATION PARSTS

Products

Position	Product
462	DRAIN TUBE ASM
714	WD02X10160 GE Screw
743	WD12X10412 GE Dishwasher Wiring Cover
745	WD01X22514 GE Dishwasher Screw 10-32 GX IHXW 9/16 S
759	TOE KICK
777	WD30X28658 GE Dishwasher Tub Insulation Blanket
792	WD01X10104 GE Dishwasher Hose Clamp
844	WD01X31618 GE Dishwasher Tub Trim Kit
888	WD01X21740 GE Dishwasher Countertop Mounting Bracket
889	WD02X32138 GE Dishwasher Countertop Screws and Plug B
