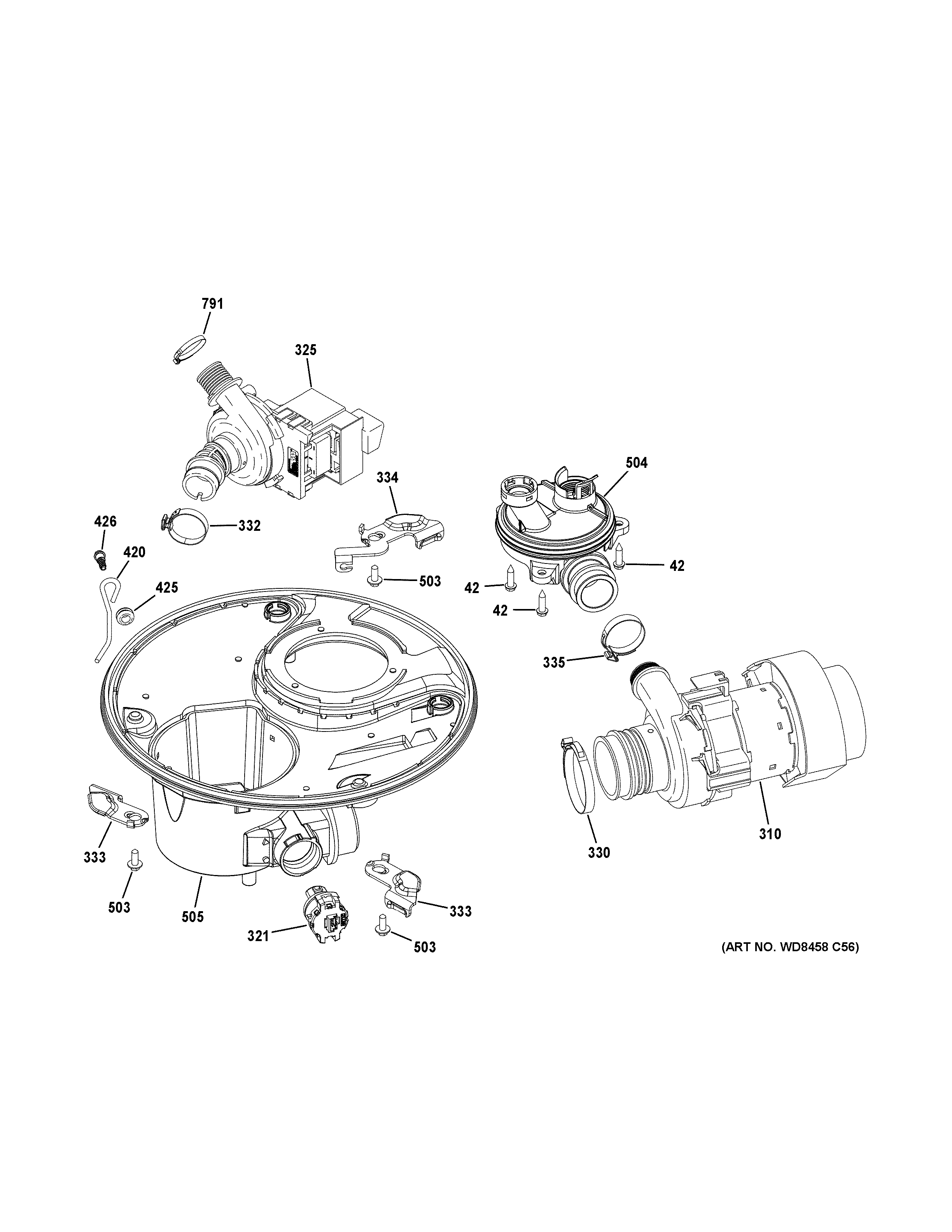

CDT805P2N0S1 SUMP & MOTOR MECHANISM

CDT805P2N0S1 SUMP & MOTOR MECHANISM

Written by

in

CDT805P2N0S1 SUMP & MOTOR MECHANISM

Products

PositionProduct
42WD02X22736 GE Dishwasher Stainless Steel SCR10 16 AB HXW 3/4
310WD26X23258 GE Dishwasher Circulation Pump
321DISHWASHER SENSOR
325WD19X24829 GE Dishwasher Drain Pump Kit
330WD35X10382 GE Dishwasher Piranha Clamps Kit
333WD01X10632 GE Dishwasher Latch Cam
334WD01X10575 GE Dishwasher Latch Cam
420WD01X25218 GE Dishwasher Drain Pump Hanger
425WD01X10101 GE Dishwasher Pump Grommet
426WD02X22781 GE Dishwasher Screw 10-18 x 5/8
503WB01T10103 GE Oven Screw 10-16 AB HXW .532
504WD18X23220 GE Dishwasher Diverter PASSIVE Assembly
505WD18X22782 GE Dishwasher Sump Manifold
791WD01X24246 GE Dishwasher Clamp
