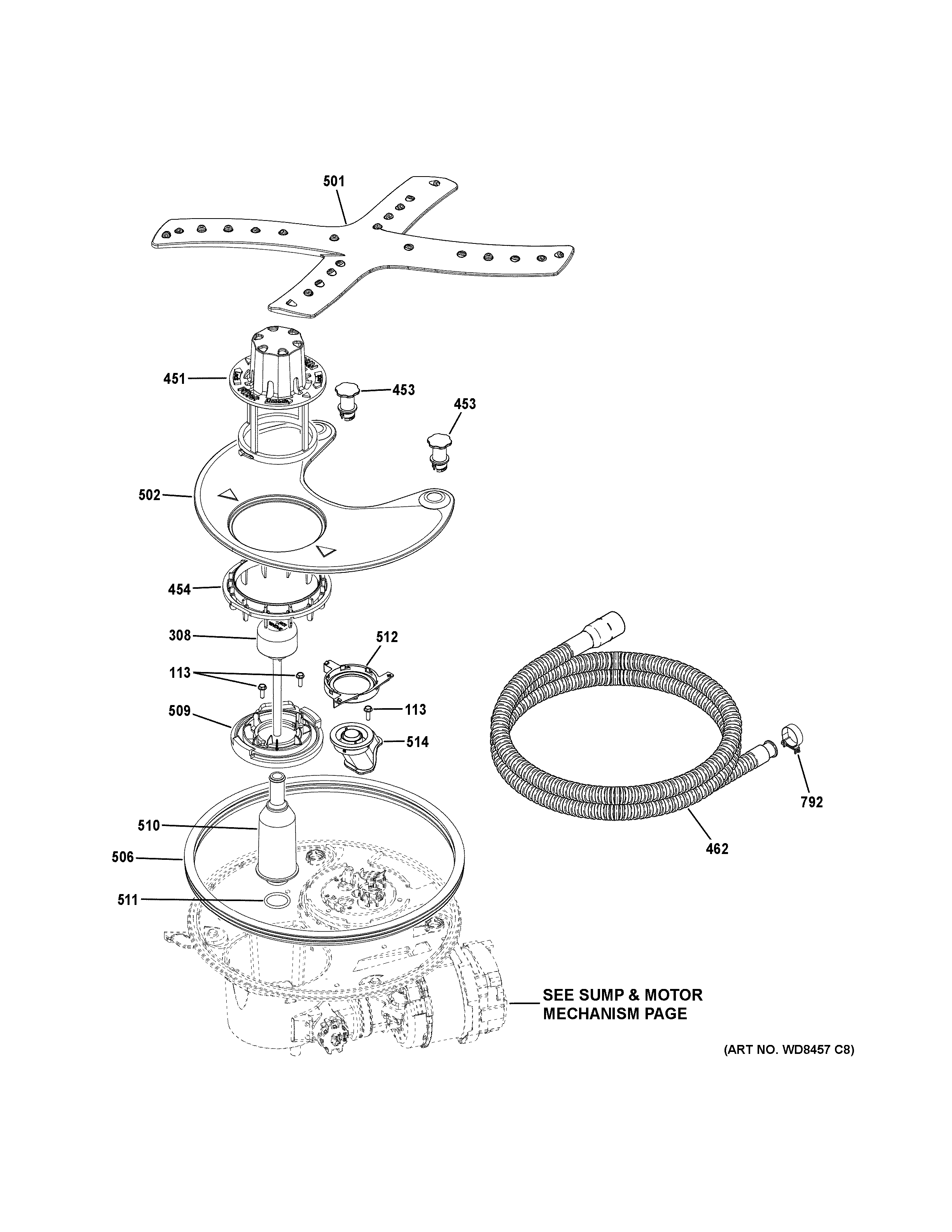

CDT835SSJ0SS SUMP & FILTER ASSEMBLY

CDT835SSJ0SS SUMP & FILTER ASSEMBLY

Written by

in

CDT835SSJ0SS SUMP & FILTER ASSEMBLY

Products

PositionProduct
113WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW
308WD21X22822 GE Dishwasher Flood Float
451WD49X24057 GE Dishwasher Ultra Fine Filter Kit Replacement
453WD24X10057 GE Vent Filter Replacement
454WD12X10419 GE Dishwasher Adapter Filter
462DRAIN TUBE ASM
501ARM SPRAY LOWER ASM
502WD22X10093 GE Dishwasher Coarse Stainless Steel Filter
506WD08X22758 GE Dishwasher Gasket
509WD12X21677 GE Dishwasher Floor Plate Manual
510WD21X22838 GE Dishwasher Flood Stem
511WD01X22825 GE Dishwasher O-ring
512WD12X22852 GE Dishwasher Spray Arm Hub
514WD18X22865 GE Dishwasher Conduit Adapter
792WD01X10104 GE Dishwasher Hose Clamp
