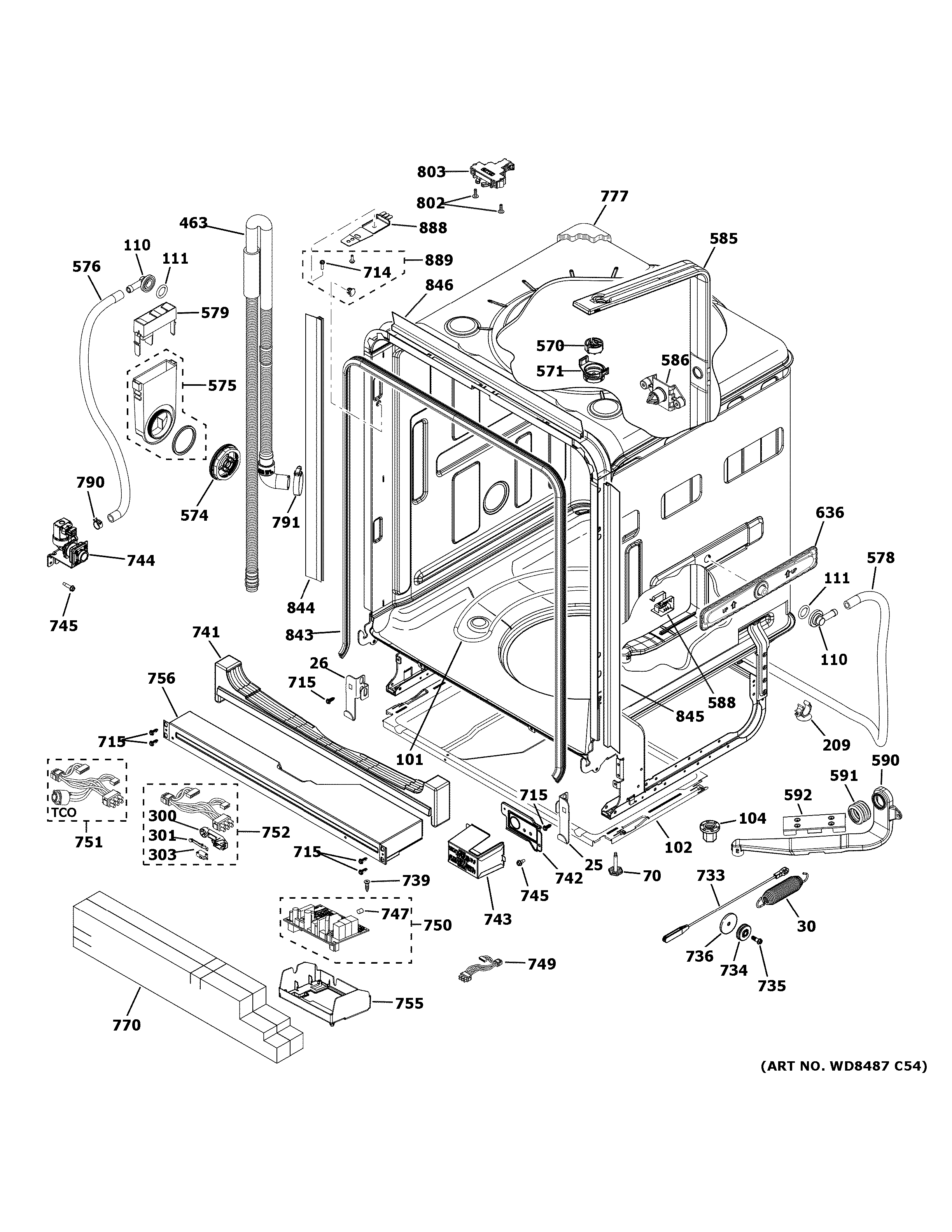

CDT835SSJ5SS BODY PARTS

CDT835SSJ5SS BODY PARTS

Written by

in

CDT835SSJ5SS BODY PARTS

Products

PositionProduct
25WD01X23776 GE Dishwasher Cable Bracket
26WD01X23777 GE Dishwasher Cable Bracket
30SPRING DOOR
70WD02X31882 GE Leveling Leg
101HEATING ELEMENT
102WD18X22842 GE Dishwasher Leak Pan
104WD01X10070 GE Dishwasher Nut
111WD12X25419 GE Dishwasher Inlet Sideblaster
209WD01X22855 GE Dishwasher Clip Hose Side Blaster
300WD01X23496 GE Switch
301LEVER SWITCH FLOOD
303WD21X23498 GE Dishwasher Flood Switch
463HIGH LOOP DRAIN HOSE
570WD22X20689 GE Dishwasher Impeller
571WD22X20688 GE Dishwasher Hub
574WD49X25081 GE Dishwasher Fill Funnel Service Kit
576WD24X10064 GE Dishwasher Fill Hose
578WD21X20339 GE Dishwasher Fill Hose
579WD12X25080 GE Dishwasher Fill Funnel Cap
585WD12X21681 GE Dishwasher Main Conduit
586WD12X20118 GE Dishwasher Docking Port Stainless Steel
588WD01X23982 GE Dishwasher Conduit Clip
590WD12X22862 GE Dishwasher Silverware Conduit
591WD01X22866 GE Dishwasher Silverware Bellow
592WD01X22864 GE Heat Shield Conduit
636WD22X21034 GE Dishwasher Side Blaster Assembly
714WD02X10160 GE Screw
715WD02X10220 GE Dishwasher Hex Head 10-32 3/8" Screw
733DOOR BALANCE SERVICE KIT
734WD16X21836 GE Dishwasher Pulley
735WD01X21837 GE Dishwasher Screw 10-32
736WD01X20593 GE Dishwasher Friction Washer
739WZ5X158D GE Screw Package of 12
741WD01X23558 GE Dishwasher Front Tub Spacer
742WD12X25060 GE Junction Box Bracket Assembly
743WD12X10412 GE Dishwasher Wiring Cover
744WD15X22948 GE Dishwasher Water Inlet Valve
745WD01X22514 GE Dishwasher Screw 10-32 GX IHXW 9/16 S
747WD21X25696 GE Dishwasher Fuse
749WD21X23559 GE Dishwasher Wire Harness
750WD21X32161 GE Service Machine Configuration Control
751WD21X25082 GE Dishwasher AC Harness Assembly
752WD21X25084 GE Dishwasher Direct Connect Harness Assembly
755WD30X24239 GE Dishwasher Bottom Control Box
756WD27X32298 GE Control Box Assembly Top
770WD01X23983 GE Dishwasher Bag Insulation Assembly
777TUB INSULATION
790WD01X22786 GE Dishwasher Hose Clamp
791WD01X24246 GE Dishwasher Clamp
802WR01X10380 GE Refrigerator Stainless Steel Screw 8-18 AB TSQ 5/8
803WD21X10490 GE Dishwasher Standard Tub Side Door Latch
843WD08X22095 GE Dishwasher Tub Gasket
845WD01X31858 GE Tub Trim Kit
888WD01X21740 GE Dishwasher Countertop Mounting Bracket
889CT SCREW ASM
