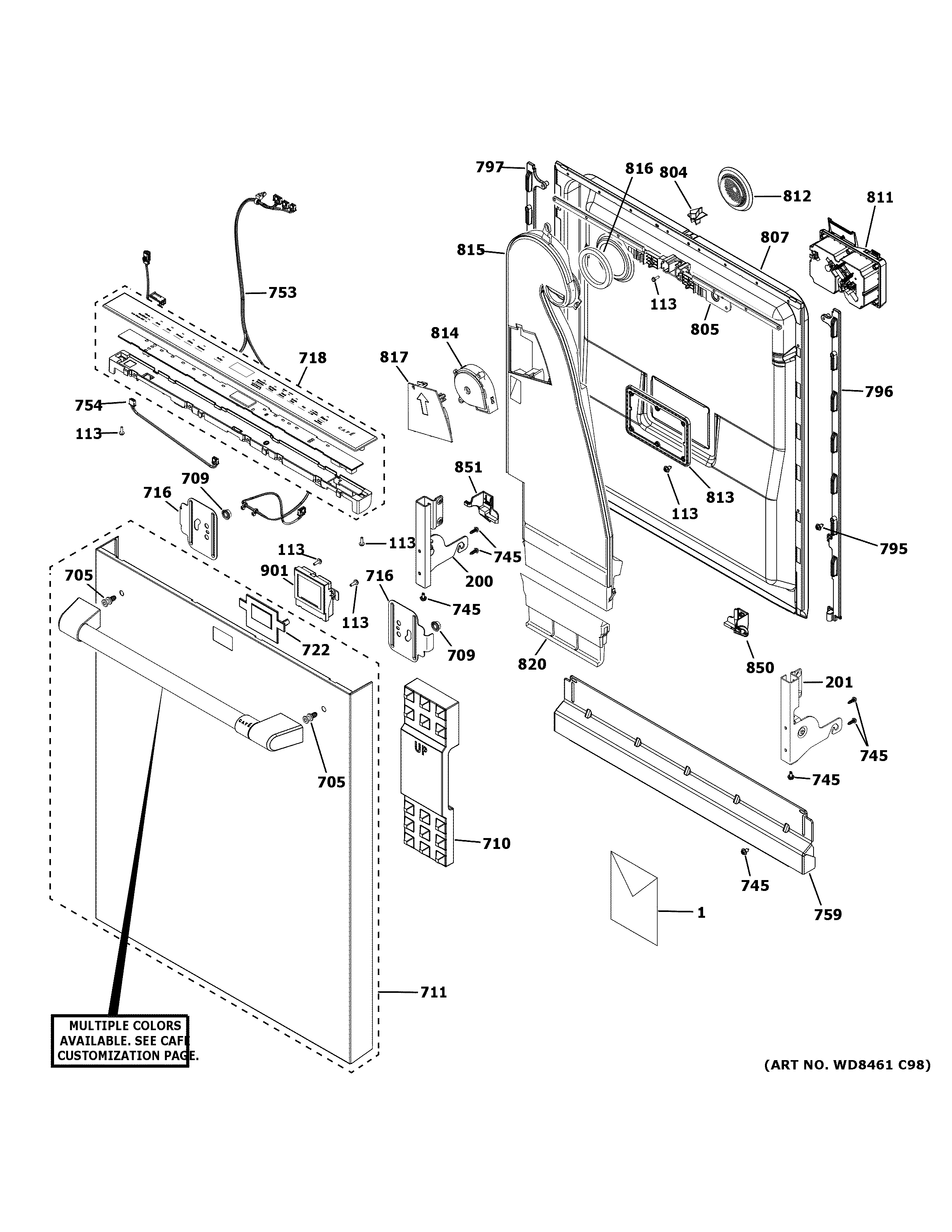

CDT855P2N3S1 ESCUTCHEON & DOOR ASSEMBLY

CDT855P2N3S1 ESCUTCHEON & DOOR ASSEMBLY

Written by

in

CDT855P2N3S1 ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1PM MINI MANUAL AND WIRING
1PM OWNERS MANUAL
1PM QUICK OWNERS MANUAL
1PM INSTALL INSTRUCTIONS
113WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW
200WD14X23739 GE Dishwasher Arm Hinge Assembly Left Hand
201WD14X23738 GE Dishwasher Right Hand Arm Hinge Assembly
705WR01X11007 GE Refrigerator Fastener Door Handle
709WD02X25303 GE Lock Nut 5/16-18 x 1/2"
710WD01X10585 GE Dishwasher Door Foam Block
711WD34X25771 GE Dishwasher Cafi Stainless Outer Door
716WD01X25862 GE Dishwasher Handle Bracket
718WD21X31880 GE Café Dishwasher Control Unit
722WD01X25671 GE Assembly Tinted Lens
745WD01X22514 GE Dishwasher Screw 10-32 GX IHXW 9/16 S
753WD21X25672 GE Dishwasher Door Harness Assembly
754WD21X25669 GE Dishwasher LED Board Harness
759TOE KICK
795WD02X22628 GE Dishwasher Plastite Screw T15 8-16
796WD01X22836 GE Dishwasher Right Hand Attach Strip
797ATTACHMENT STRIP LH
804WD13X10071 GE Dishwasher Door Strike
805WD13X22837 GE Dishwasher Top Strip Attachment
807WD27X25997 GE Dishwasher Stainless Inner Door Assembly
811WD12X32799 GE Dishwasher Detergent Module
812WD01X25673 GE Dishwasher Vent Cover
813WD12X10462 GE Dishwasher Detergent Plate
814WD08X26578 GE Dishwasher Blower Gasket Assembly
815WD12X30518 GE Dishwasher Door Conduit Vent
816DOOR VENT SEAL
817WD01X25633 GE Fan Cover Conduit
820WD24X26142 GE Dishwasher Door Vent
850WD01X26418 GE Dishwasher Right Hand Door Trim
851WD01X26419 GE Dishwasher Door Trim Left Hand
901WD21X25558 GE Dishwasher LCD Board and Housing Assembly
