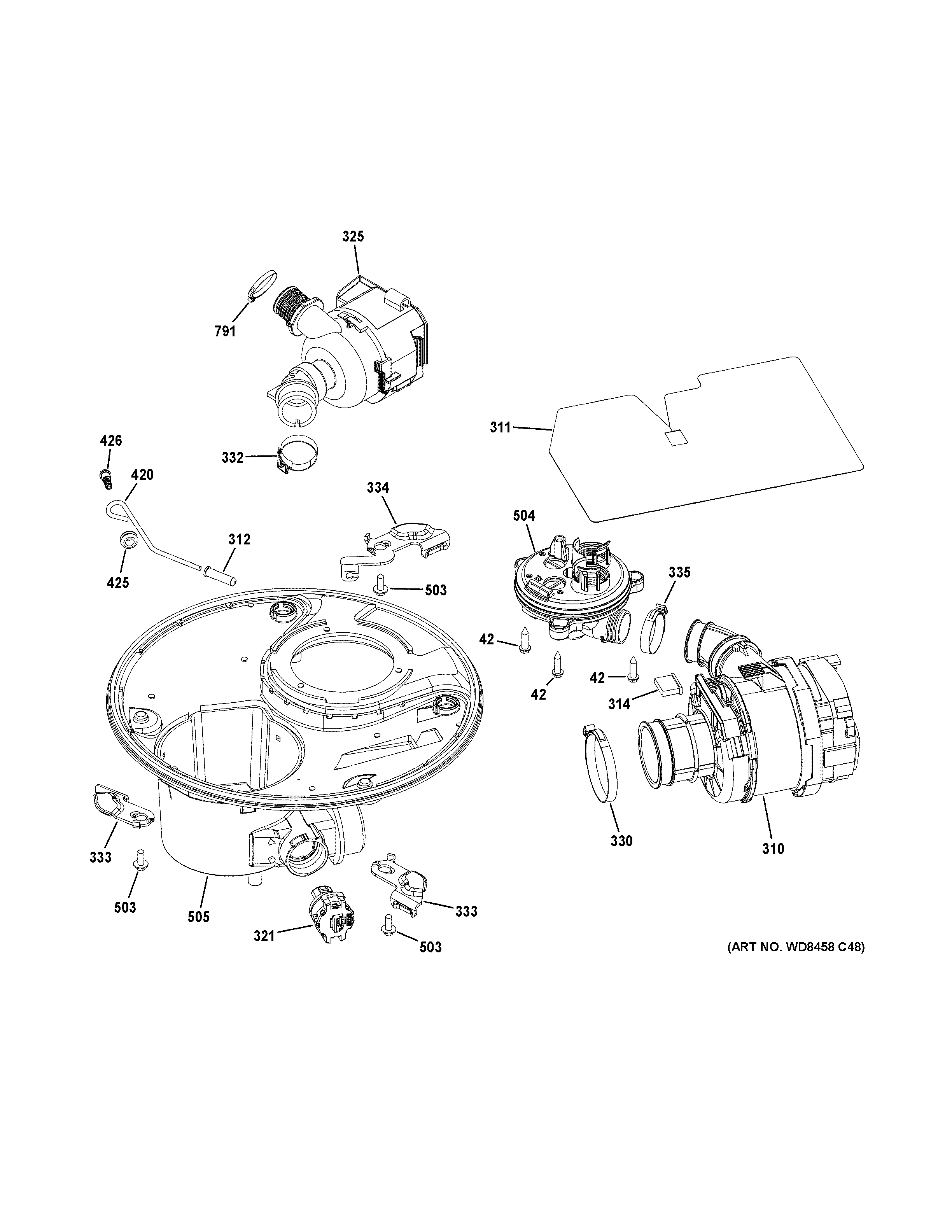

CDT865SSJ0SS SUMP & MOTOR MECHANISM

CDT865SSJ0SS SUMP & MOTOR MECHANISM

Written by

in

CDT865SSJ0SS SUMP & MOTOR MECHANISM

Products

PositionProduct
42WD02X22736 GE Dishwasher Stainless Steel SCR10 16 AB HXW 3/4
310WD26X25103 GE Dishwasher Variable Wash Pump Kit
311WD01X20212 GE Dishwasher Main Pump Shield
312WD01X22891 GE Grommet Pump Harness
314WD01X22890 GE Isolator Grommet
321DISHWASHER SENSOR
325WD26X25104 GE Pump Drain
330WD01X20302 GE Clamp
333WD01X10632 GE Dishwasher Latch Cam
334WD01X10575 GE Dishwasher Latch Cam
335WD35X10382 GE Dishwasher Piranha Clamps Kit
420WD01X20595 GE Dishwasher Hanger & Grommet Assembly
425WD01X10101 GE Dishwasher Pump Grommet
426WD02X22781 GE Dishwasher Screw 10-18 x 5/8
503WB01T10103 GE Oven Screw 10-16 AB HXW .532
504WD18X23221 GE Dishwasher Diverter Assembly
505WD18X22782 GE Dishwasher Sump Manifold
791WD01X24246 GE Dishwasher Clamp
