CDT865SSJ2SS BODY PARTS (2)

CDT865SSJ2SS BODY PARTS (2)

Written by

in

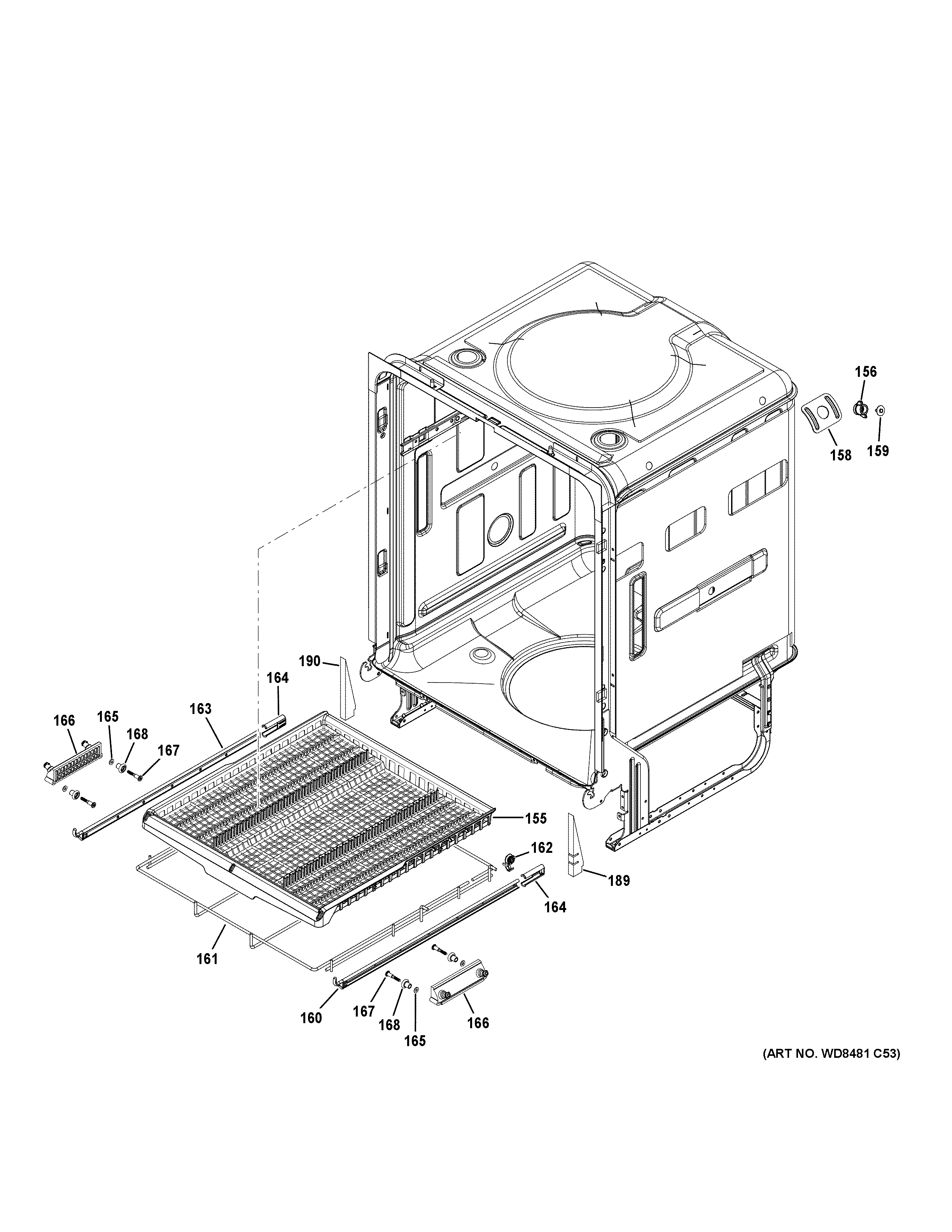

CDT865SSJ2SS BODY PARTS (2)

Products

PositionProduct
155WD28X22348 GE Dishwasher Third Rack Tray
156WD02X20685 GE Dishwasher Tub Mount Sleeve
158WD30X22340 GE Dishwasher Tub Mount Brace
159WD02X10169 GE Dishwasher Middle Spray Arm Bearing/Screw B-16 Hxw 1/2
160WD27X22350 GE Dishwasher Rail and Endcap Assembly
161WD30X22343 GE Dishwasher Wire Frame Assembly
162WD30X22347 GE Dishwasher Roller and Bracket
163WD27X22351 GE Dishwasher Rail Assembly
164WD02X22342 GE Dishwasher Rear Endcap
165WD3X767 GE Dishwasher Washer
168WD30X23280 GE Dishwasher Tub Third Rack
189WD01X22898 GE Right Offset Leg Shim
190WD01X22899 GE Left-Hand Offset Leg Shim
