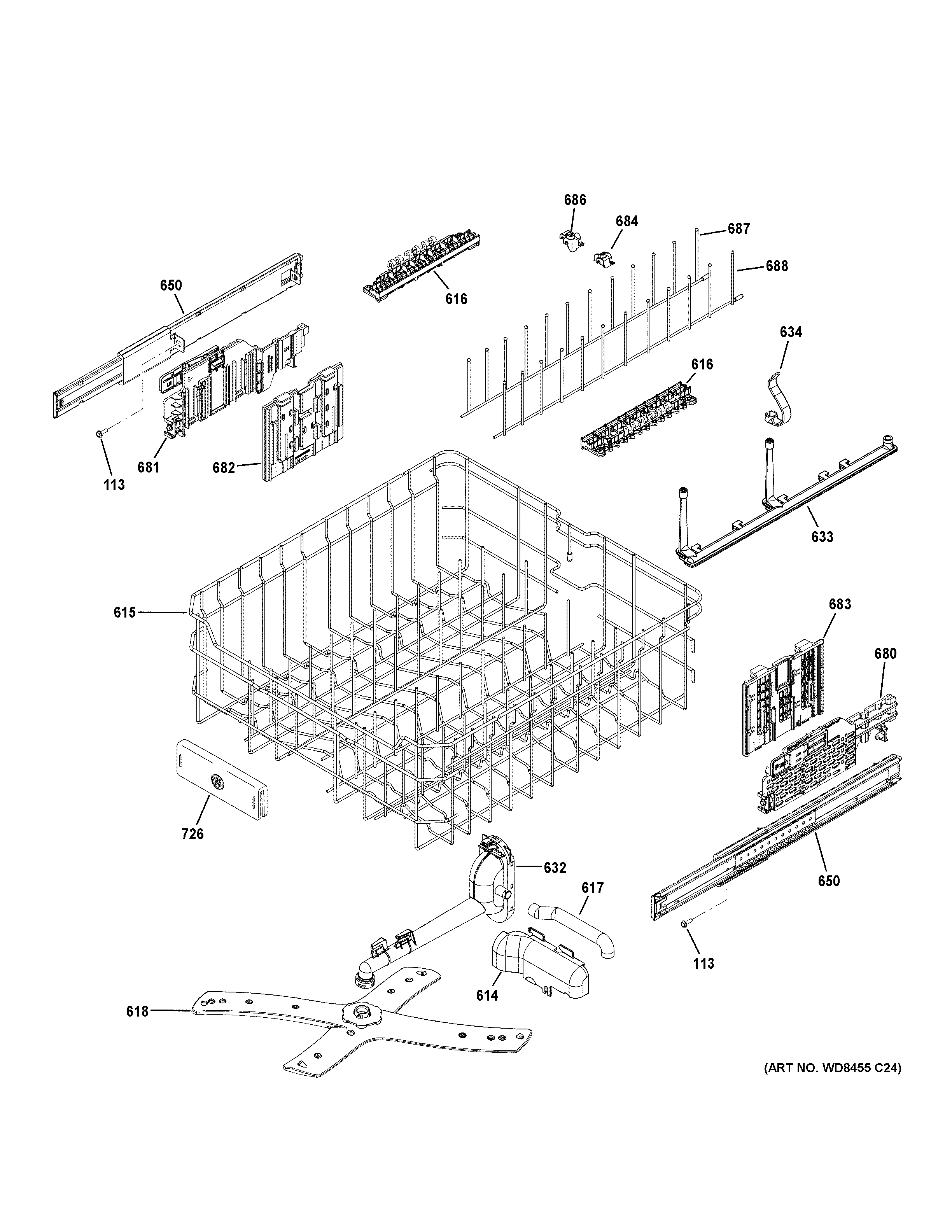

CDT865SSJ2SS UPPER RACK ASSEMBLY

CDT865SSJ2SS UPPER RACK ASSEMBLY

Written by

in

CDT865SSJ2SS UPPER RACK ASSEMBLY

Products

PositionProduct
113WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW
614WD24X20263 GE Dishwasher Bottle Blaster Cover
615WD28X30227 GE Dishwasher Upper Rack Assembly
616WD28X20312 GE Dishwasher Shelf Assembly
617WD24X20262 GE Dishwasher Hose Bottle Blaster
618WD22X22853 GE Dishwasher Middle Spray Arm Assembly
632WD12X34182 GE Dishwasher Mid Conduit Blaster
633WD22X25300 GE Dishwasher Bottle Blaster Assembly
634WD12X25301 GE Dishwasher Bottle Washer Clip
650WD30X20110 GE Dishwasher Upper Rack Inner Rail Assembly
680WD12X20108 GE Dishwasher Bracket Assembly Upper Rack
681WD12X20109 GE Dishwasher Bracket Assembly Upper Rack
682WD12X20112 GE Dishwasher Fixed Bracket
683WD12X20113 GE Dishwasher Fixed Bracket
684WD28X20311 GE Dishwasher Flat Rack FDT Clip
686WD28X20310 GE Dishwasher Flat Rack FDT Clip
687WD28X20194 GE Dishwasher FDT Assembly Upper Coated
688WD28X20193 GE Dishwasher FDT Assembly Upper Coated
726WD09X22840 GE Dishwasher Rack Handle Cover
