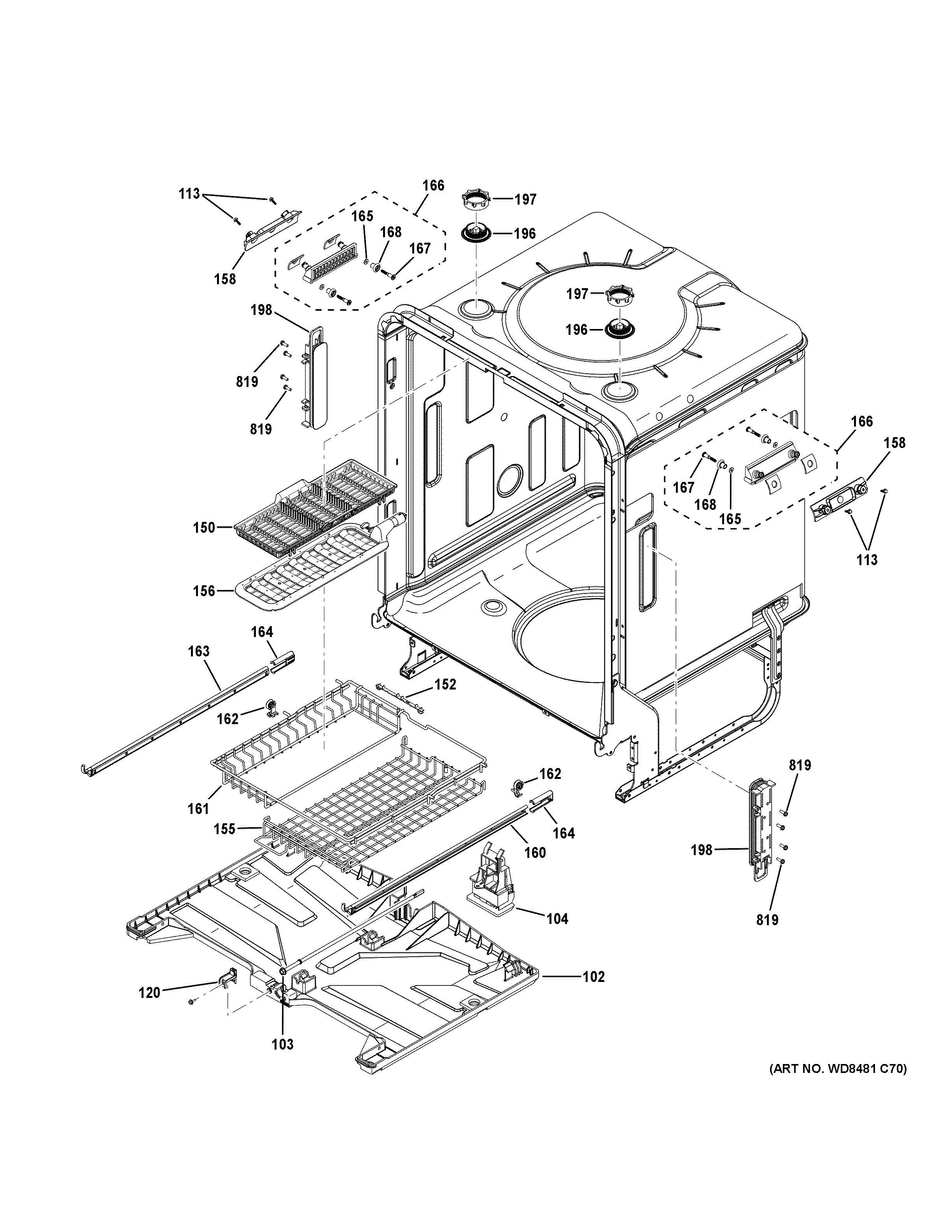

CDT888P3V2D1 BODY PARTS (2)

CDT888P3V2D1 BODY PARTS (2)

Written by

in

CDT888P3V2D1 BODY PARTS (2)

Products

PositionProduct
102LEAK PAN AND GASKET
103LEVELING SCREW
104WD16X25651 GE Dishwasher Pan Levelling Leg and Gear AS
113WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW
120WD21X20552 GE Dishwasher Leak Pan Sensor
150THIRD RACK CUTLERY TRAY
152THIRD RACK RETAINER
155THIRD RACK WIREFRAME
156THIRD RACK MANIFOLD
158WD01X32859 GE Third Rack Tub Mount Brace
160WD27X22350 GE Dishwasher Rail and Endcap Assembly
161THIRD RACK BASKET WIREFORM
162WD30X22347 GE Dishwasher Roller and Bracket
163WD27X22351 GE Dishwasher Rail Assembly
164WD02X22342 GE Dishwasher Rear Endcap
165WD3X767 GE Dishwasher Washer
166WD01X32858 GE Third Rack Tub Mount Assembly
168WD30X23280 GE Dishwasher Tub Third Rack
196WD21X28180 GE Dishwasher LED Lights and Board Assembly
197WD21X20496 GE Dishwasher Top Light Service Kit Assembly
198SIDE LED LIGHTS AND BOARD
819WD01X27719 GE Screw PL HXW 8-18 1/2
