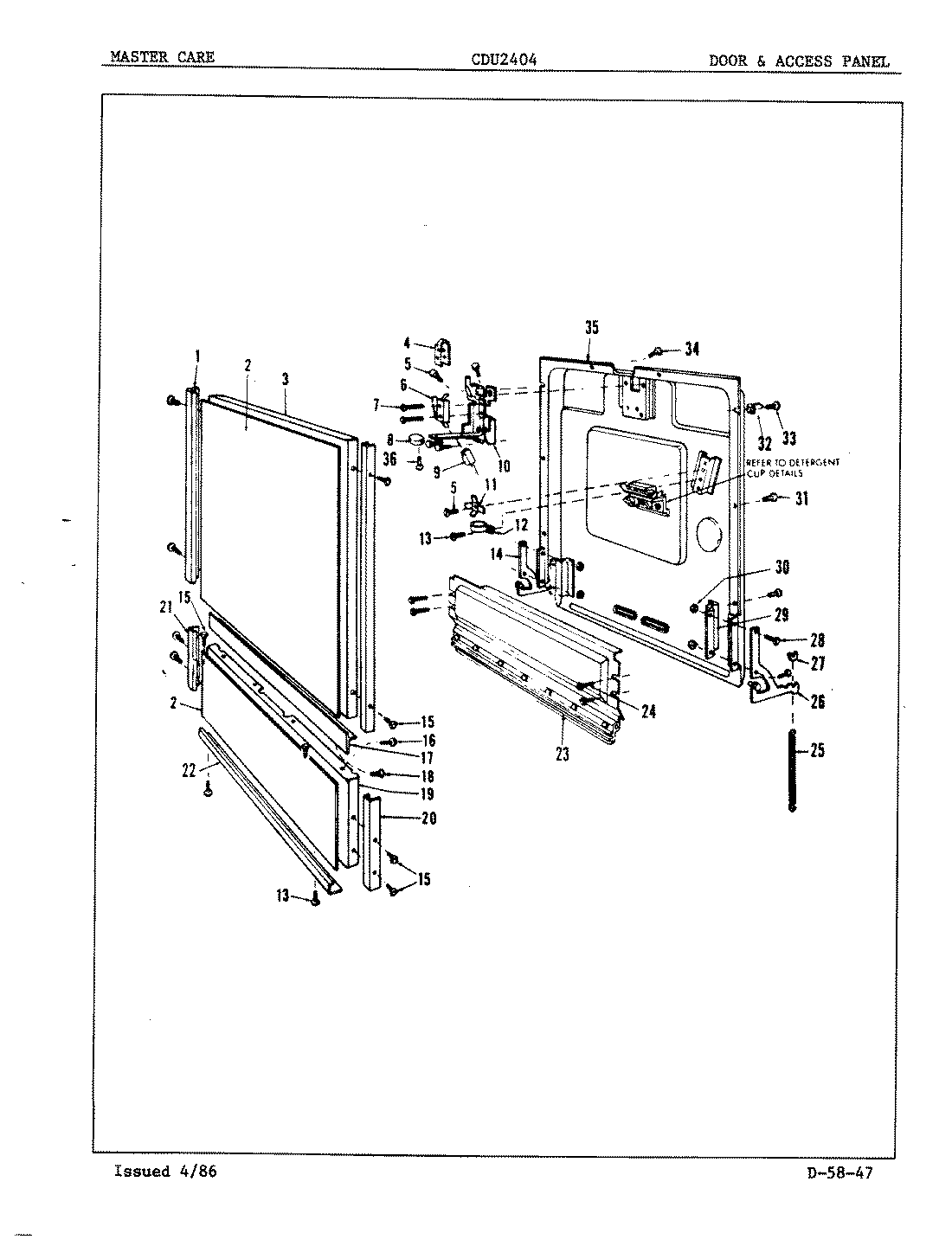

CDU2404 03 – DOOR & ACCESS PANEL

Products

Position	Product
1	DOOR TRIM
2	INSERT, DOOR PANEL
3	OUTER PANEL
4	SWITCH COVER
5	SCREW
6	MAY 807043
7	SCREW
8	MAY 806398
9	INSULATOR
10	LATCH ASM
11	GROUND TERMINAL
12	MAY 807212
13	SCREW
14	LH ARM
15	MAY 807293
16	MAY 807784
17	DOOR TRIM
18	MAY 807501
19	PANEL
20	RH TRIM
21	LH TRIM
22	BOTTOM TRIM
23	MAY 807044
24	SCREW
25	DOOR SPRING
26	RH ARM
27	SPRING PAD
28	MAY 803311
29	ARM BRACKET
30	MAY 800928
31	SCREW
32	DOOR GUIDE
33	MAY 806926
34	SCREW
35	INNER PANEL
36	SCREW
