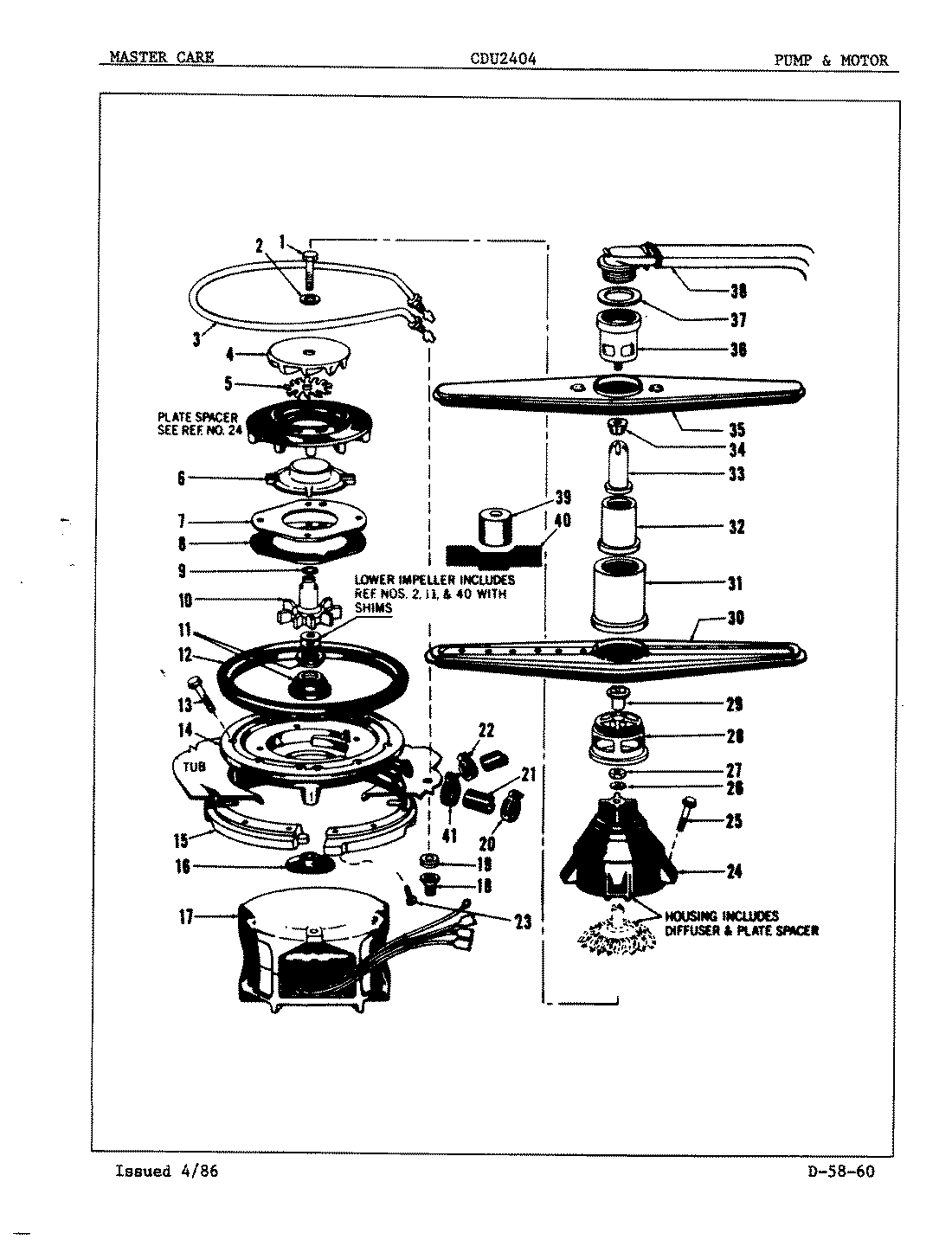

CDU2404 05 – PUMP & MOTOR

Products

Position	Product
1	MAY 806353
2	MAY 803367
3	HEATER KIT
4	UPPER IMPELLER
5	MACERATOR BLADE
6	SHROUD
7	PUMP PLATE
8	GASKET
9	O RING
10	IMPELLER KIT
11	GASKET
12	MAY 807710
13	MAY 807268
14	PUMP HOUSING
15	CLAMP RING
16	MAY D800062
17	MOTOR
18	NUT
19	GROMMET
20	CLAMP
21	HOSE CONNECTOR
22	CLAMP
23	MAY 806945
24	PUMPHOUSING KIT
25	SCREW
26	MAY 804526
27	MAY 804527
28	LOWER BEARING
29	NUT
30	MAY 808177
31	TOWER BASE
32	MAY 808179
33	MAY 808180
34	MAY 808181
35	MAY 808182
36	MAY 808183
37	MAY 808184
38	ELBOW & TUBE
39	SEAL TOOL
40	SHIM GAUGE
41	MAY 808186
