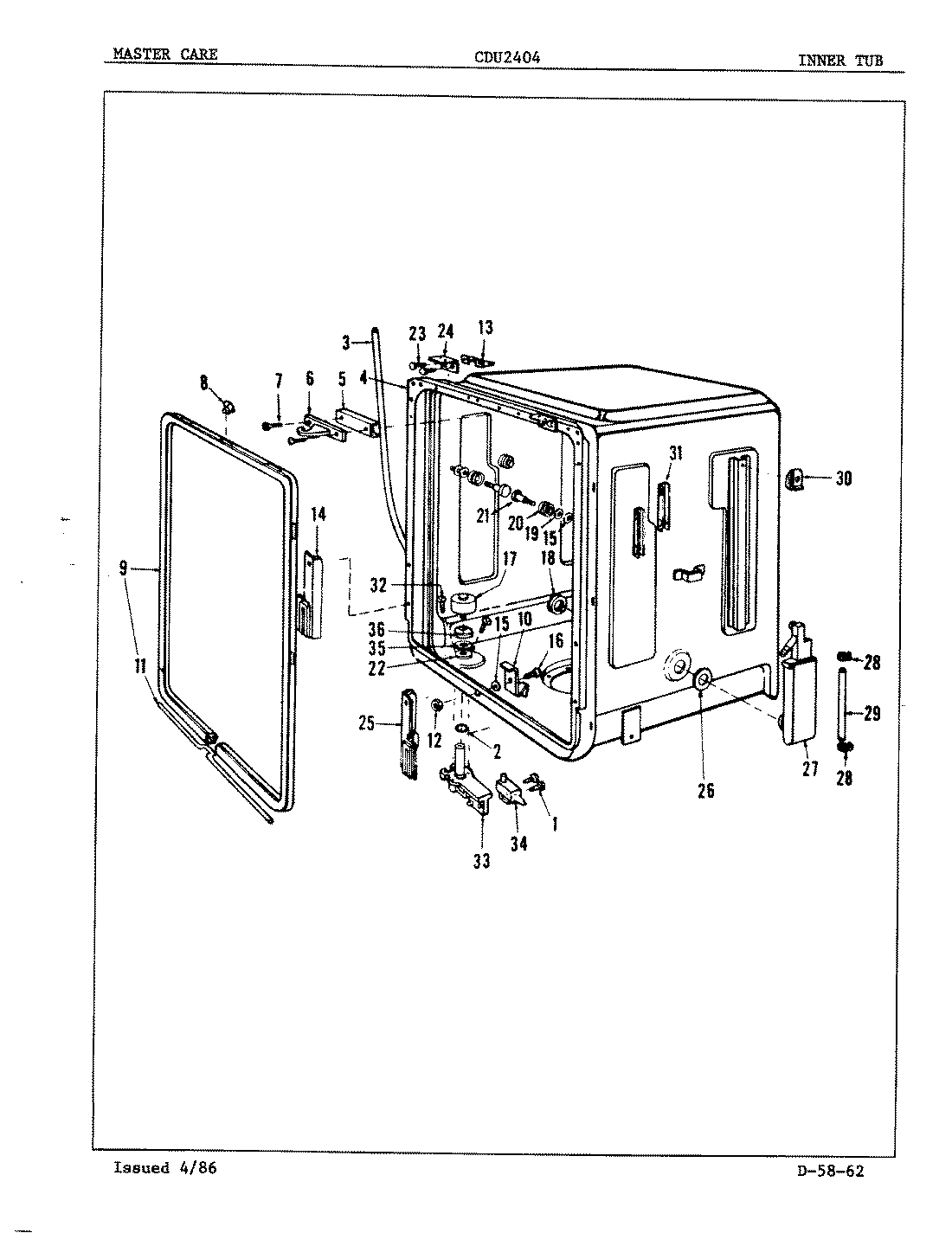

CDU2404 07 – TUB (INNER)

CDU2404 07 – TUB (INNER)

Written by

in

CDU2404 07 – TUB (INNER)

Products

Position	Product
1	BOLT
2	O RING
3	MAY 806089
4	MAY 808187
5	STRIKE SHIM
6	STRIKE
7	MAY 806890
8	CLIP KIT (TUB GASKET)
9	MAY 808071
10	MAY 808115
11	MAY 808114
12	MAY 803346
13	MAY 807018
14	LH GUIDE
15	SEALER
16	MAY 803319
17	MAY 804630
18	MAY 805669
19	MAY 803367
20	ROLLER
21	SCREW
22	GASKET
23	SCREW
24	CLIP
25	RH GUIDE
26	WASHER
27	MAY 806470
28	MAY 807813
29	INLET TUBE
30	MAY 806291
31	TAPPING PLATE
32	MAY 807268
33	FLOAT ASM
34	FLOAT SWITCH
35	PLATE, FLOAT TUBE
36	MAY 804149
