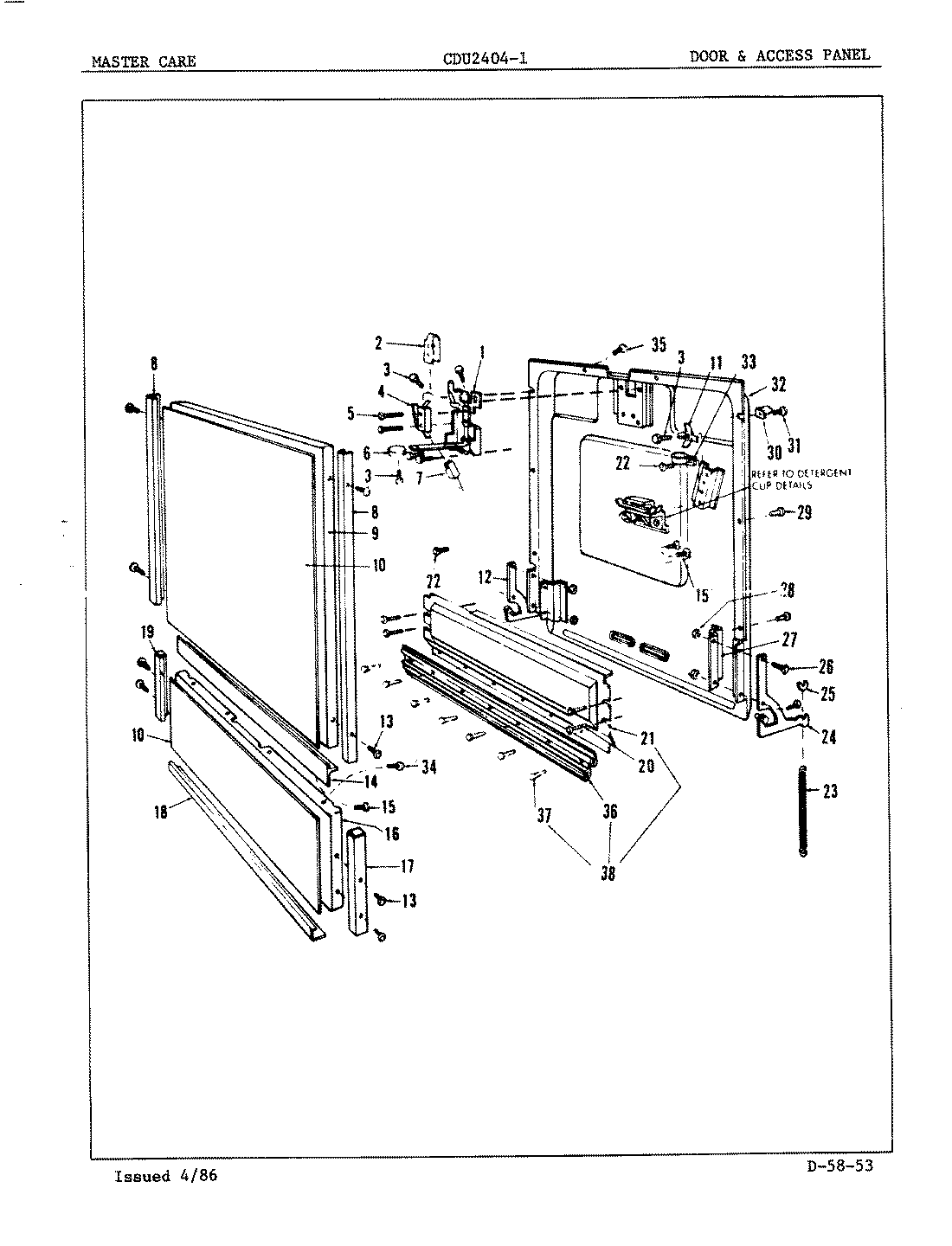

CDU2404-1 03 – DOOR & ACCESS PANEL

Products

Position	Product
1	LATCH ASM
2	SWITCH COVER
3	SCREW
4	MAY 807043
5	MAY 803051–
6	MAY 806398
7	INSULATOR
8	DOOR TRIM
9	OUTER PANEL
10	INSERT, DOOR PANEL
11	GROUND TERMINAL
12	LH ARM
13	MAY 807293
14	DOOR TRIM
15	MAY 807501
16	PANEL
17	RH TRIM
18	BOTTOM TRIM
19	LH TRIM
20	SCREW
21	MAY 808329
22	SCREW
23	DOOR SPRING
24	RH ARM
25	SPRING PAD
26	MAY 803311
27	ARM BRACKET
28	MAY 800928
29	SCREW
30	DOOR GUIDE
31	MAY 806976
32	INNER PANEL
33	MAY 807212
34	MAY 807784
35	SCREW
36	MAY 808331
37	MAY 808330
38	VENT BAFFLE
