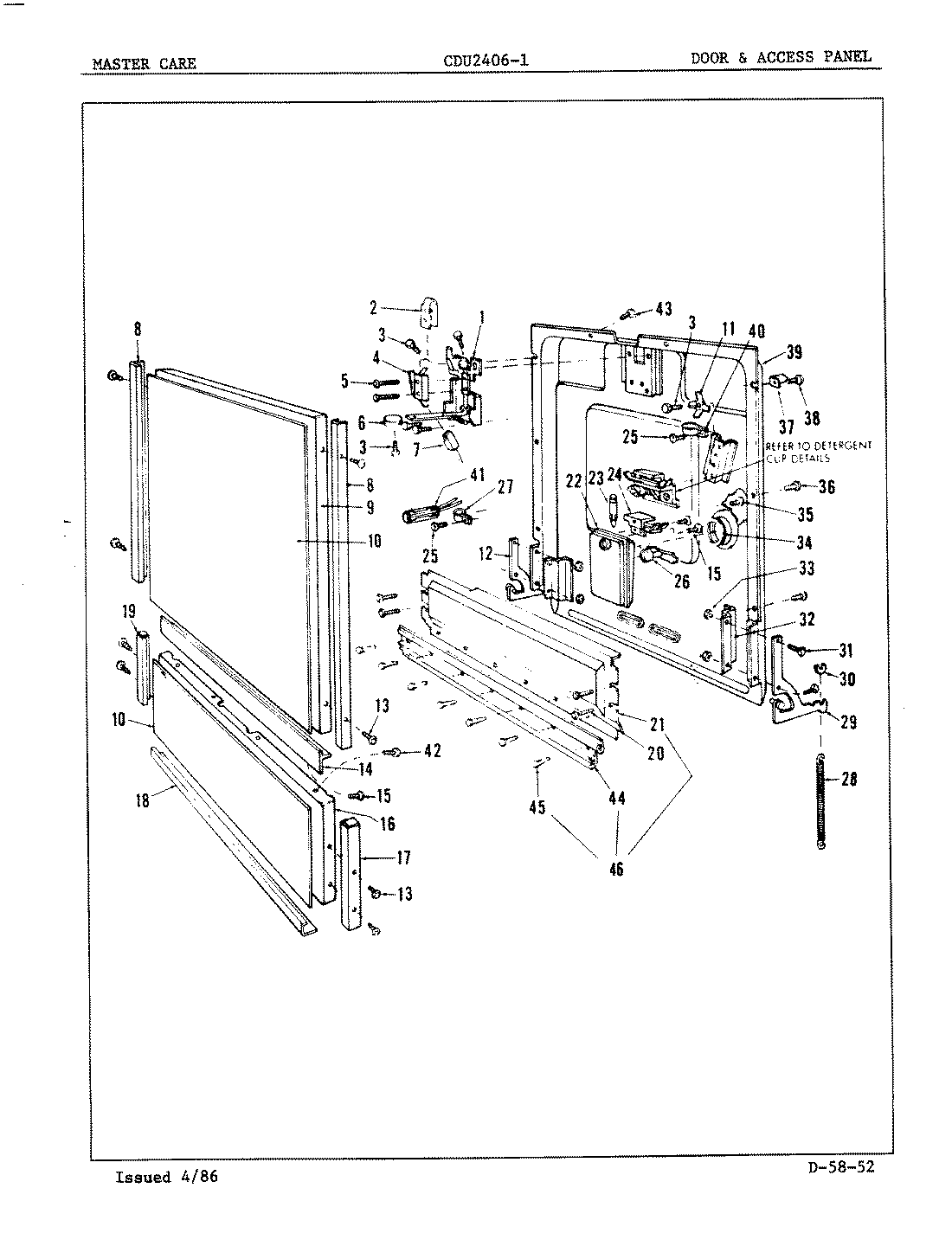

CDU2406-1 03 – DOOR & ACCESS PANEL

CDU2406-1 03 – DOOR & ACCESS PANEL

Written by

in

CDU2406-1 03 – DOOR & ACCESS PANEL

Products

Position	Product
1	LATCH ASM
2	SWITCH COVER
3	SCREW
4	MAY 807043
5	MAY 803051–
6	MAY 806398
7	INSULATOR
8	DOOR TRIM
9	OUTER PANEL
10	INSERT, DOOR PANEL
11	GROUND TERMINAL
12	LH ARM
13	MAY 807293
14	DOOR TRIM
15	MAY 807501
16	PANEL
17	RH TRIM
18	BOTTOM TRIM
19	LH TRIM
20	SCREW
21	MAY 808329
22	DISPENSER
23	MAY 806757
24	BRACKET
25	SCREW
26	MAY 806843
27	MAY 805340
28	DOOR SPRING
29	RH ARM
30	SPRING PAD
31	MAY 803311
32	ARM BRACKET
33	MAY 800928
34	GROMMET
35	SCREW
36	SCREW
37	DOOR GUIDE
38	MAY 806976
39	INNER PANEL
40	MAY 807212
41	MAY 807462
42	MAY 807784
43	SCREW
44	MAY 808331
45	MAY 808330
46	VENT BAFFLE
