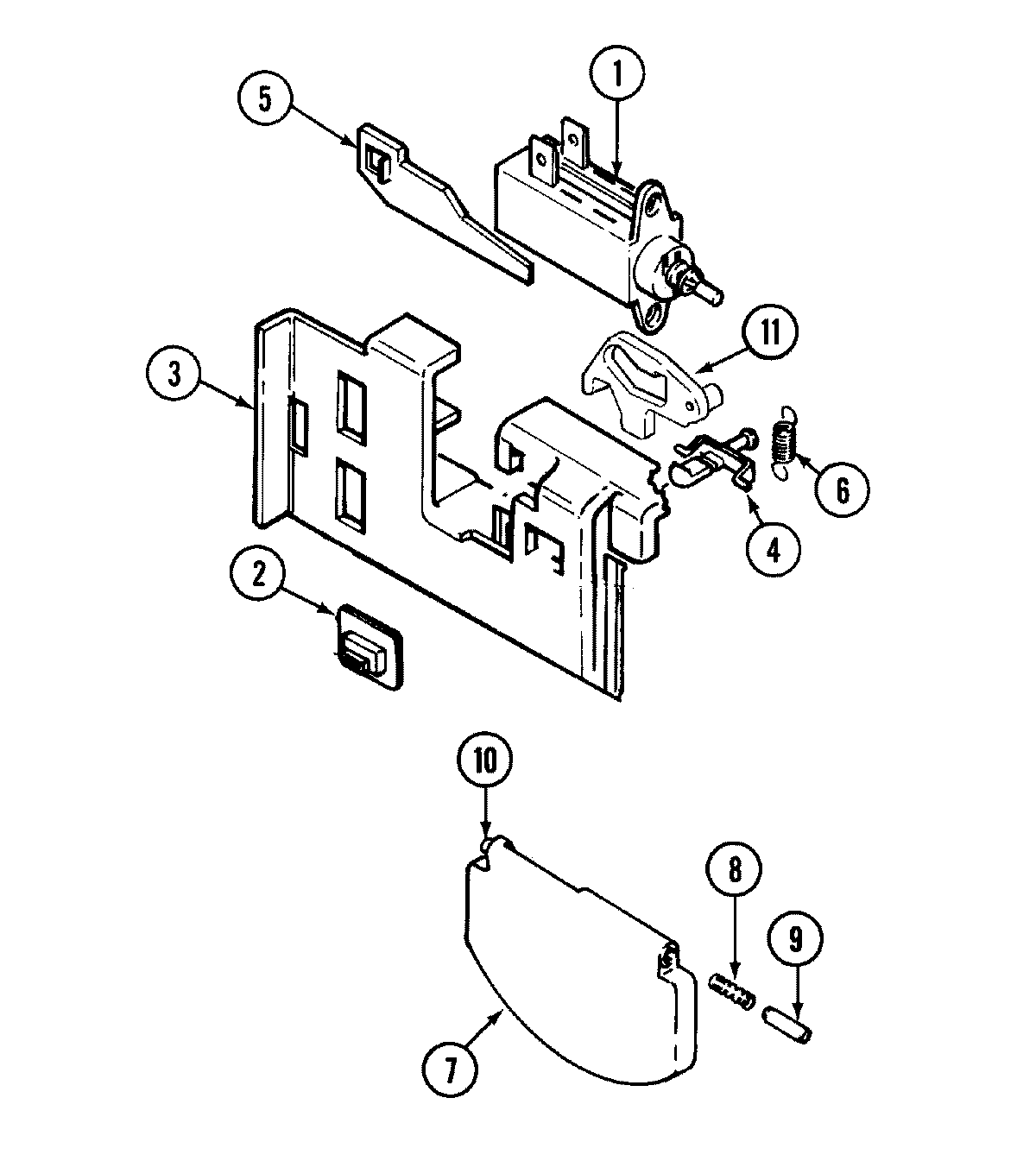

CDU250B 04 – RINSE AID & SOAP DISPENSER

CDU250B 04 – RINSE AID & SOAP DISPENSER

Written by

in

CDU250B 04 – RINSE AID & SOAP DISPENSER

Products

PositionProduct
1WP902899 Whirlpool Dishwasher Wax Motor
2MAY Y913191
3WP99001288 Whirlpool Dishwasher Retainer
4WP99001291 Whirlpool Dishwasher Latch
5MAY 99001289
6WPW10116816 Whirlpool Dishwasher Spring
7MAY 903483
8MAY Y912547
9WP6-912678 Whirlpool Hinge Pin
10WPY912679 Whirlpool Dishwasher Hinge Pin
11MAY 99001287
