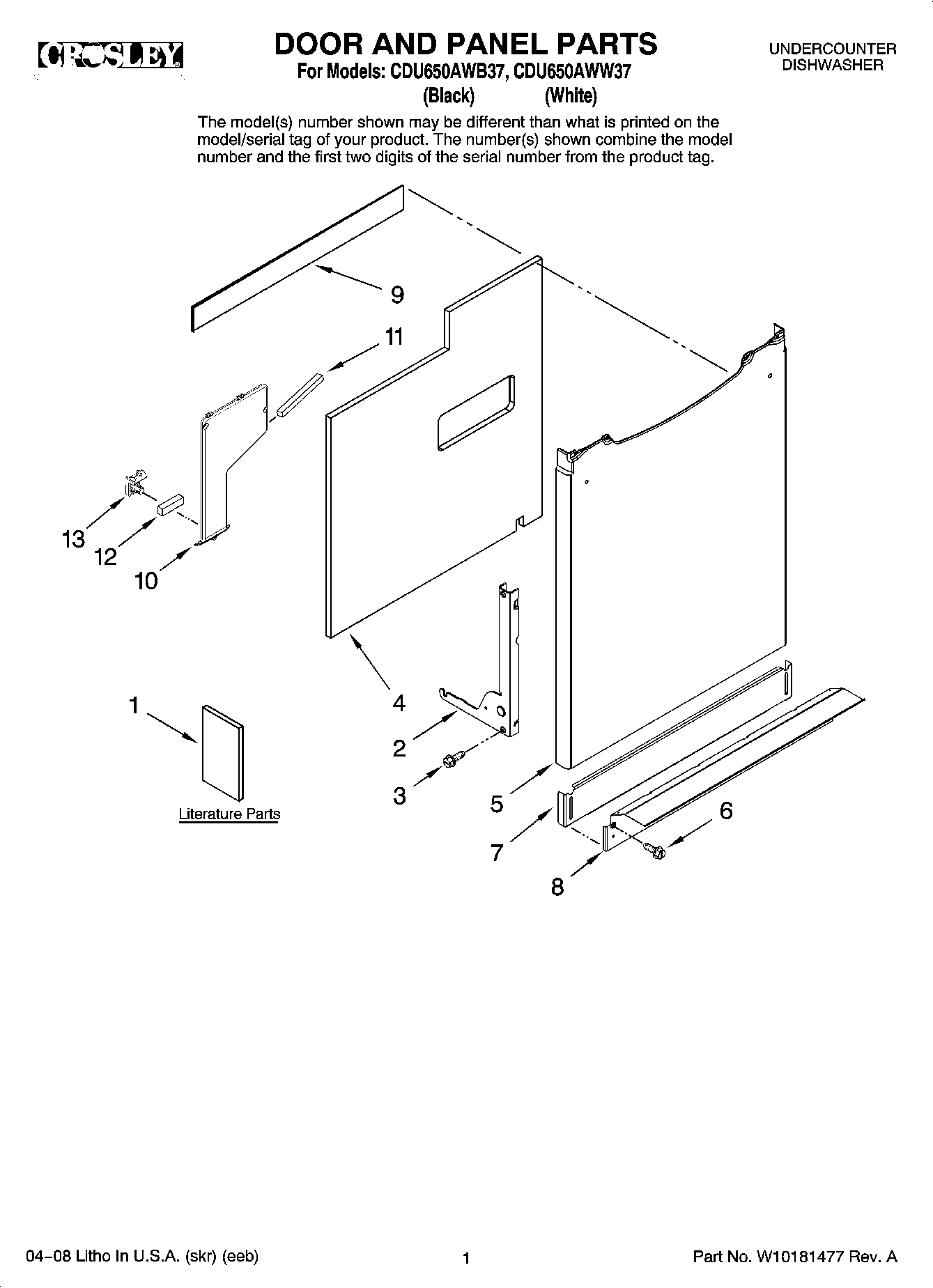

CDU650AWB37 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1Energy Guide
1Instructions, Installation
1Guide, Use & Care
2Bracket, Hinge (Right)
2Bracket, Hinge (Left)
3SCREW
4Pad, Foam
5Panel, Front (White)
5Panel, Front (Black)
6WP6-912366 Whirlpool Dishwasher Screw
6Screw (White)
7Panel, Toe (Black)
7Panel, Toe (White)
8Support, Front (White)
8Support, Front (Black)
9WPW10117748 Whirlpool Dishwasher Insulation Pad
10Liner, Door Secondary
11Strip, Foam (Long)
12WPW10153533 Whirlpool Dishwasher Adjuster
13Bracket, Secondary Door Liner
