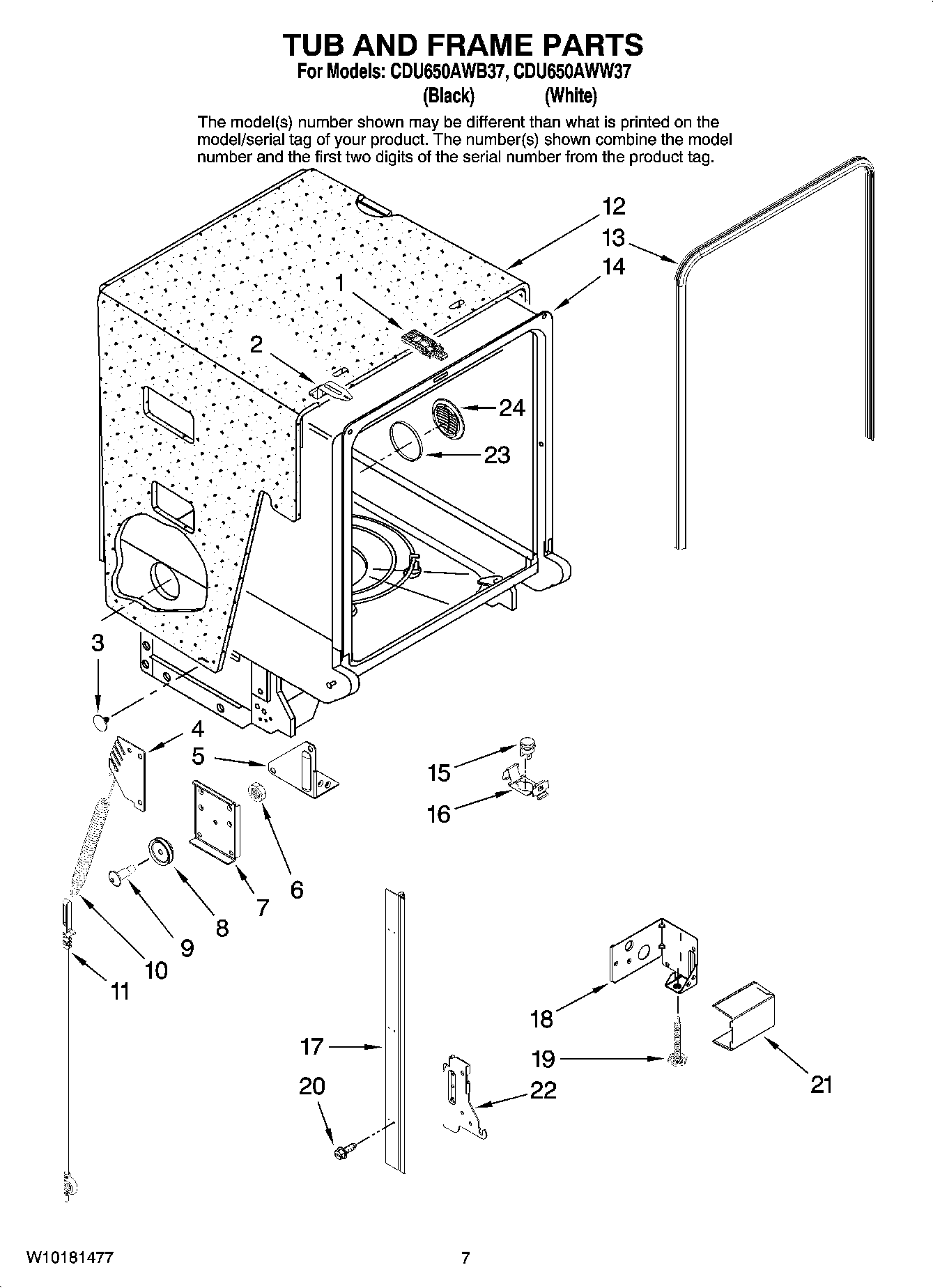

CDU650AWB37 07 – TUB AND FRAME PARTS

Products

PositionProduct
1Strike, Door
2Bracket, Cabinet Mounting
3Fastener
46-918346 Whirlpool Dishwasher Bracket
5Bracket, Support (Left)
6Nut
7Bracket, Cable
8WP99002608 Whirlpool Dishwasher Cable Roller
9WP99003687 Whirlpool Dishwasher Screw
10WP99002598 Whirlpool Door Spring
11WP99003446 Whirlpool Door Cable
12Insulation, Tub
13Seal, Door
14Tub Assembly
15Thermostat, Limiting
16Clip, Thermostat
17Strip, Trim
18Bracket, Junction Box
19WPW10143258 Whirlpool Dishwasher Leg Leveler
20Screw
21Cover, Junction Box
22Support, Hinge (Right)
22Support, Hinge (Left)
236-919082 Whirlpool Dishwasher Seal
24Grill, Air/Water Inlet
