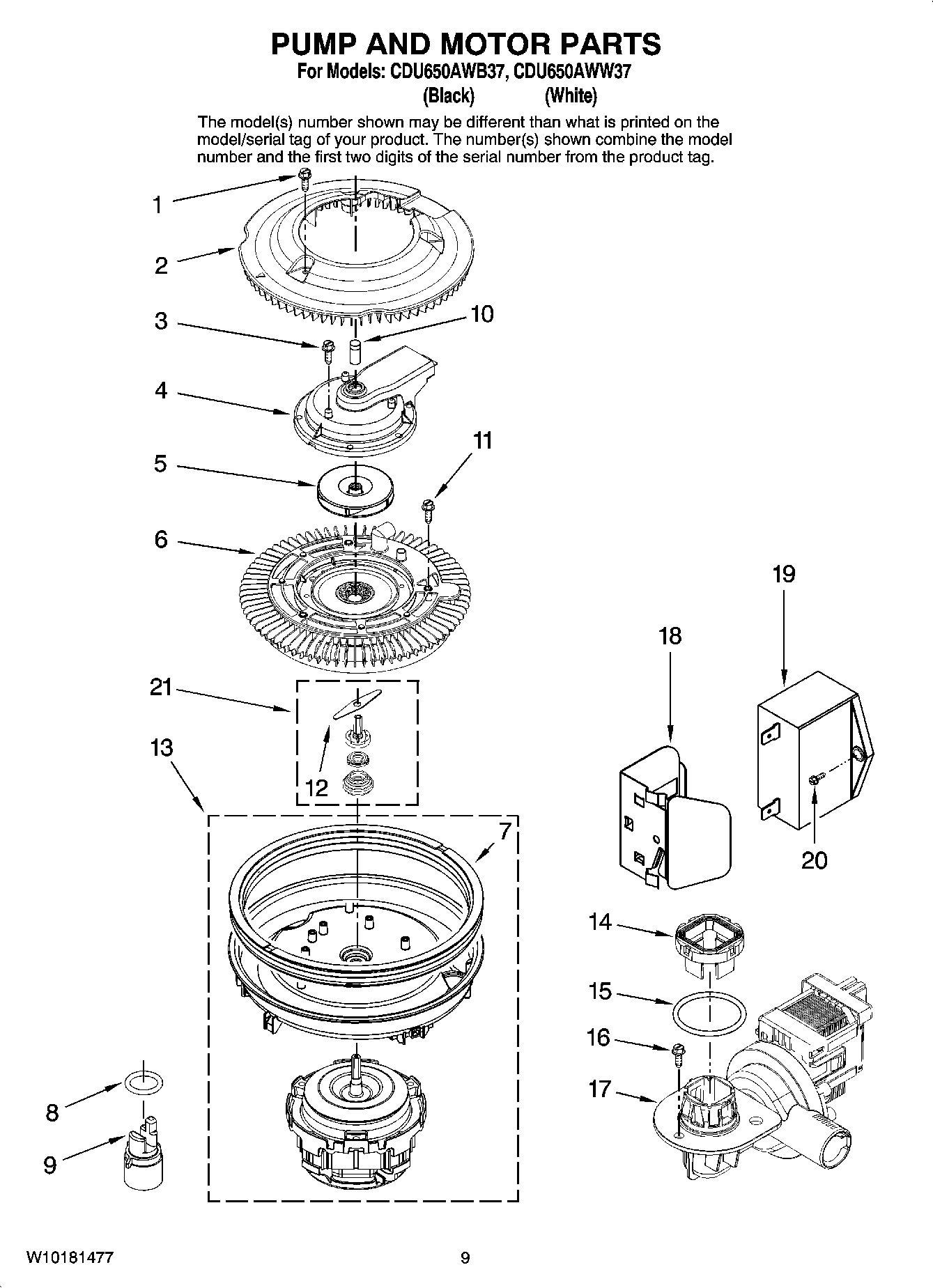

CDU650AWB37 08 – PUMP AND MOTOR PARTS

Products

Position	Product
1	SCREW
2	WPW10166788 Whirlpool Dishwasher Filter Frame
3	Screw
4	Discharge, Housing Assembly
5	WP99002659 Whirlpool Impeller
6	WPW10192799 Whirlpool Dishwasher Accumulator
7	Gasket, Motor Mount
8	99002651 Whirlpool Dishwasher O-RING, TURBIDITY Sensor
9	WPW10120019 Whirlpool Dishwasher Sensor
10	WPL 99003697
11	Screw
12	CHOPPER
13	Wash Motor Assy.
14	Flapper, Drain Pump Inlet
15	O-RING
16	Screw
17	Drain Pump Assy.
18	Shield, Capacitor
19	Capacitor
20	Screw
21	Seal Kit, Metal Chopper Sleeve
