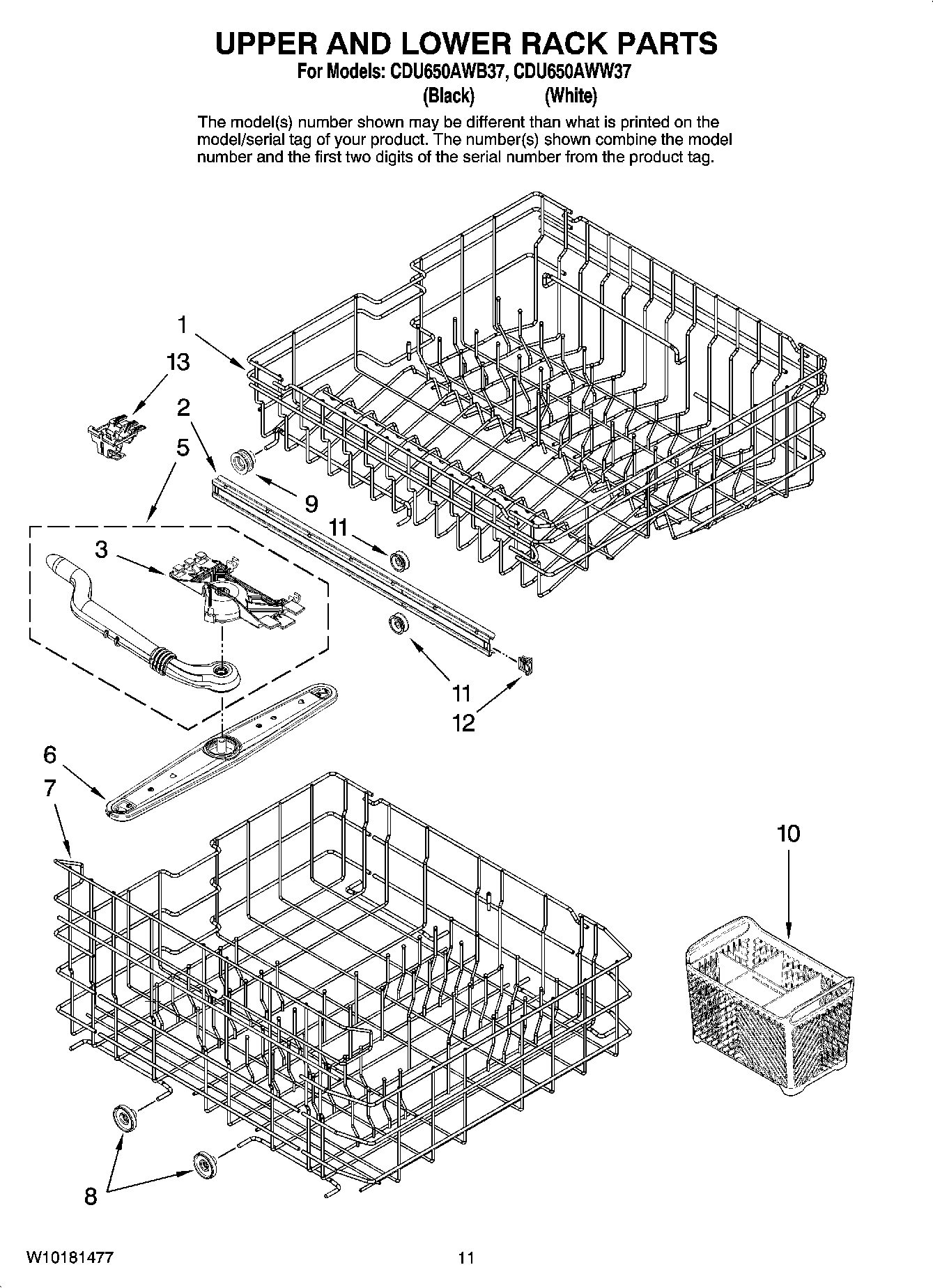

CDU650AWB37 09 – UPPER AND LOWER RACK PARTS

Products

PositionProduct
1Dishrack, Upper
2Rail, Inner Slide
3Clip, Upper Wash Manifold (Front)
5Wash Manifold Assy, (Upper)
6Arm, Wash (Upper)
7Dishrack, Lower (Includes Wheels)
8WP99002780 Whirlpool Lower Wheel Assembly
9WP99002781 Whirlpool Dishwasher Wheel
10WP6-918873 Whirlpool Silverware Basket
11WP99002947 Whirlpool Tub Wheel
12WPW10261227 Whirlpool Dishwasher Stop Assembly
1399002945 Whirlpool Dishwasher Upper Wash Manifold Clip
