CDU650AWW 02 – DOOR

CDU650AWW 02 – DOOR

Written by

in

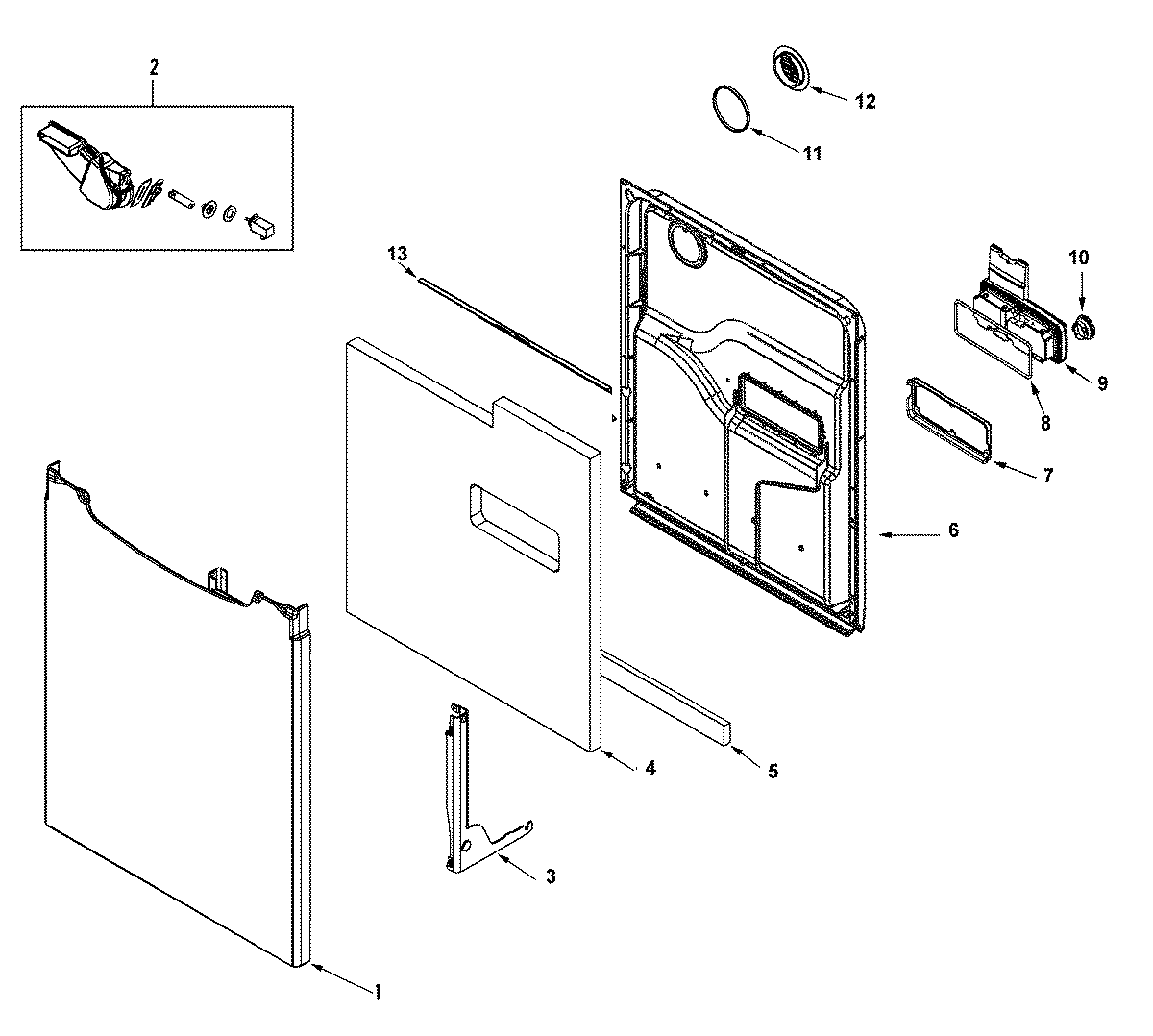

CDU650AWW 02 – DOOR

Products

PositionProduct
1MAY 99002770
2VENT HOUSING ASSEMBLY
3WPW10118637 Whirlpool Dishwasher Bracket
3MAY 99002929
4INSULATION, DOOR
5WPW10117748 Whirlpool Dishwasher Insulation Pad
6DOOR, INNER (W/DAMPER)
6Foam Strip(Long)
6MAY 99003541
6DOOR LINER, SECONDARY
6MAY 99003482
76-918900 Whirlpool Dishwasher Bracket
7SCREW, No.8X1/2 HEX WASHER HEAD
8MAY 99002270
9DETERGENT/RINSE AID DISPENSER
10KNOB, RINSE AID (W/O-RING)
11MAY 99002186
1299002590 Whirlpool Dishwasher Door Vent Bezel
13MAY 99002586
13WPY912620 Whirlpool Dishwasher Screw
