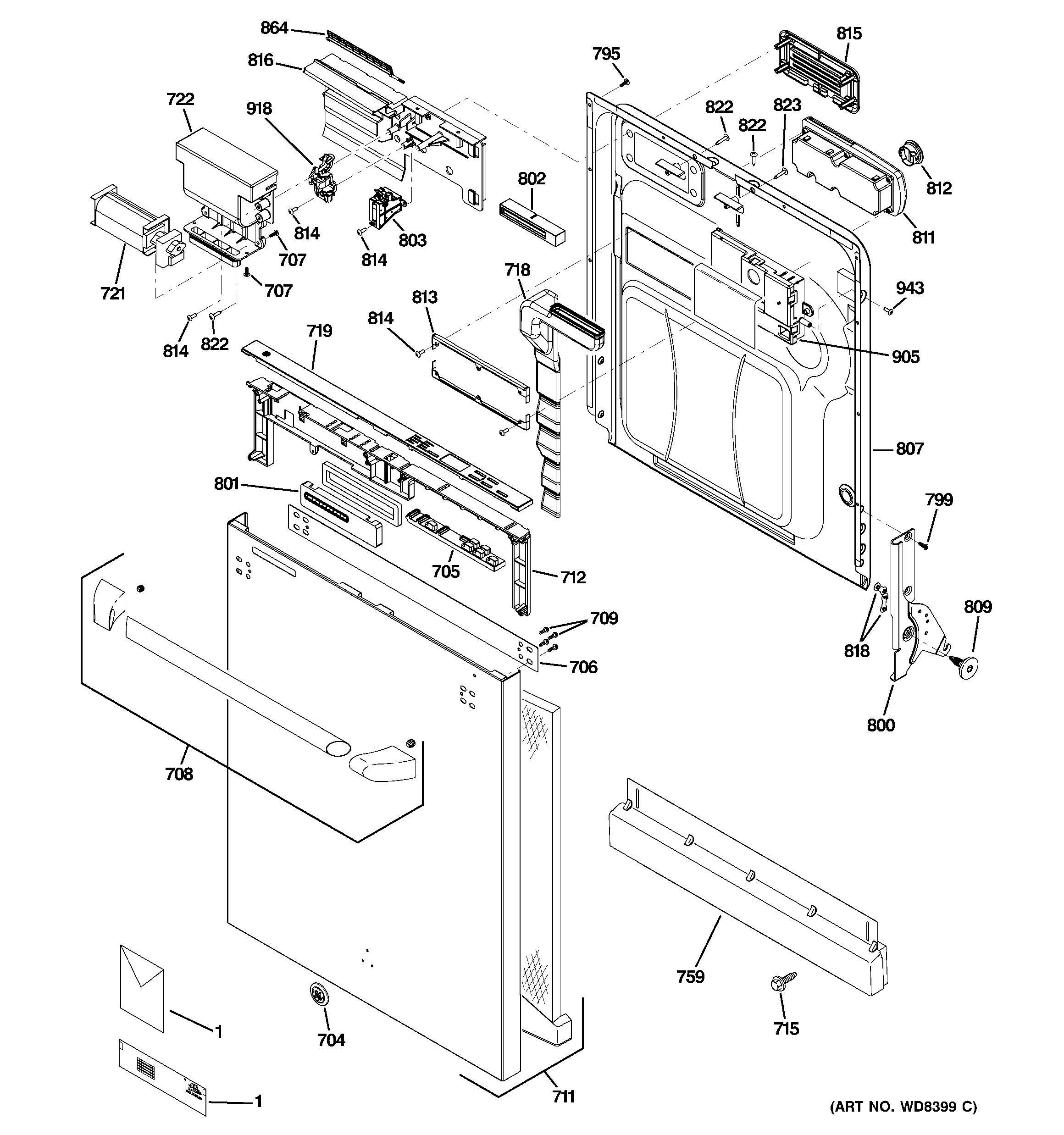

CDWT280V00SS ESCUTCHEON & DOOR ASSEMBLY

CDWT280V00SS ESCUTCHEON & DOOR ASSEMBLY

Written by

in

CDWT280V00SS ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1GEN WD09X10059
1GEN 31-30260
1WD01X10295 GE Dishwasher Hardness Tester Strip
1GEN WD00X946
1WD01X10420 GE Dishwasher Thermostat Service Kit
1GEN WD00X939
1GEN WD09X10058
1WD12X10351 GE Dishwasher Inlet Transition
1GEN 31-30616-3
1GEN 49-55065-1
1WD35X10347 GE Dishwasher O-Ring Kit
1WD12X10353 GE Dishwasher Spray Arm Hub
704HANDLE ASM
704GEN WD13X10038
705WR01X10450 GE Refrigerator Screw Set
709WB01T10063 GE Oven Screw 1/4-TPI Flat Head Hex
711GEN WD34X11727
712GEN WD34X11435
712GEN WD27X10374
718GEN WD12X10190
719COVER ASM,CONSOLE
799WD02X10123 GE Dishwasher Screw 10-32 GXTT FLP.595 S
800WD14X10046 GE Dishwasher Arm Hinge Left Hand Assembly
800GEN WD14X10021
803WD13X10031 GE Dishwasher Latch
809GEN WD02X10084
811WD12X10163 GE Dishwasher Detergent and Rinse Aid Dispenser
812WD12X10122 GE Dishwasher Dispenser Cap
813WD01X10207 GE Dishwasher Bracket Detergent Display
814GEN WD02X10104
815WD12X10127 GE Dishwasher Vent Cover
818WD12X10313 GE Dishwasher Hinge Arm Bearing
864WD12X10067 GE Dishwasher Flapper Vent
905WD21X10517 GE Dishwasher Module Control Assembly Kit
918WD21X10172 GE Dishwasher Vent Driver
943WZ5X219D GE Screw Package
