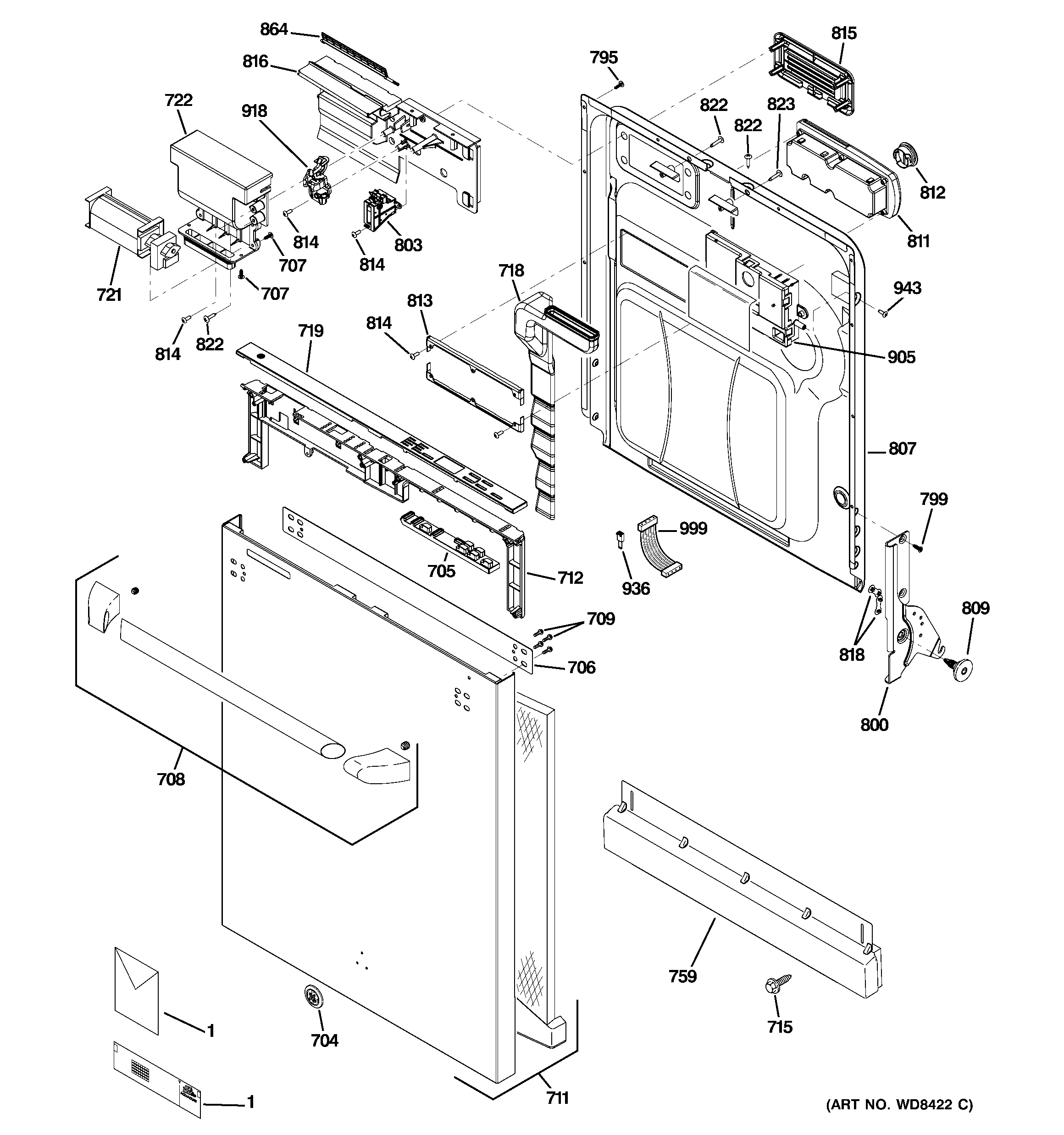

CDWT280V05SS ESCUTCHEON & DOOR ASSEMBLY

CDWT280V05SS ESCUTCHEON & DOOR ASSEMBLY

Written by

in

CDWT280V05SS ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1GEN 31-30284
1GEN 49-55078
1GEN 31-30637
704GEN WD34X11435
705GEN WD01X10539
706HANDLE BRACKET
707WD02X10166 GE Dishwasher 8-18 AB HW 1/2" Stainless Steel Screw
708HANDLE ASM
709WD02X10123 GE Dishwasher Screw 10-32 GXTT FLP.595 S
711GEN WD34X11785
712GEN WD27X10374
715WH02X10126 GE Screw 8-18 B 1HW 1/2 SN
718GEN WD12X10190
719COVER ASM,CONSOLE
721WD26X10056 GE Dishwasher Blower
722WD12X10351 GE Dishwasher Inlet Transition
759TOEKICK ASM
795WD2X444 GE Dishwasher Mechanical Screw
799WB01T10063 GE Oven Screw 1/4-TPI Flat Head Hex
800GEN WD14X10047
800WD14X10046 GE Dishwasher Arm Hinge Left Hand Assembly
803WD13X10031 GE Dishwasher Latch
807DOOR INNER & GASKET
809GEN WD02X10084
811WD12X10163 GE Dishwasher Detergent and Rinse Aid Dispenser
812WD12X10122 GE Dishwasher Dispenser Cap
813WD01X10207 GE Dishwasher Bracket Detergent Display
814GEN WD02X10104
815WD12X10127 GE Dishwasher Vent Cover
816WD12X10383 GE Dishwasher Vent Bracket Assembly
818WD12X10313 GE Dishwasher Hinge Arm Bearing
822WD02X10106 GE Dishwasher Screw 8-18 AB TR 7/8"
823WD02X10093 GE Dishwasher Screw 10-18 X 5/8
864WD12X10067 GE Dishwasher Flapper Vent
905WD21X10517 GE Dishwasher Module Control Assembly Kit
918WD21X10172 GE Dishwasher Vent Driver
936WD21X10485 GE Selector Plug Assembly Model
943WZ5X219D GE Screw Package
999WD01X10557 GE Dishwasher HMI Harness Assembly
