CDWT280V50SS UPPER RACK ASSEMBLY

CDWT280V50SS UPPER RACK ASSEMBLY

Written by

in

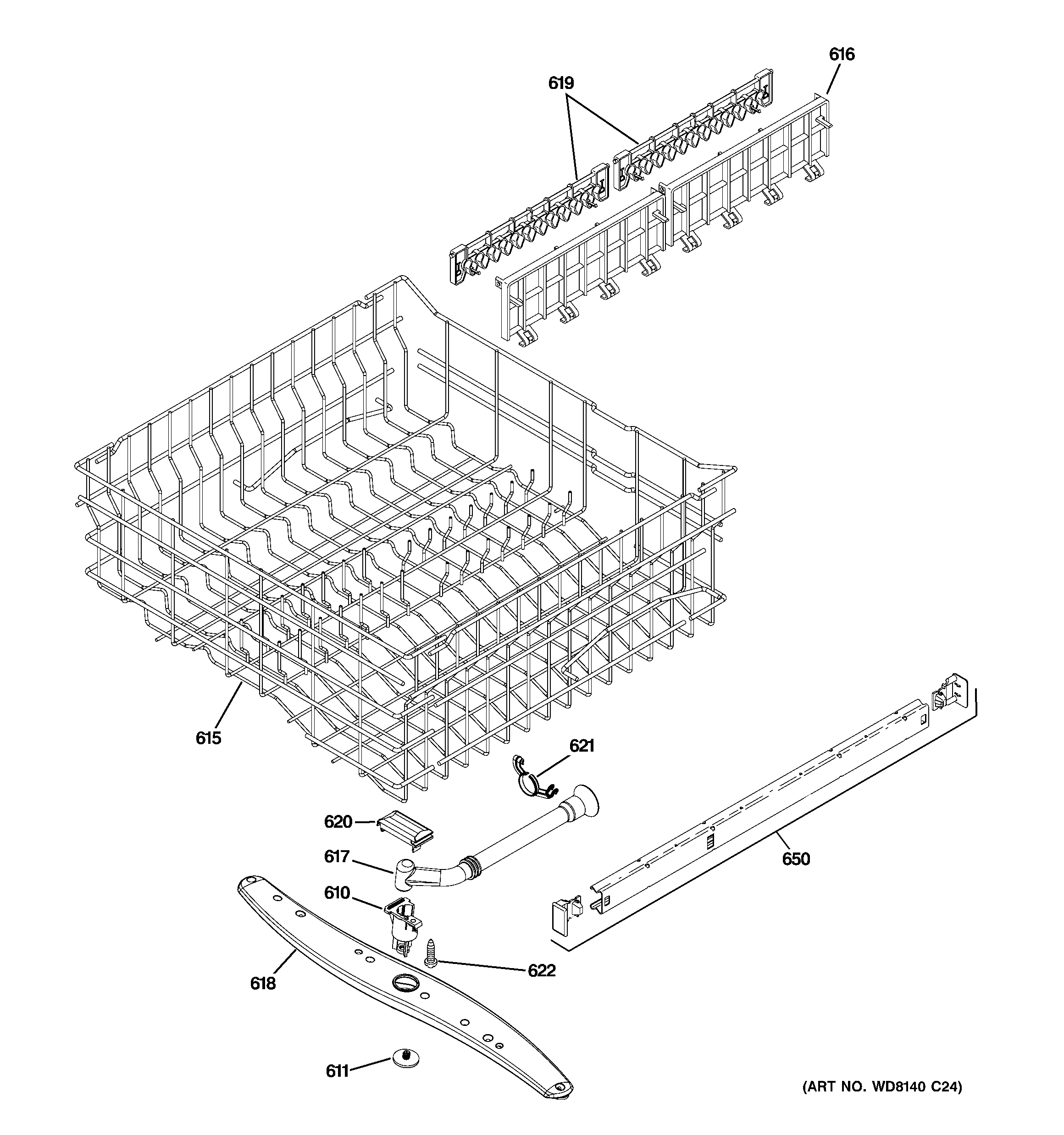

CDWT280V50SS UPPER RACK ASSEMBLY

Products

PositionProduct
610WD12X10353 GE Dishwasher Spray Arm Hub
611WD02X10169 GE Dishwasher Middle Spray Arm Bearing/Screw B-16 Hxw 1/2
615WD28X10413 GE Dishwasher Upper Rack Assembly with Spray Arm
616WD28X10104 GE Dishwasher Multi-Purpose Shelf
617GEN WD12X10110
618WD22X10066 GE Dishwasher Arm Spray Mid Assembly
619WD28X10105 GE Dishwasher Stemware Gripper
620WD12X10405 GE Dishwasher Mid Spray Arm Bracket
621WD12X10114 GE Dishwasher Conduit Carrier Mid
622WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW
650INNER RAIL UPR RACK ASM
