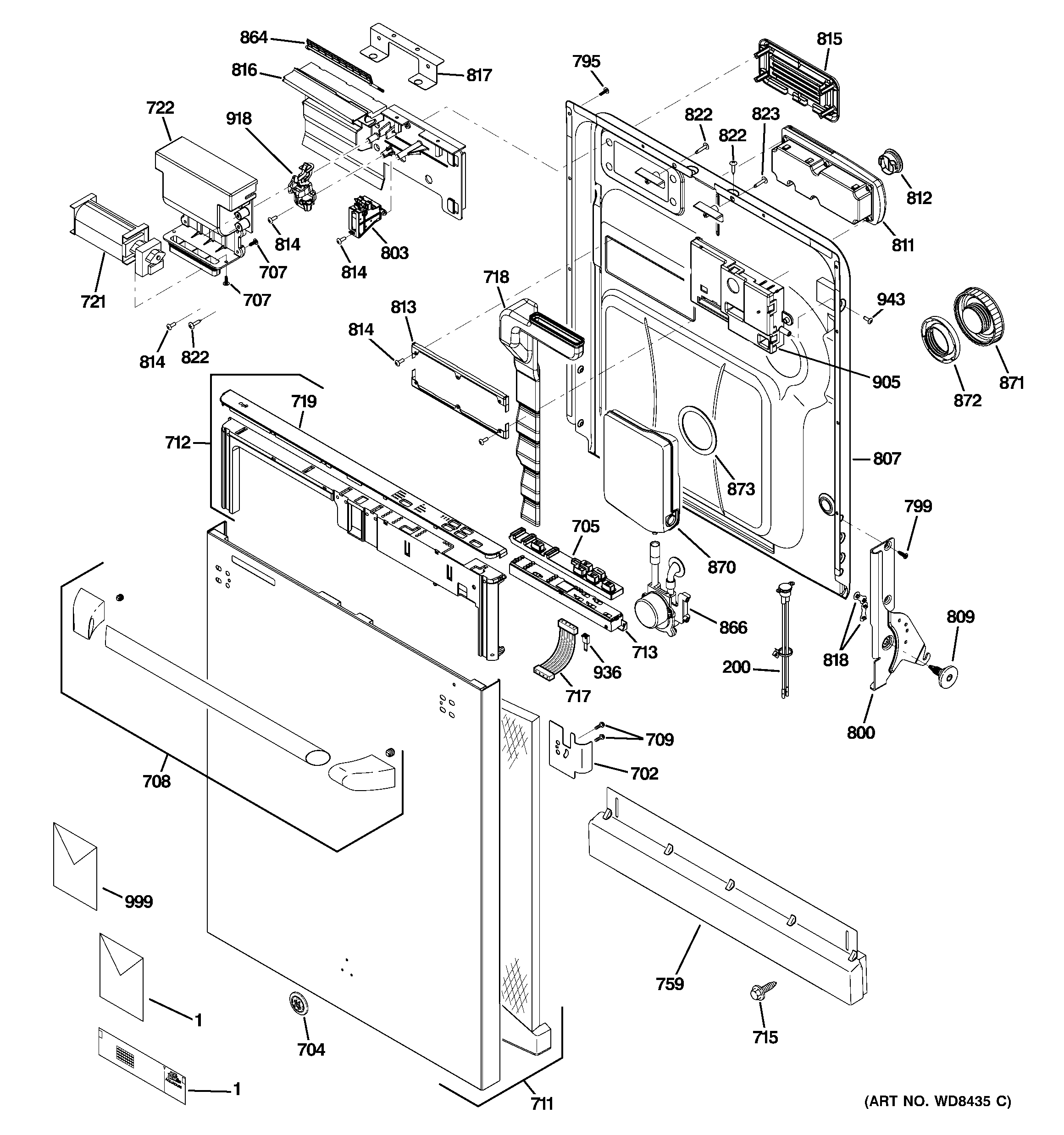

CDWT980V50SS ESCUTCHEON & DOOR ASSEMBLY

CDWT980V50SS ESCUTCHEON & DOOR ASSEMBLY

Written by

in

CDWT980V50SS ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1GEN 31-30284
1GEN 31-30637
1GEN 49-55078
200WD01X10547 GE Dishwasher TCO Kit Assembly
702HANDLE BRACKET
704GEN WD34X11435
705GEN WD01X10539
708HANDLE ASM
709WB01T10063 GE Oven Screw 1/4-TPI Flat Head Hex
711GEN WD34X11786
712CONSOLE & COVER ASM
713GEN WD31X10133
715GEN WD02X10204
717WD01X10557 GE Dishwasher HMI Harness Assembly
718GEN WD12X10190
719COVER ASM,CONSOLE
721WD26X10056 GE Dishwasher Blower
722WD12X10351 GE Dishwasher Inlet Transition
759TOEKICK ASM
795GEN WD02X10203
799WD02X10166 GE Dishwasher 8-18 AB HW 1/2" Stainless Steel Screw
800GEN WD14X10041
800GEN WD14X10040
803WD13X10031 GE Dishwasher Latch
807DOOR INNER & GASKET
811WD12X10163 GE Dishwasher Detergent and Rinse Aid Dispenser
812WD12X10122 GE Dishwasher Dispenser Cap
813WD01X10207 GE Dishwasher Bracket Detergent Display
814GEN WD02X10104
815WD12X10127 GE Dishwasher Vent Cover
816WD12X10383 GE Dishwasher Vent Bracket Assembly
817WD01X10551 GE Dishwasher Latch Bracket
818WD12X10313 GE Dishwasher Hinge Arm Bearing
822WD02X10106 GE Dishwasher Screw 8-18 AB TR 7/8"
823SCR 8-18 AB OV .655
864WD12X10067 GE Dishwasher Flapper Vent
866WD12X10384 GE Dishwasher Detergent Dispensing Assembly
870GEN WD35X10361
871WD12X10282 GE Dishwasher Cap Assembly
872WD02X25438 GE Dishwasher Lock Nut Assembly
873GEN WD08X10060
905WD21X10517 GE Dishwasher Module Control Assembly Kit
918WD21X10172 GE Dishwasher Vent Driver
936MODEL SELECTOR PLUG ASM
943WZ5X219D GE Screw Package
