CE11000AAV 02 – DOOR/DRAWER – Aparts

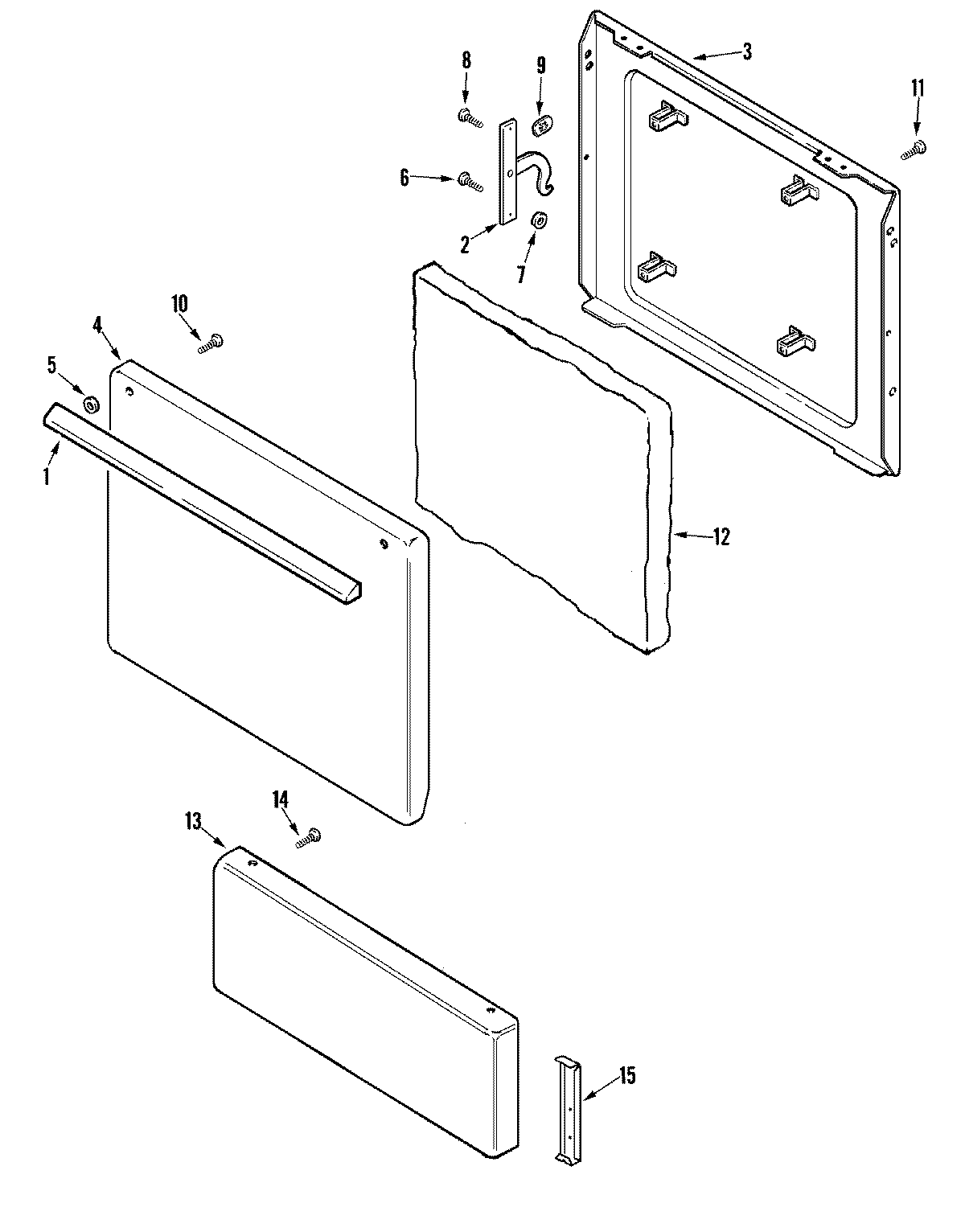

CE11000AAV 02 – DOOR/DRAWER

Products

Position	Product
1	MAY 74010477
2	MAY 3418A046-34
2	MAY 3418A047-34
3	MAY 2402W102-19
4	MAY 2401W059-71
5	MAY 74005232
6	MAY 74004004
7	MAY 7103P072-60
9	W10080180 Whirlpool Nut
10	WP74005233 Whirlpool Screw
11	WP7101P126-60 Whirlpool Screw
12	MAY 74009878
13	MAY 74003275
14	WP98008544 Whirlpool Screw Assembly
15	MAY 74003277
15	SCREW
