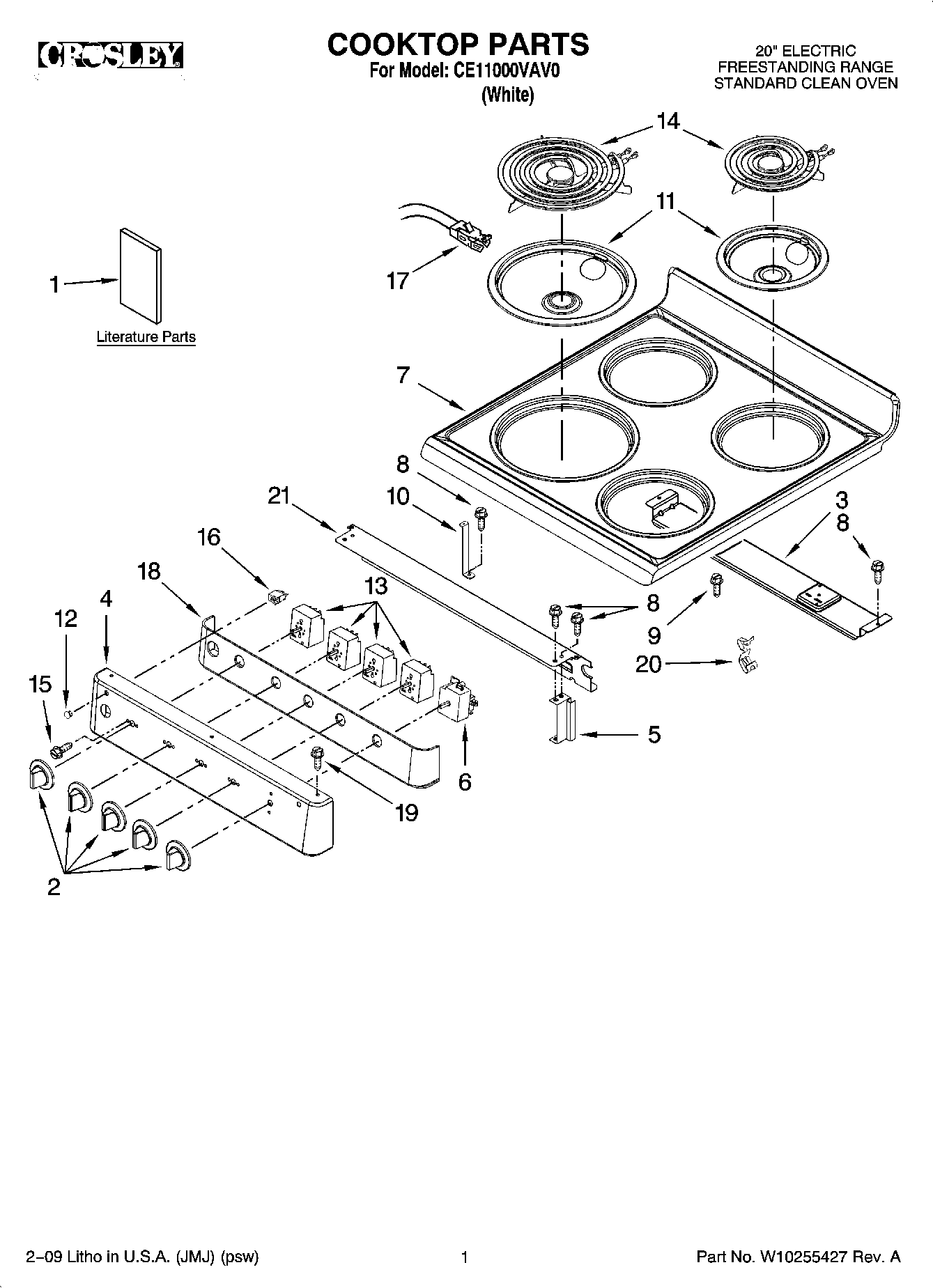

CE11000VAV0 01 – COOKTOP PARTS

Products

Position	Product
1	Use & Care Guide
1	Tech Sheet
1	Insallation Instructions
1	Installation Instr (Template)
1	Safer Cooking Tips
2	WPW10183393 Whirlpool Knob
3	Support, Burner
4	Panel, Manifold
5	Bracket, Support
6	WP74009277 Whirlpool Thermostat Assembly
7	W10175582 Whirlpool Cooktop
8	W10837731 Whirlpool Screw Assembly
9	SCREW
10	Bracket, Cooktop
11	DRIP BOWL 8" W/HOLE CHROME
11	WPW10196406 Whirlpool 6" Chrome Drip Bowl
12	W11690131 Whirlpool Light Lens
13	WPW10179654 Whirlpool Refrigerator Infinite Switch
13	SWITCH-IND
14	WP9761346 Whirlpool Stove Surface Burner Element
14	WPW10345407 Whirlpool Surface Element
15	WP3400882 Whirlpool Screw
16	W10852510 Whirlpool Indicator Light
17	814399 Whirlpool Receptacle Kit
18	Foil, Panel
19	SCREW
20	98005642 Whirlpool Clip
21	Shield, Control
