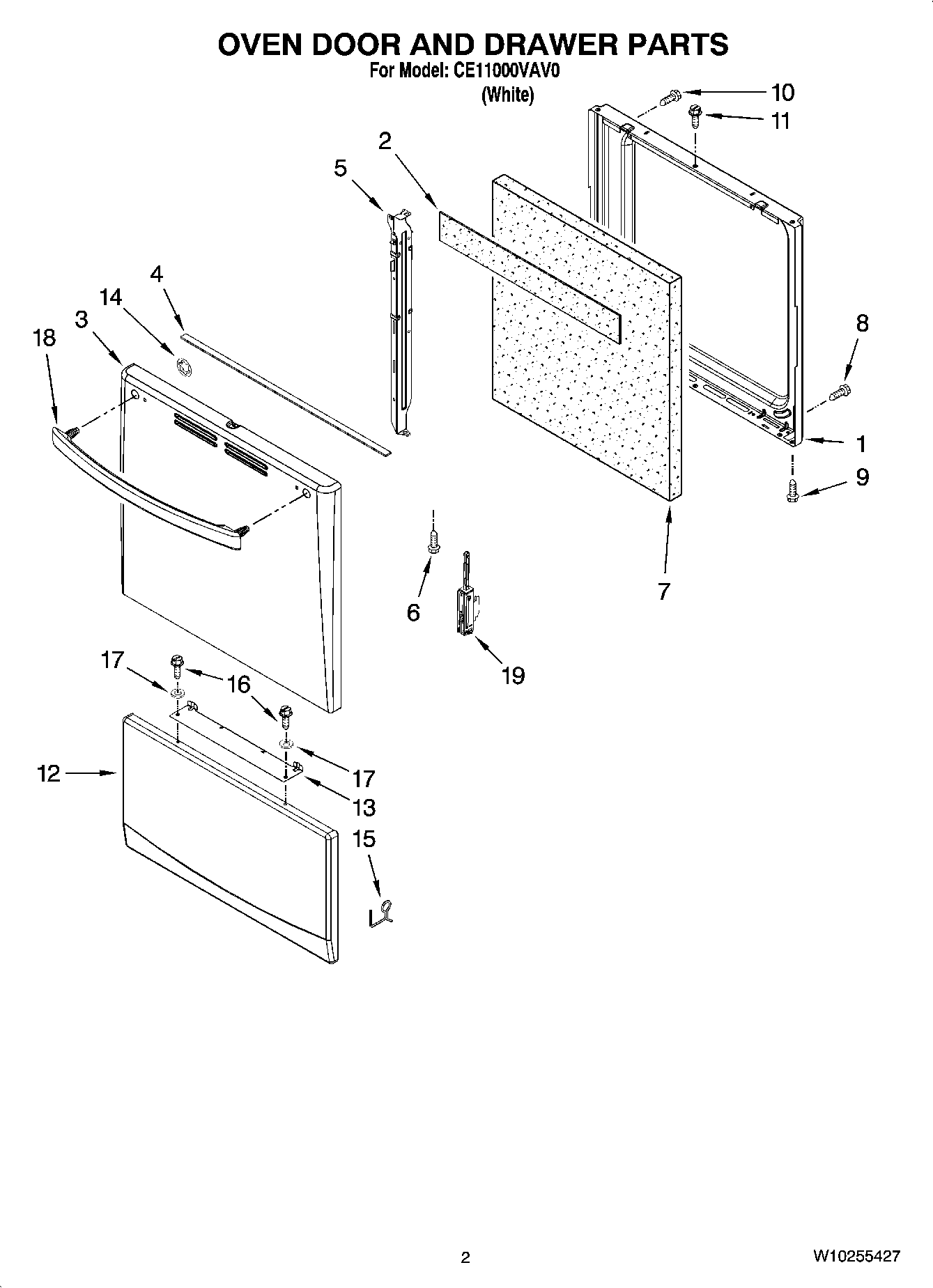

CE11000VAV0 02 – OVEN DOOR AND DRAWER PARTS

CE11000VAV0 02 – OVEN DOOR AND DRAWER PARTS

Written by

in

CE11000VAV0 02 – OVEN DOOR AND DRAWER PARTS

Products

PositionProduct
198010414 Whirlpool Door Liner
2Retainer, Insulation (7)
398009525 Whirlpool Door Panel
4Seal, Oven Door
598004629 Whirlpool Oven Retainer
598004564 Whirlpool Oven Retainer
6WP59002061 Whirlpool Microwave Screw
7Insulation, Door
8W11206744 Whirlpool Screw
9WP3400805 Whirlpool Screw Assembly
10SCREW
113196166 Whirlpool Screw
1298009307 Whirlpool Oven Drawer Panel
13W10208117 Whirlpool Mounting Bracket
14WP98004650 Whirlpool Nut
156610364 Whirlpool Oven Clip
16W10837731 Whirlpool Screw Assembly
17W10216805 Whirlpool Washer
18WP98004947 Whirlpool Door Handle
1998017873 Whirlpool Oven Door Hinge
