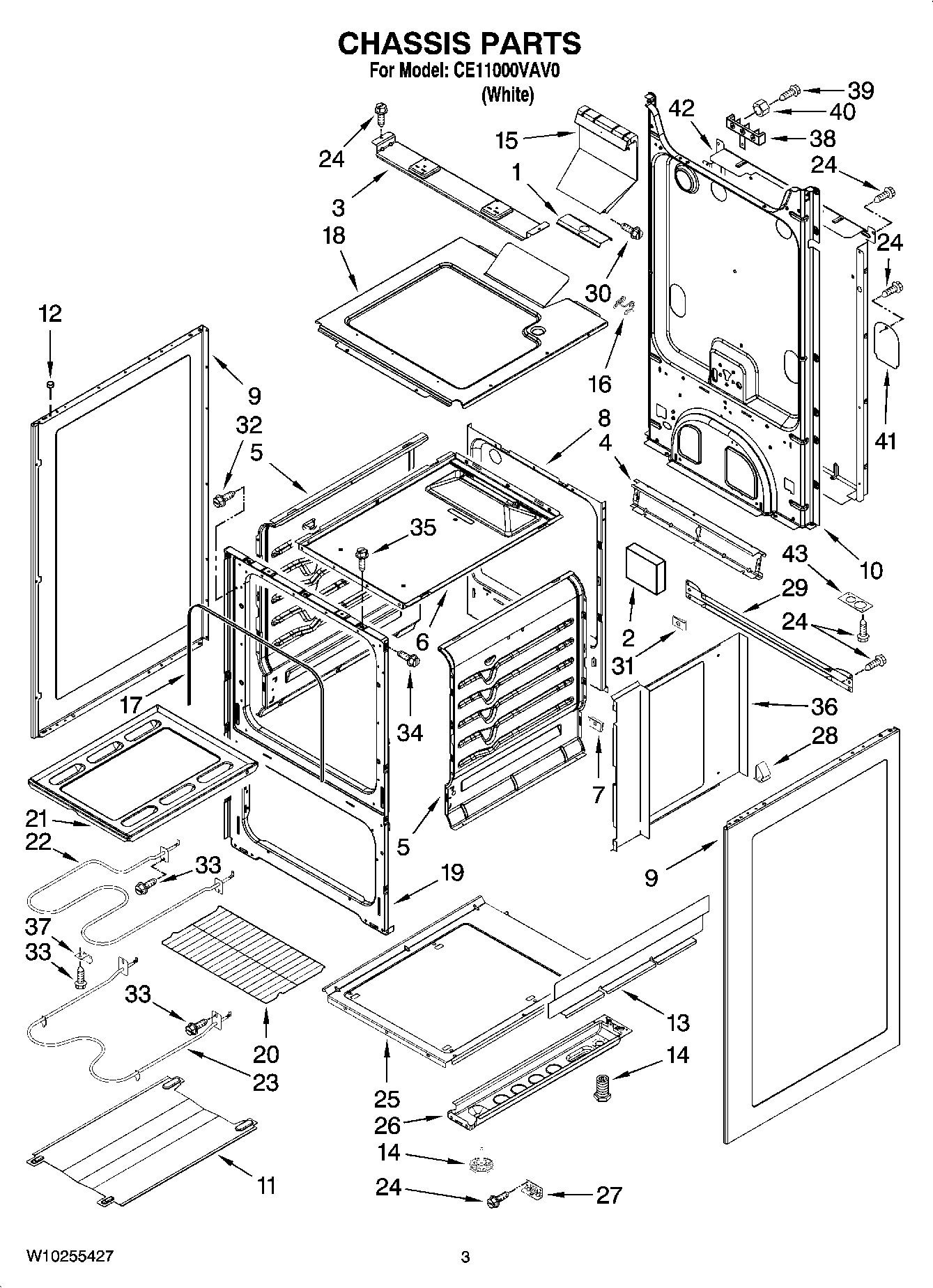

CE11000VAV0 03 – CHASSIS PARTS

Products

Position	Product
	W11684896 Whirlpool Insulation
	W11684784 Whirlpool Insulation
	W11684895 Whirlpool Insulation
	W11684778 Whirlpool Insulation
	Insulation
	98004294 Whirlpool Insulation Wire
1	Cover, Flue Box
2	COUNTER WEIGHT
3	Support, Burner
4	98012912 Whirlpool Support
5	98004452 Whirlpool Oven Side
5	98004451 Whirlpool Oven Side Panel
6	98004448 Whirlpool Burner Box
7	CLIP, OVEN BOTTON
8	W10175662 Whirlpool Rear Cover
9	W11501467 Whirlpool Side Panel
10	W10166296 Whirlpool Rear Cover
11	98015099 Whirlpool Oven Burner Baffle
12	W10207167 Whirlpool Bumper
13	98007191 Whirlpool Oven Heat Shield
14	WPW10058460 Whirlpool Appliance Levelling Leg
14	WP3196037 Whirlpool Leveling Foot
15	WPW10116396 Whirlpool Flue Box
16	98013690 Whirlpool Clip
17	W10170595 Whirlpool Gasket Door
18	W10208539 Whirlpool Burner Box
19	98006752 Whirlpool Front Frame
20	W11223841 Whirlpool Oven Rack
21	W10192836 Whirlpool Oven Bottom Pan
22	W10170571 Whirlpool Broil Element
23	WPW10163272 Whirlpool Bake Element
24	W10837731 Whirlpool Screw Assembly
25	98003945 Whirlpool Burner Baffle
26	98003830 Whirlpool Rail Base
27	98007126 Whirlpool Oven Stand Bracket
28	CLIP, COOKTOP
29	98010054 Whirlpool Oven Support
30	Screw
31	98009179 Whirlpool Oven Nut
32	WP98008545 Whirlpool Screw
33	SCREW
34	WP3400805 Whirlpool Screw Assembly
36	Baffle, Side (2)
37	98004973 Whirlpool Oven Support Element
38	W10181453 Whirlpool Terminal Block
39	W11684512 Whirlpool Screw
40	WP112432 Whirlpool Nut Assembly
41	W10209692 Whirlpool Black Cover
42	W10208152 Whirlpool Rear Cover
43	Plate, Conduit
